17 Pcs Thread Repair Kit M10x1.25 Stainless Steel Rethreading Tap Set for Female Thread

Features 1、The thread repairing set is placed in the screw hole of the workpiece such as aluminum alloy to form a standard internal thread with high strength, wear resistance and high accuracy. 2、In the event of a threading error or repair of a damaged internal threaded hole, the threaded hole can be economically and effectively repaired by using a threaded threaded sleeve as a means of repair. The same screws can also be used after repair. 3、You can also uses this thread insert to transfer inch thread to mm thread which is convenient and fast. 4、Typical applications: parts threaded hole sliding repair, such as injection molding machine template thread hole repair, high voltage switchgear, microwave communication, auto parts, air separation equipment, radiators, etc.; imported equipment or mechanical inch thread damage, due to spare parts supply problems and need to be changed to mm thread. 5、All accessories are integrated in a box for convenient transportation and store.

Specification

Item Type:Thread Repair Sheath Kit

Material:Stainless Steel

Thread Insert Size:M10X1.25 Length:2D

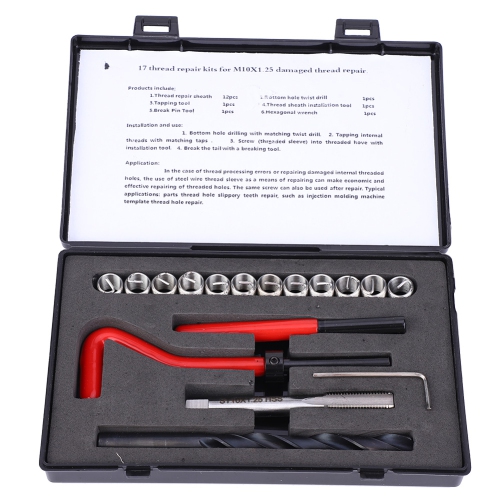

Package List

1 x Spiral Drill

1 x Screw Tap

1 x Wrench

1 x Break Pin Tool

1 x Hex Wrench

12 x Thread Repair Insert

Note Drill holes using a matching drill bit.Use wire threaded (special) tap tapping, the tapping depth must exceed the wire screw sleeve mounting length.Insert the wire screw into the mounting wrench with the tail down. Turn the wrench handle to screw the wire screw into the threaded hole.Use a break pin tool to align the mounting handle (tail) with a hammer to strike the punching tool and the tail handle can be removed.When there is a problem with the installation of the threaded screw sleeve, (such as a jumper), the threaded sleeve can be taken out by the wire threading tool.
