VM740ML Dual Moving Magnet Cartridge

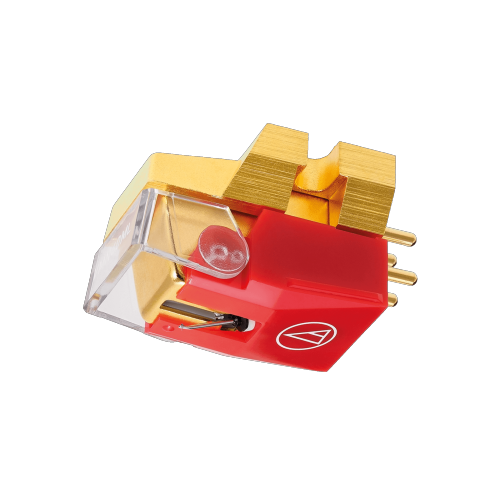

Audio-Technica VM740ML Dual Moving Magnet Cartridge

Model: VM740-ML
Web Code: 18387107
Sold and shipped by

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

The VM740ML MicroLine stylus cartridge is a premier 700 Series model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM740ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's MicroLine stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can't match. The stylus's multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

Features * VM dual magnet cartridge with MicroLine stylus

* Aluminum tapered cantilever

* Paratoroidal coils improve generating efficiency

* Center shield plate between the left and right channels reduces crosstalk

* Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield

Specifications * Frequency Response: 20-27,000 Hz

* Channel Separation: 28 dB (1 kHz)

* Vertical Tracking Angle: 23°

* Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

* Stylus Construction: Nude square shank

* Recommended Load Impedance: 47,000 ohms

* Coil Impedance: 2,700 ohms (1 kHz)

* DC Resistance: 800 ohms

* Coil Inductance: 460 mH (1 kHz)

* Output Voltage: 4.0 mV (at 1 kHz, 5 cm/sec)

* Output Channel Balance: 1.0 dB (1 kHz)

* Stylus Shape: 2.2 x 0.12 mil MicroLine

* Cantilever: Aluminum tapered pipe

* Static Compliance: 40 x 10-6 cm/dyne

* Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)

* Mounting: Half-inch

* Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

* Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set

* Mounting Feature: Half-inch mount

* Recommended Load Capacitance: 100-200 pF

* Stylus Size: 0.12 x 2.2 mil

* Weight: 8.0 g (0.3 oz)

* Type: VM Type
