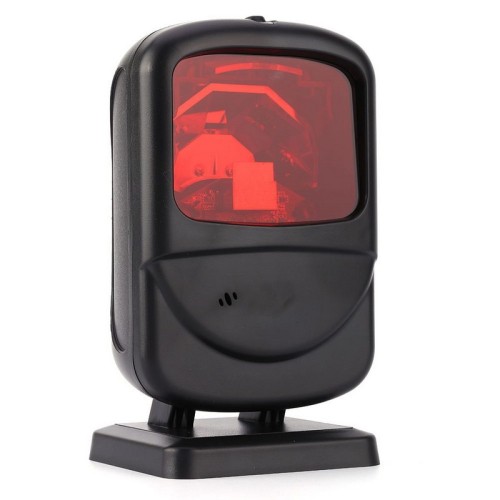

axGear USB Desktop Laser Barcode Scanner Counter Top Bar Code Scanner

Model: BAR-SCAN-TOP
Web Code: 12316166
Sold and shipped by | 3.7 seller rating (3,285 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

Overview

The desktop barcode scanner having omni directional scan pattern. It has a patented single circuit board construction for maximum durability and industry-leading working range of 13 mil 100% UPC bar codes from 0 in. to over 10.3 in. This scanner support all major 1D barcode.This barcode scanner uses imager image sensor that deliver excellent scanning performance with superior scanning speed and a wide data capture range. It provides superior motion and angular tolerance so that codes can be ca

What's included:

  • 1 x Desktop Barcode Scanner, 1 x USB Cable

1D Desktop Omni directional Laser Barcode Scanner The desktop barcode scanner having omni directional scan pattern. It has a patented single circuit board construction for maximum durability and industry-leading working range of 13 mil 100% UPC bar codes from 0 in. to over 10.3 in. This scanner support all major 1D barcode.

This barcode scanner uses imager image sensor that deliver excellent scanning performance with superior scanning speed and a wide data capture range. It provides superior motion and angular tolerance so that codes can be captured faster, and there is no need to pause during scans. Specification:

Light resource: Visible light source 650nm + 10nm

Scanning Speed: 1500scan/sec

Scanning lines: 20lins

Interface: USB RS232

Resolution: Depth of Field

Mark  Metric Unit   Imperial Unit

5mil(Code 39), 0-9.1cm, 0-3.59in

7.5mil(Code 39), 0-15cm, 0-5.91in

10mil(Code 39), 0-17.5cm, 0-6.895in

13mil(UPC/EAN), 0-27cm, 0-10.638in,

26mil(Code 39), 0-30cm, 0-11.82in

Port USB RS232

DC Characteristics

Voltage: DC+5V±5% Or +3.3V±5%

Currency loss ±10%

Power On Currency: 60mA

Standby Currency: 40mA

Working Currency: 80mA

Package Included:

1 x Desktop Barcode Scanner

1 x USB Cable

Scanning Type
Flatbed
Connectivity
USB
Scanning Method
Laser
Scan Speed
1500 Scans/sec

Dimensions

Weight
0.03 kg
