Costway MMA TIG ARC IGBT Welding Machine 200 AMP Welder DC Inverter LED Display

Model: EP23350
Web Code: 13364903
Sold and shipped by | 3.7 seller rating (4,442 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

Overview

Our welding machine, which is made of high-class nylon panel as well as delicate treatment, integrates comfortable grip, easy operation and high precision, is particularly suitable for low carbon steel, stainless steel, alloy steel etc. uses imported IGBT and fast recovery diodes as main electric components. It is supplemented by a specially developed main PCB board.

Feature

Appearance design patent, reinforced nylon panel, wear resistant and flame resistance

Compact and portable design, easy to operate

Plastic handle makes it easy to carry

Adopts IGBT module technology, energy-saving and stable heat dissipation

40% high duty cycle, lower cost operation, superior output

Convenient quick connection for the output makes it quick, safe, simple and stable

Digital LED display when use, start with VRD

Featuring controlling knob

Hot striking ARC current is adjustable, greatly improve the ARC-starting function

Start ARC easily, stable welding ARC, anti-stick, deep weld pool and beautiful welding shape

Efficient air-ejection and heat-ejection technology

Over-heating protection, over-voltage protection, over-current protection

Allow TIG welding

Excellent arc properties and solution droplet transfer

Specification

Color: As pictures show

Weight: About 15 lbs

Voltage: AC 110V / 220V, 50 - 60H

No load voltage (V): 80V

Rated input capacity (KVA): 9.6

Rated input current (A): 42

Output current range (A): 10 - 120 / 200

Rate duty cycle: 30% @ 200A

Duty cycle at 77℉: 40%

Duty cycle at 104℉: 30%

Output efficiency (%): ≥85%

Power factor: 0.76

Working temperature: 14℉-104℉

Transportation and storage: -13℉-131℉

Relative air humidity: 104℉≤50%, 68℉≤90%

Cooling way: Fan & air

Ip grade: IP21

Insulation class: F

Insulated grade: H

Cooling type: AF

Electrode size: 0.07" - 0.2"

Overall dimensions: 13.4" x 5.1" x 8.7" (L x W x H)

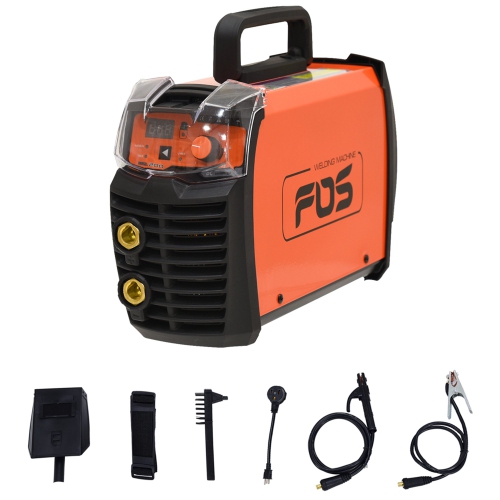

Package included:

1 x Welding machine

1 x Operator's manual

1 x Electrode holder

1 x Earth clamp

1 x Face mask with filter

1 x Brush & hammer

1 x 220V - 110V adaptor with 12" cable
