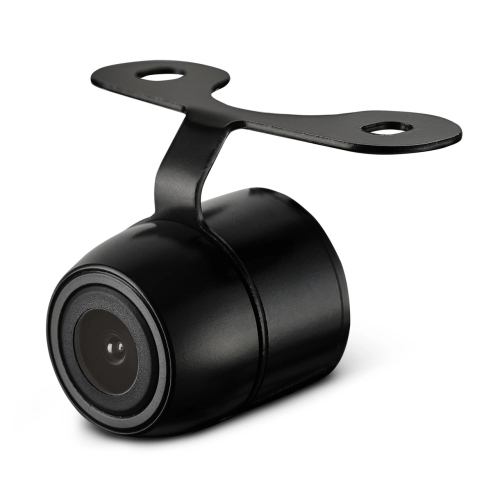

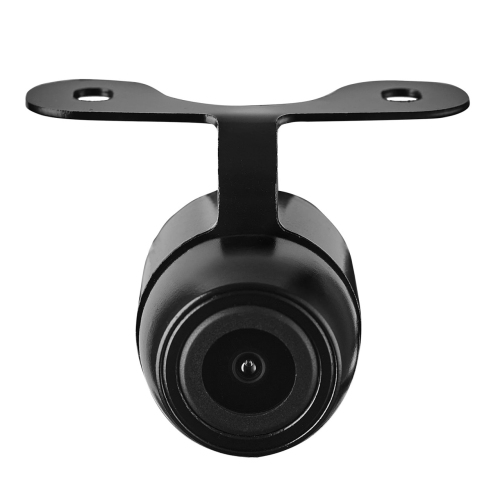

About: DS18 AHDRC Universal Camera for Front / Rear Position Selectable with Adjustable AHD / CVBS System
Universal Camera — Front or Rear View | AHD/CVBS Compatible
The AHDRC offers total visibility. Use it as a front, rear, or interior cam — and switch between AHD and CVBS modes for seamless compatibility with your system.
Wide-Angle Clarity, Day or Night
See more of the road (or your driveway) with a 150° wide-angle lens. Advanced night vision ensures your view is always clear, detailed, and reliable.
Built for the Real World
The AHDRC is housed in a tough aluminum shell with a sleek black finish and a rugged IP68 waterproof rating — so you can see in any driving condition.
Smart Mounting, Seamless Setup
Choose between flush or surface mount options for a perfect fit on any vehicle. Dial in the exact positioning you need with a 45° adjustable viewing angle.
Everything You Need
The AHDRC includes everything needed for an easy installation. Just mount, plug in, and ride out.
The AHDRC brings DS18 clarity to every drive — front, back, or anywhere in between.
Product Highlights:
Back Up Camera
Surface Mount ~ Front or Rear
High Resolution / Low Illumination
Full Color, Parking Guide
AHD / CVBS Systems
Water Proof IP68
Specifications:
SKU: AHDRC
Camera Type: 12V AHD/CVBS
Mounting Type: Universal Surface or Flush mount
Location Mode (Front/Rear): Front or Rear
Adjustable Modes: Front/Rear, Parking Lines ON/OFF, AHD/CVBS
Parking Guide Lines: Selectable (ON-OFF)
Night Vision: Yes
Lens Material: Glass-Plastic Hybrid (1G3P)
Housing Material / Color: Aluminum / Black
Adjustable Mount Angle: Yes up to 45°
Waterproof Rating: IP68
Wiring Length (Video): 20ft / 6m
Wiring Length (Power): 3ft / 1m
Lens Viewing Angle: 150°
Image Sensor Size: 1/4.5"
TV System: AHD 25 / NTSC
Effective Pixels: 1080x720 (AHD) / 640x480 (CVBS)
Resolution: Up to 720P
Minimum Illumination: 0.1 lux
Video Output: 1.0 Vp-p / 75 ohms
Auto Gain Control (AGC): Yes
Black Light Compensation (BLC): Yes
S/N Ratio: >48dB
White Balance: Yes
Electronic Shutter: Electronic Rolling Shutter
Current Consumption: 80mA
Operating Voltage: 8-15V
Operating Temperature: -4°F~140°F / -20°C~60°C
Storage Temperature: -22°F~158°F / -30°C~70°C
Measurements:
Overall Length: 1" / 27mm
Overall Diameter: 0.88" / 22.5mm
Mounting Hole Diameter: 0.7" / 18mm
Accessories Included:
Bracket for Surface Mounting: 1pc
Double-Side Foam Tape for Surface Mounting: 1pc
Screws for Surface Mounting: 2pcs (PWA 3x10mm)
Hole Saw for Flush Mounting: 1pc (22.5mm)
Ring for Flush Mounting: 1pc
RCA Wire: 1pc (20ft/6M)
Cable Ties: 4pcs (3x150mm)
