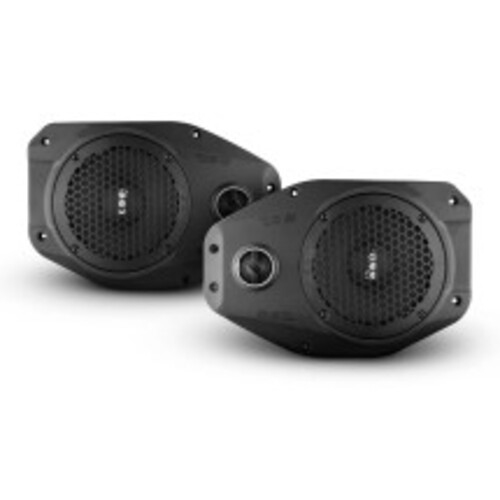

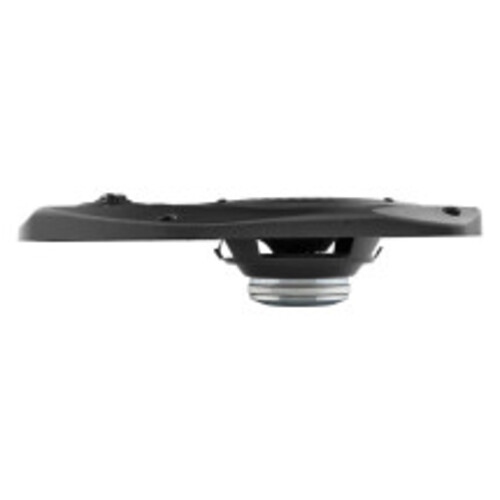

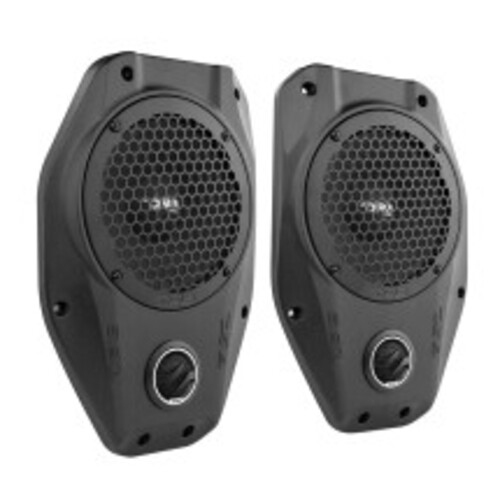

About: DS18 JL-SB6 Loaded 6.5" Plug & Play Overhead Bar System for Select Jeep Vehicles (PRO-JP6NEO and ZXI-T1 Included)
Turn your JL/JLU/JT Jeep Wrangler into an audio beast with DS18’s JL-SB6 soundbar upgrade. Engineered for power, precision, and durability, the JL-SB6 has a powerful 6.5” neodymium midrange speaker and a crisp 1” dome tweeter, for supreme clarity, depth, and volume.
The new grills enhance the rugged look of your Jeep elevating this systems show-quality sound to a whole new level. Coming in a set of two for both the left and right sides, your entire ride gets a matching, badass upgrade.
Crafted from heavy-duty, injection-molded plastic, this soundbar can handle the roughest terrains while cranking out concert-level audio. This system requires cutting of the existing sound bar for installation- but plug-and-play connectors, mounting plates, and cutting templates make installation easy in your Jeep Wrangler JL/JLU and Gladiator JT models. Ready to take it further? Hook up an external amp for bone-rattling sound that will make your off-road adventures feel like an audio thrill ride. Cut. Install. Get LOUD!
Product Highlights:
Loaded 6.5" Overhead Bar System
1 X 6.5" PRO-JP6NEO
1 X 1.7" ZXI-T1
RMS Power: 150 Watts
Impedance: 4-Ohm
Sold as a Pair
Features:
Component Set: 2-Way
Nominal Speaker Diameter: 6.5" (165 mm)
Nominal Tweeter Diameter: 1.7" (43 mm)
Nominal Impedance: 4 Ohm
RMS Power Handling: 150 watts
MAX Power Handling: 300 watts
Total Sensitivity (1w/1m): 97 dB
Total Frequency Response: 60Hz-20KHz
Woofer Specifications:
Nominal Impedance: 4 Ohm
Total Sensitivity (1w/1m): 96 dB
Frequency Response: 60Hz-10KHz
Voice Coil Diameter: 1.5" (38 mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Neodymium
Magnet Weight: 3 Oz
Woofer Thiele & Small Parameters:
Equivalent Volume (Vas): 4.46L / 0.157ft3
Excursion (one way) (Xmax): 1.5mm
Free Air Resonance (Fs): 138 Hz
Mechanical Factor (Qms): 4.249
Electrical Factor (Qes): 0.977
Total Factor (Qts): 0.794
Mechanical Mass (Mms): 7.166g
Mechanical Compliance (Cms): 148.927 u/M/N
BL Factor (Bl): 4.767
Voice Coil Inductance (Le): 0.08696mH
Cone Area (Sd): 145 cm2
DC Resistance (Re): 3.2 ohm
Mechanical Mass w/o air (Mmd): 6.159g
Tweeter Specifications:
Nominal Impedance: 4 Ohm
Sensitivity (1w/1m): 92dB
Frequency Response: 1KHz - 20KHz
HI Pass Crossover: 3.5Khz
Body Color / Material: Black / ABS
Voice Coil Diameter: 1" (25.4 mm)
Voice Coil Former Material: Aluminum
Winding Material: SV
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 13g
Body/Features:
Wiring / Connections: Plug & Play to factory Speaker Connector
Enclosure Material: Injection Molded ASA composite
Grill Material: Steel
Sold as Pair: Yes (Left and Right Set)
Color / Finish: Black / Satin
Measurements:
Overall Wide: 8.26" (210 mm)
Overall Length: 12.36" (314 mm)
Overall Depth: 3.27" (83 mm)
