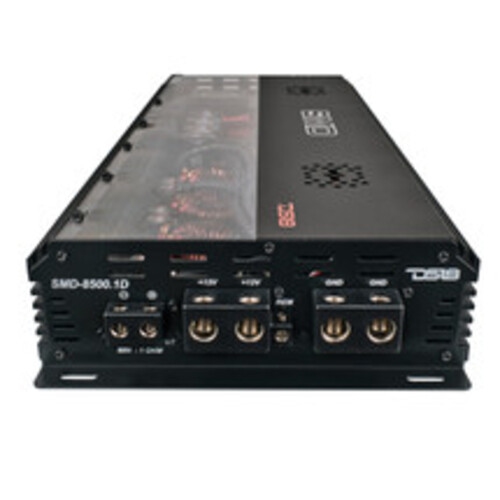

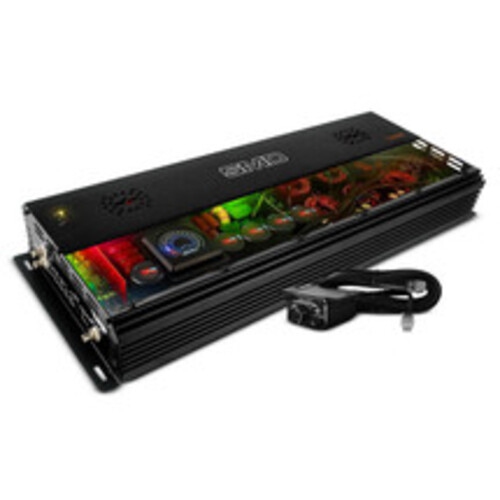

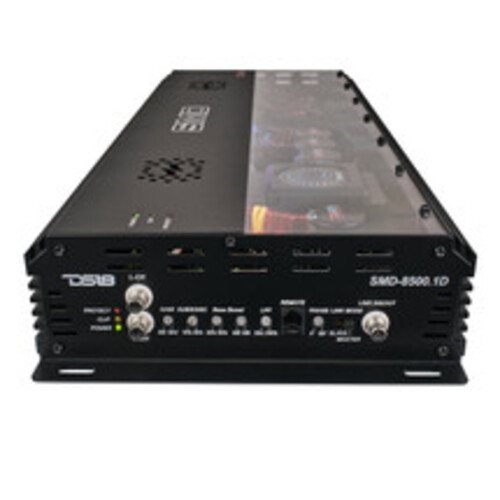

About: DS18 SMD-8500.1D 8500W RMS Monoblock Amplifier with Voltmeter and Digital LED Lights
Introducing the SMD-8500.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.
With the SMD-8500.1D, we achieved that and more. What sets the SMD-8500.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.
Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-8500.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 3300W RMS at 4-ohm, 5700W RMS at 2-ohm, and 8500W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.
Product Highlights:
1 Channel Subwoofer Monoblock
Exclusive SMD Design ~ Class D
1 - 4 Ohm Stable ~ 8500 Watts @ 1 Ohm RMS
VM-1 Voltmeter ~ Fans ~ Linkable
Acrylic Window ~ Digital LED Lighting w/ Remote
Bass Knob ~ LED Indicators ~ Made in Korea
Features:
Amplifier Class: Digital
Amplifier Type: Subwoofer
Number of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 0 AWG
Recommended Fuse Size (Not Included): 740A
Cooling Fan: Yes
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Black
Metal Adjustment Knobs with Click Position: Yes
Professional Tiffany RCA Connectors: Yes

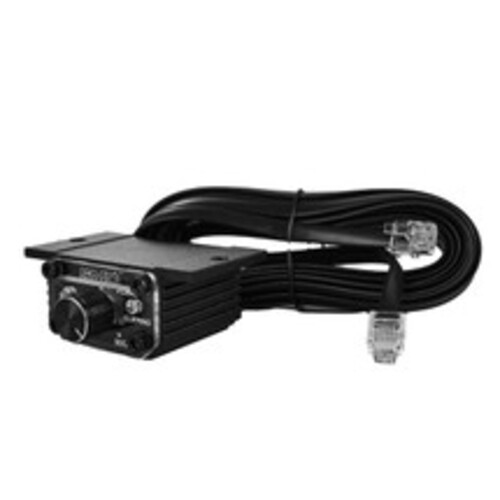

Remote Level Knob with Clip indicator: Yes (Metal Case)
Linkable (Strap mode) Amplifier: Yes
Reliable Heavy Duty Korean Board Design
Very High Efficiency Digital Circuit Design
Exclusive SMD design with VM-1 Voltmeter
Front Acrylic Window and Digital RGB Lighting

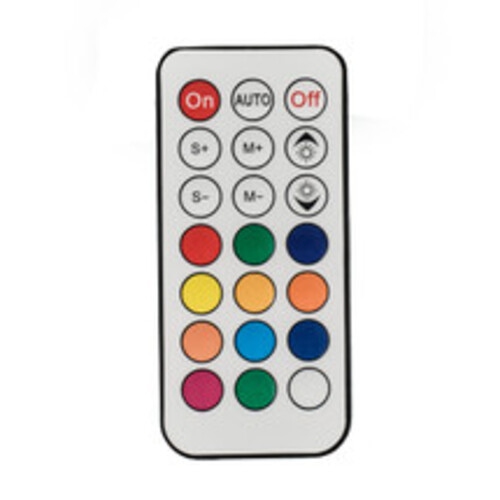

IR Remote Control for LED patterns and colors
Specifications:
RMS Power @ 4 ohm (14.4v): 3300W
RMS Power @ 2 ohm (14.4v): 5700W
RMS Power @ 1 ohm (14.4v): 8500W
Frequency Response: 15Hz-250Hz
Signal to Noise Ratio: >98dB
Efficiency @ 4ohm: >86%
Damping Factor: 300
Input Impedance: 22K ohm
Total Harmonic Distortion (THD): <0.02%
Low Level Input Range: 200mV-6V
High Level Input: NO
Selectable X-Over: Fixed LPF
X-Over Filter Range: 35Hz-250Hz
Bass Boost Range: 0~9dB
Bass Boost Frequency: 30Hz-60Hz
Infrasonic Filter: 10Hz-30Hz
Phase Selector: 0~180
Operational Voltage: 8.5v-16.9v
Measurements:
Overall Length: 23.3" (562 mm)
Overall Width: 9.15" (232 mm)
Overall Height: 3" (76 mm)
Heatsink Length: 21.6" (550 mm)
