Overview

HES 1600CS Complete Pac for Latchbolt & Deadbolt Locks, Includes 8 faceplates (1J, 1K, 1KD 1KM; 1N, 1ND, 1NM, 1NTD), Satin Stainless Steel (630), Dual Voltage (12/24 VDC)

HES 1600CS Complete Pac for Latchbolt & Deadbolt Locks, Includes 8 faceplates

Model: HES 1600CS-12/24D
Web Code: 18926165
Sold and shipped by | 3.4 seller rating (24 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

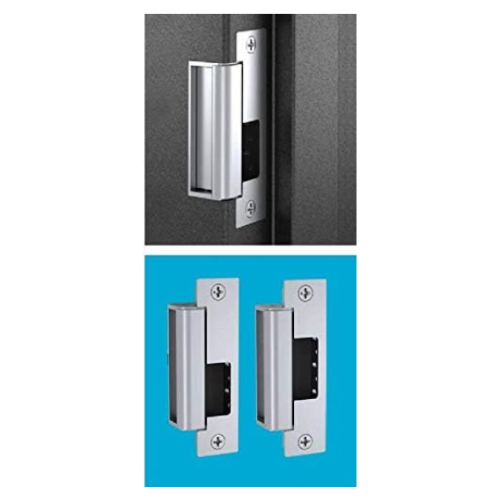

The HES 1600CS Complete Pac Electric Strike is compatible with any CYLINDRICAL or MORTISE lock.

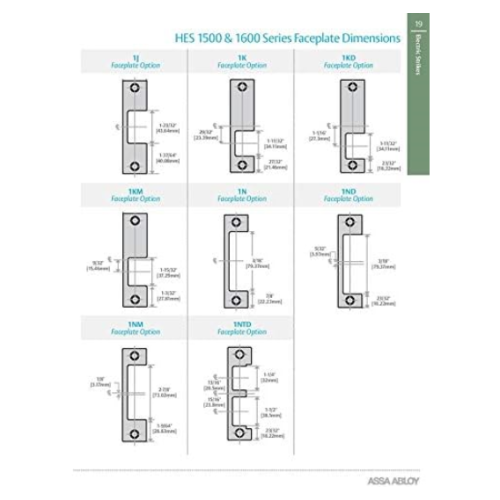

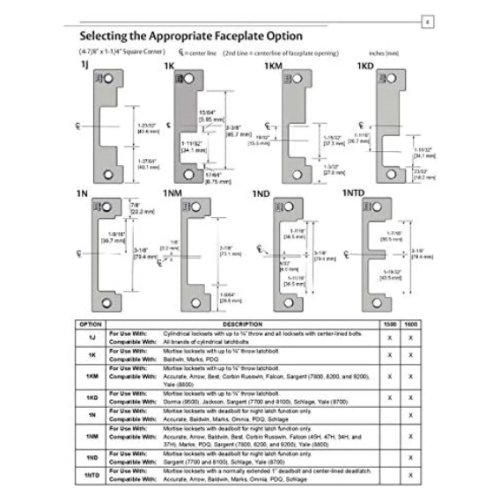

FACEPLATE OPTIONS (4-7/8" x 1-1/4") in metal frame applications:

For LATCHBOLTS:

• 1J For use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts.

• 1K & 1KD For use with Mortise locksets with a deadlatch positioned above the latchbolt.

•1KM For use with Mortise locksets with a deadlatch positioned below the latchbolt.

For DEADBOLTS:

•1N & 1ND For use with Mortise locksets where the deadbolt is used for night-latch function only.

•1NM For use with Mortise locksets with a deadlatch positioned below the latchbolt and where the deadbolt is used for night-latch function only

•1NTD For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch.

FEATURES:

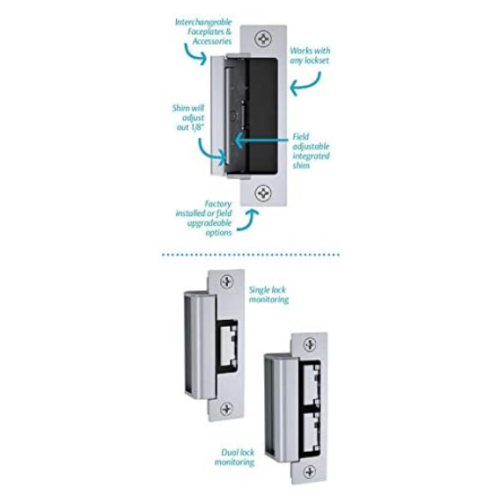

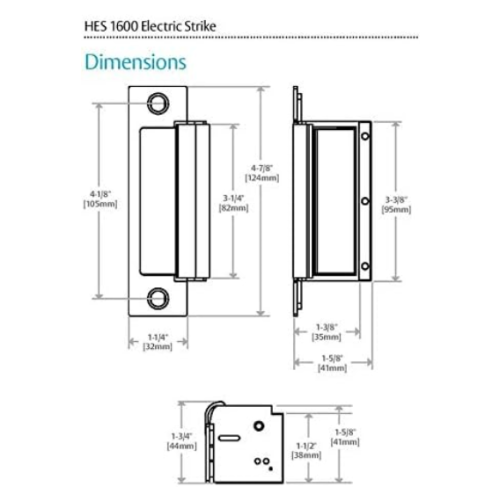

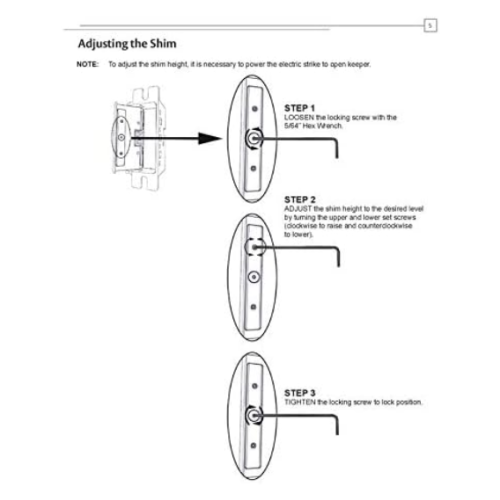

Stainless steel construction Tamper resistant Static strength 1,500 lbs Dynamic strength 70 ft-lbs Endurance 1 million cycles Field selectable fail safe/fail secure Non-handed Interchangeable faceplates and accessories Field replaceable components Fully finished faceplate, keeper, case and trim Field adjustable integrated shim Strike body depth 1-5/8" SecuriCare ten-year, no-fault, no questions asked warranty

CERTIFICATIONS:

ANSI/BHMA A156.31, Grade 1 UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 listed RoHS compliant UL 10C fire rated, 3-hour single door (fail secure only) UL 10C fire rated, 1-1/2 hour double door (fail secure only) CAN/ULC-S104 fire door conformant NFPA-252 fire door compliant ASTM-E152 fire door compliant California Fire Marshal listed ANSI/SDI A250.13 windstorm resistant Florida Building Code approved TAS 201, 202, 203 ANSI-ASTM E330

ELECTRICAL (DC CONTINOUS DUTY):

Dual voltage 12/24 VDC/VAC 240 mA at 12 VDC/120 mA at 24 VDC PoE friendly
