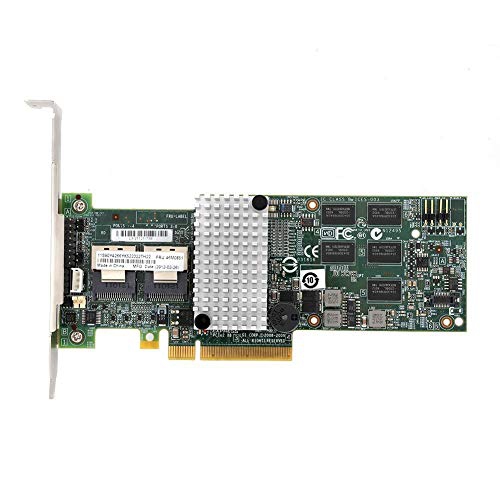

LSI 9260-8i /IBM M5015 46M0851 6G SATA/SAS PCIe x8 6Gbps MegaRAID SAS 9260-8i

Model: Tangxif80nysewo7
Web Code: 15047803
Sold and shipped by | 2.5 seller rating (2 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

Overview

• Excellent read and write performance: maximum read rate: 2,875MB / s, maximum write rate: 1,850MB / s, 512MB DDRII cache (800MHz), battery backup unit BBU08 with power failure indicator, can connect up to 32 SATA and / or SAS devices• PCI-E 2.0 X8 can provide faster signal transmission for high bandwidth applications.• Supports 3Gb / s and 6Gb / s SATA and SAS har

LSI 9260-8i /IBM M5015 46M0851 6G SATA/SAS PCIe x8 6Gbps MegaRAID SAS 9260-8iSpecification:

Eight internal 6 Gbps SAS/SATA ports

Optional two mini-SAS internal connectors (SFF-8087)

6 Gbps throughput per port

800 MHz processor with LSI SAS2108 6 Gbps RAID on Chip (ROC) controller

x8 PCI-E 2.0 host interface

Onboard data cache (DDR2 running at 800 MHz): ServeRAID M5015: 512 MB

Battery Backup Unit BBU08 Live Failure Indicator

Connects to up to 32 SAS or SATA drives

RAID Levels: 0, 1, 5

RAID Extension: 10, 50

Automatic recovery during reconstruction

Automatic Recovery during Reconstruction

Online Capacity Expansion (OCE)

Online RAID Level Upgrade (RLM)

Global and Special Hot Spare Parts with Recoverable Hot Spare Parts Support Function

Automatic Reconstruction

Container Affinity

Emergency SATA Hot Spare Parts for SAS Array

Unified Controller Multipath (Failover)

I/O Load Balancing

Comprehensive and comprehensive RAID Management Suite

LSI 6Gb/s storage adapter is compatible with existing 3Gb/s SATA and SASDHDD

Spread Spectrum Clocking, SSC, Decision Feedback Equalization, DFE, Expander Self-Discovery, Self-Configuration, Standardized Zoning.

Package list:

1 * M5015 Array Card• Excellent read and write performance: maximum read rate: 2,875MB / s, maximum write rate: 1,850MB / s, 512MB DDRII cache (800MHz), battery backup unit BBU08 with power failure indicator, can connect up to 32 SATA and / or SAS devices

• PCI-E 2.0 X8 can provide faster signal transmission for high bandwidth applications.

• Supports 3Gb / s and 6Gb / s SATA and SAS hard drives to maximize the flexibility of connections within the frame.

• The low-profile MD2 package is ideal for 1U and 2U environments where space is limited. Fast and stable connection, easy to use.

• If you have any questions about this product and need after-sales service, please contact us immediately, we will do our best to meet your needs.
