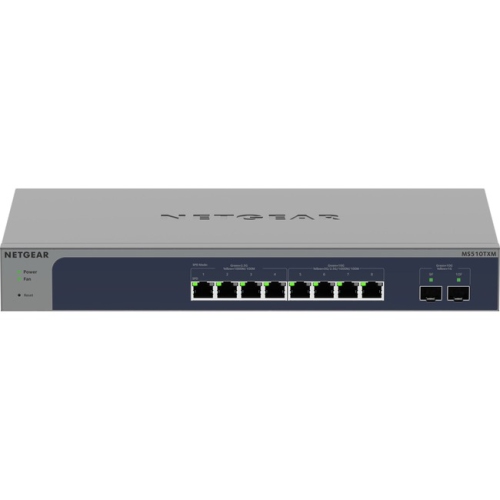

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 Access Points now imply the need for faster speeds in the network.The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS.NETGEAR Smart Managed Pro Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.Highlights
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.More Powerful Switch with Multi-gigabit/10G Speed
4 x 1G/2.5G ports and 4 x multigig/10G ports
8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
2 dedicated 10G SFP+ fiber uplink ports
Fast and flexible solution for SMB data, voice and video converged network
Non-blocking switching with 140Gbps bandwidth
Flexible rack-mounting option
Ideal companion to your NETGEAR WAX610
Connect and power your WAX610 with MS510TXUP
Connect your WAX610PA with MS510TXM
Manage all devices from a single dashboard with NETGEAR Insight
Powerful Connectivity and Security
Advanced VLAN support for better network segmentation
L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling
Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCP based
Auto "denial-of-service" (DoS) prevention
IGMP Snooping and Querier for multicast optimization
Egress Rate limiting and priority queuing for better bandwidth allocation
Port mirroring for network monitoring
Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
