Open Box -Dual CS 418 Manual belt-drive turntable with built-in phono preamp

Open Box -DUAL CS 418

THE MANUAL

RECORD PLAYER ENTRY

Emphasis on high component precision is a feature of the entire range of Dual products. This is the case for the entry model CS 418, which uses the same platform as the higher models in the product range.

The Ortofon 2M Red pickup and a switchable MM-phonopreamplifier are an integral part of this ready to run package.

The CS 418 is not attractive just because it is excellent value for money, but it also offers a superb and compelling balanced sound experience and a 5 year warranty for long term ownership.

DETAILS:

Plinth: Solid MDF

•Folded MDF construction with a black vinyl veneer

•Elastomer vibration absorber integrated inside the feet

•Removable dust cover

Platter: Aluminium Die-cast

•Precise aluminium die-cast

•Heavy rubber mat for resonance damping

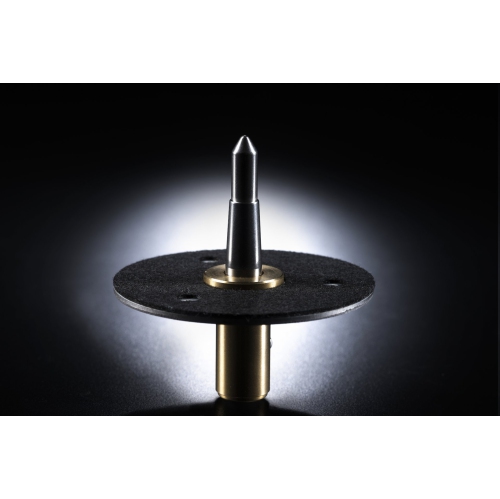

•Solid platterbearing with a hardened steel spindle in a brass bushing

Tonearm: Straight, statically balanced

•Solid aluminum construction with ball-bearings

•Damped tonearmlift

•Adjustable trackingforce and antiskating

Drive: DC- Motor / Belt

•Low vibration DC-Servo-Motor

•Rubber mountings for vibration decoupling

•Precision cut belt for lower wow & flutter

Drive:

Drive Belt / DC Motor

Speed settings 33/45/78

Wow & Flutter < ±0,1 % (DIN WTD)

Tonearm

Bearing Ball-bearing

Effective length 221,5 mm

Offset Angle 25,6°

Overhang 19 mm

Type statically balanced with counterweight

Stylus Pressure Range 0 to 4 g

Cartridge Weight Range 5 g to 9 g

Factory installed Pick-up Ortofon 2M Red

Replacement Stylus Ortofon Stylus 2M Red

Platter

Material Aluminium Die-cast

Mat Rubber 2,5 mm

Bearing Hardened Steel Spindle, Brass Bushing

Diameter 305 mm

Weight incl. Mat 850 g

Plinth

Surface Finish Folded MDF Construction with a Black Vinyl Veneer

Feet Ø 62 mm / Elastomer Damping Element

Connection RCA socket

Connection to Phono Input YES

Connection to Line Input YES

Digital Output X

Dimension (closed dust cover) 435 x 367 x 145 mm Dimension (open dust cover) D: 415 mm / H: 400 mm

Weight 5,8 kg

Power Supply

The efficiency readings were taken with an input Voltage of 230 V AC at 50 Hz Type FJ-SW1261200500DN

Input Voltage 100 (-10 %) V AC to 240 (+10 %)

V AC Frequency 50 / 60 Hz

Output Voltage 12 V DC

Output Current 0,5 A
