Sennheiser EW-DX EM 2 Evolution Wireless Digital 2 Channel Rack Receiver

Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage, while equidistant channel spacing, auto scan, and Bluetooth Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance - even from your pocket - with tools like Wireless Systems Manager and Smart Assist app. The future of wireless is here.

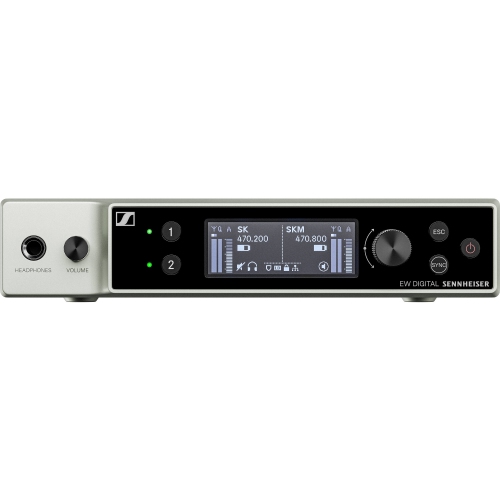

This half-rack (9.5") receiver is designed for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters.

Features

* 2 channel half rack (9.5")

* Up to 88 MHz switching bandwidth

* PoE IEEE 802.3af Class 3

* Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode

* Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules

* Clear and easy focused user interface with OLED display

* Ethernet connectivity (IPv4 and IPv6)

* Secure AES 256 encryption

* External PSU 12V/1A

* All-metal housing

Specifications

Input Voltage: 11 - 13 V or PoE IEEE 802.3af Class 0 (CAT5e or higher)

Input Current: < 1 A

Transmit Power (radiated): BLE: max. 10 mW EIRP

Audio Output Power: 18 dBu max.

Headphone Output: 2x 70 mW @ 32 Ω

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)

Included

- EW-DX EM 2 rack receiver

- 2 rod antennas

- Power supply with country adapters

- GA 3 rackmount set

- 4 rubber feet

- Quick guide

- Safety guide

- Manufacturer declaration sheet
