Product Highlights:

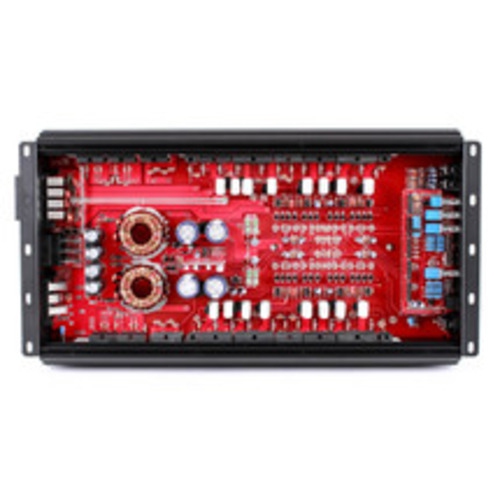

The Skar Audio SKv2-100.4AB is a competition grade multi-channel class A/B speaker amplifier that was designed to deliver unequivocal performance and power output. As a part of the flagship SKv2 series of amplifiers from Skar Audio, this model utilizes only the highest quality internal components and features advanced engineering enhancements that allow it to outperform anything else on the market in its power class. The sound quality that this amplifier delivers due to its class A/B circuitry design is nothing short of audible excellence.
If you are looking for the absolute best amplifier to power your "daily driver" sound stage, look no further - this is the amplifier for you. Whether you are looking to power component speakers, pro audio speakers, or a mix of the both, this amplifier is more than capable of powering an entire vehicle's audio system. The SKv2-100.4AB is conservatively rated at 400 watts RMS power (100 watts x 4 channels), and at max power output can produce more than an astonishing 800 watts (200 watts x 4 channels). In addition to its extreme performance capabilities, this amplifier features an advanced heatsink design that allows for maximum cooling, as well as 4-way protection circuitry, enabling the amplifier to operate efficiently at peak output levels for hours on end.
Furthermore, you'll have full reign over your amplifier with the built-in user control panel, featuring variable adjustment tunings for gain level, subsonic filter, high-pass filter with x1-x10 switch, low-pass filter with x1-x10 switch, and crossover switch to select which filters you'd like to use (HPF, Full, LPF). Versatility is key, and so In addition to all the above features - the SKv2-100.4AB also has RCA outputs so that you can easily daisy chain multiple amplifiers together. This amplifier utilizes 4-gauge power and ground input terminals which allow for maximum current flow and therefore higher power output.
Specifications:

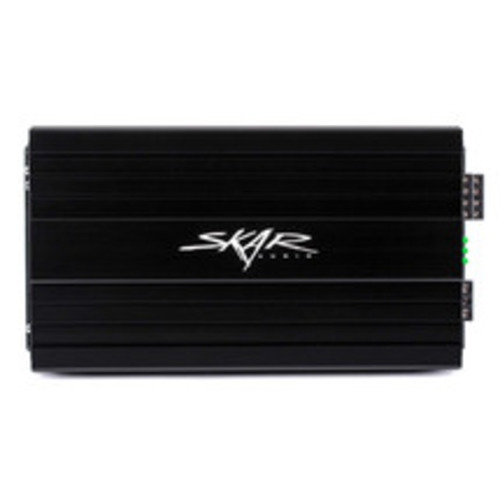

Skar Audio SKv2-100.4AB Class A/B 4-Channel Car Amplifier
Competition Grade Quality and Performance
4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC
RMS Power at 2 Ohms: 150 Watts x 4 Channels (14.4v)
RMS Power at 4 Ohms: 100 Watts x 4 Channels (14.4v)
RMS Power at 2 Ohms (Bridged): 415 Watts x 2 Channels (14.4v)
Frequency Response: 10Hz - 40kHz
Signal-to-Noise Ratio: 105dB
Damping Factor: 200<
Low Level Input (Gain): 6V - 0.2mV
RCA Line Output: Yes
Subsonic Filter: 10Hz - 100Hz
Crossover Selection: HPF / Full-Range / LPF
LED Power & Protection Indicators: Yes
Remote Bass Knob & Wire Included

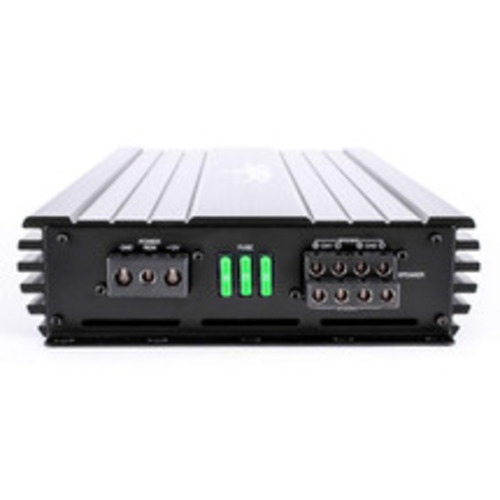

4 Gauge Power and Ground Terminals
Fuse Rating: 30 Amp x 3 External Fuses
Dimensions: 15.75" (Length) x 9.15" (Width) x 2.5" (Height)
Channel 1/2 Crossover
High Pass Filter (at 12dB Slope)
x1, and x10 Multipliers
Variable Crossover x1: 50Hz - 500Hz
Variable Crossover x10: 500Hz - 5,000Hz
Low Pass Filter (at 12dB Slope)
x1, and x10 Multipliers
Variable Crossover x1: 50Hz - 500Hz
Variable Crossover x10: 500Hz - 5,000Hz
Channel 3/4 Crossover
High Pass Filter (at 12dB Slope)
x1, and x10 Multipliers
Variable Crossover x1: 50Hz - 500Hz
Variable Crossover x10: 500Hz - 5,000Hz
Low Pass Filter (at 12dB Slope)
x1, and x10 Multipliers
Variable Crossover x1: 50Hz - 500Hz
Variable Crossover x10: 500Hz - 5,000Hz
Real World Amplifier Dyno Testing Results
Certified (RMS) Power at 2 Ohms: 154 Watts x 4 Channels (14.48v)
Certified (RMS) Power at 4 Ohms: 103 Watts x 4 Channels (14.36v)
Dynamic (Peak) Power at 2 Ohms: 208 Watts x 4 Channels (14.39v)
Dynamic (Peak) Power at 4 Ohms: 137 Watts x 4 Channels (14.52v)
