Overview

The SA-6.5SW was created to achieve extremely high performance at less than 4” of mounting depth (3.8” to be precise). Rest assured that even with the limited depth the SA-6.5SW lives up to the reputation of the SA series! These little guys will take a beating in TINY ported enclosures. Our customers have been in love with the incredible performance per dollar since their launch in 2017.

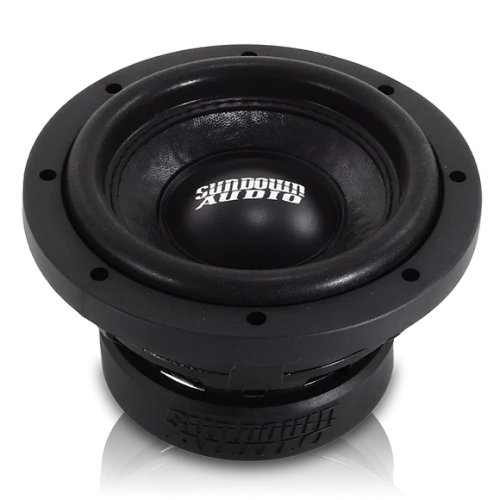

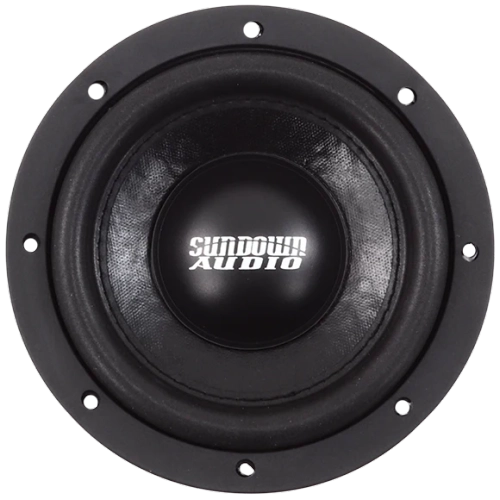

Sundown Audio SA-6.5 v.1 SA-Series 6.5" 200W RMS Car Subwoofer - Dual 2 Ohm

Model: SA-6.5 v.1 D2
Web Code: 12355807
Sold and shipped by | 4.4 seller rating (157 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

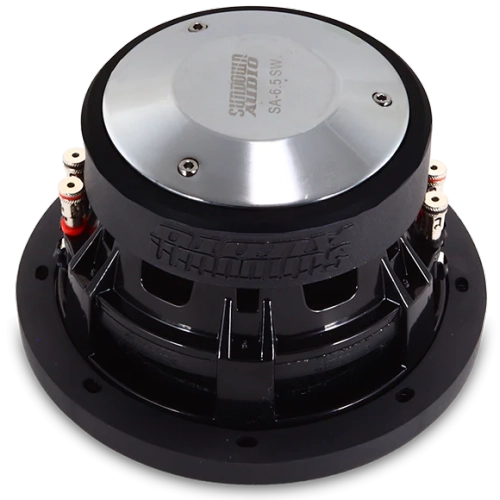

As with several other lines (SLD and SD-4 notably) we used a solid-pole design. This allows the back-plate to rest against the back wall of the enclosure. This further reduces effective depth requirements for this woofer. Shallow depth aside this unit has a full 10mm one-way linear excursion and an x-mech in excess of double that! So there is almost no concern about bottoming out the coil. We also borrowed the hyper-extended pole technique from our larger lines to help prevent coil damage from exiting the gap forward. Furthermore; we even included a magnet ID faraday ring to keep inductive distortions in check!

Specifications:

200 Watts RMS/ 600 Watts Peak

Dual 2 voice coils

Large aluminum Faraday ring for smooth acoustic response

High-temperature voice coil wire

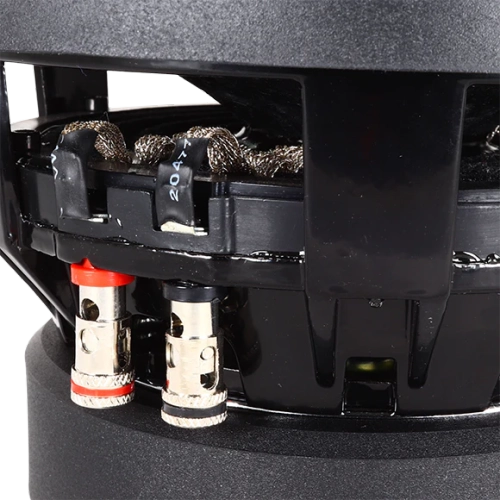

Spring-loaded terminals

Integrated vent channels for enhanced cooling

Perfect for under/behind seat sub enclosures

Enclosure Specifications:

Sealed Enclosure: 0.15 cu ft

Ported Enclosure: 0.3 cu ft

Recommended Tuning: 40Hz

Recommended Port Area: 4 sq in

Depth: 3.79"

Outside Diameter: 7.16″

Cut-Out: 5.93″

Thiele-Small Parameters:

Dc Resistance (Re): 4.0 Ohms

Resonance Frequency (Fs): 48.9 Hz

Equivalent Volume (Vas): 4.1 L

Electrical Factor (Qes): 0.50

Mechanical Factor (Qms): 4.82

Total Factor (Qts): 0.46

Inductance (Le): 1.69 mH

Bl Factor (BL): 13.5

Mechanical Mass (Mms): 74.8 g

Mechanical Compliance (Cms): 0.14 uM/N

Sens (dB @ 1w/1m): 81.6

Xmax: 10mm

Product Condition
Brand New
Power Handling Nominal
200 W
