Recording and Mixing with Analog Gear Made Easy

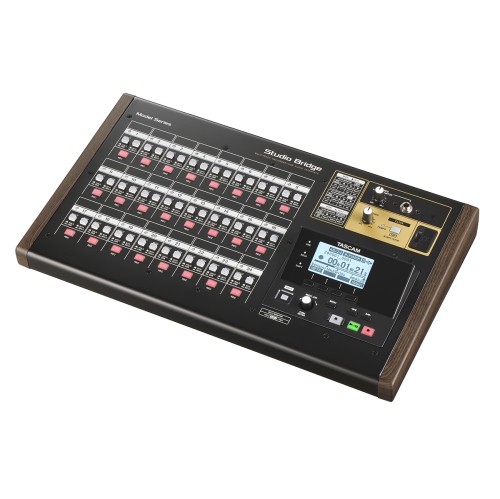

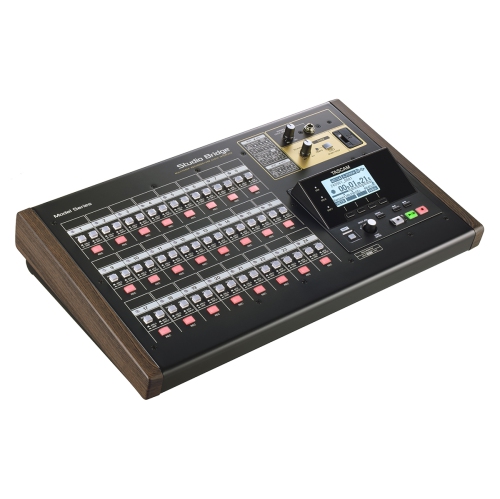

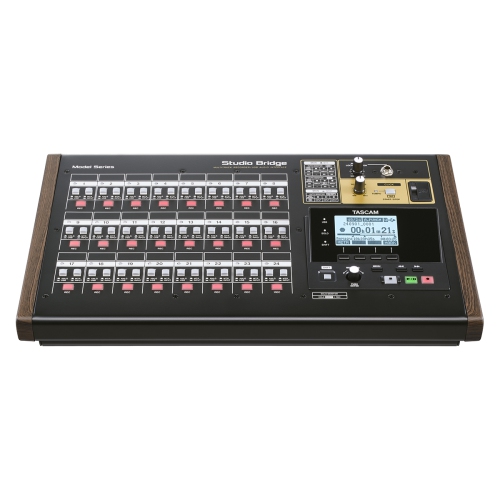

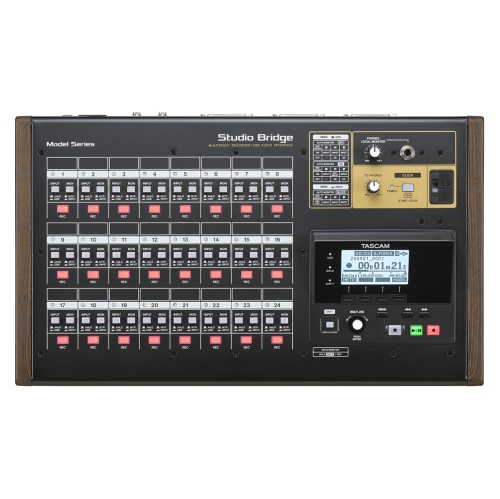

The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.
24-Channel Modular Multitrack Recorder DAWLess solution
Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.
24-IN/24-OUT Audio/MIDI Interface for DAWs
TASCAM knows you want true analog flavor on your DAW recordings, and we're here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.
DAW Transport Controller and Dedicated Meter Bridge Software
Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.
MIDI Synchronization for Your Sequencers
With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production. Unlock your creativity with your go-to analog hardware and the Studio Bridge.
Live Recording Applications
In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.
Features* On-board 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
* 24-IN/24-OUT USB audio interface
* 24 DB25 analog line level input and output
* DAW transport control and REC READY control via HUI/MCU
* Dedicated Settings Panel application with Meter Bridge MIDI IN/OUT allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
* Headphone and Local Monitor Output
* Dual Footswitch control
* 44.1k/48kHz 16/24bit WAV(BWF) format
* Recording media SD card up to 512GB
* MTC output and MIDI clock with Song Position Pointer
* Built in Metronome and Click Out
* 19-inch Rack-mountable with optional AK-RMSTBG
What's in the Box- Studio Bridge x 1
- Power cord x 1
- Safety guide (including warranty) x 1
- TASCAM ID registration guide x 1
