𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

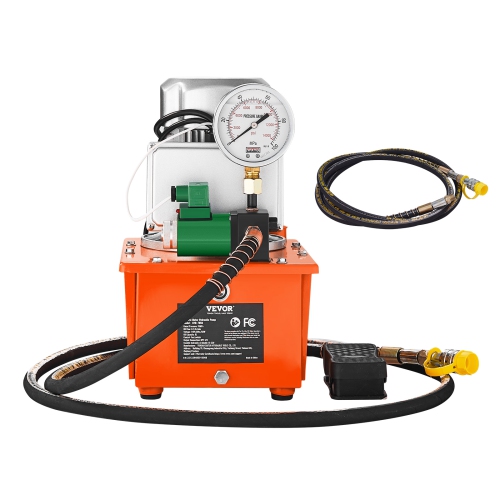

· Solenoid Valve
High-pressure Flow: 0.7 L/min; Low-pressure Flow: 8 L/min. The electric hydraulic pump is designed with a solenoid valve, providing a maximum output pressure of 10,000 PSI.

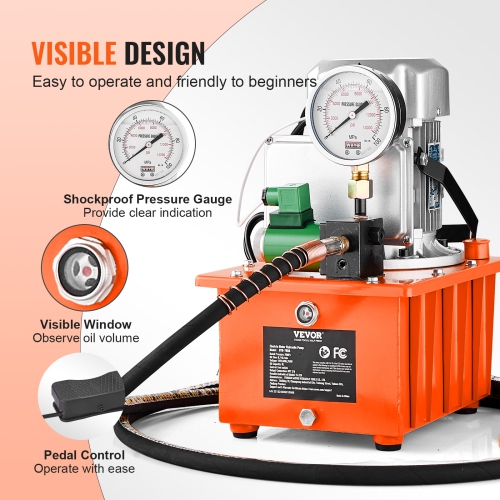

· Visible Window
This electric driven hydraulic pump features a visible window design. You can observe the internal oil level at any time and add oil in time.
· Oil Drain Port
To replace the oil, simply open the oil drain port. It's recommended to replace the oil every three months to ensure optimal performance of the hydraulic driven pump.
· Extended Oil Reach

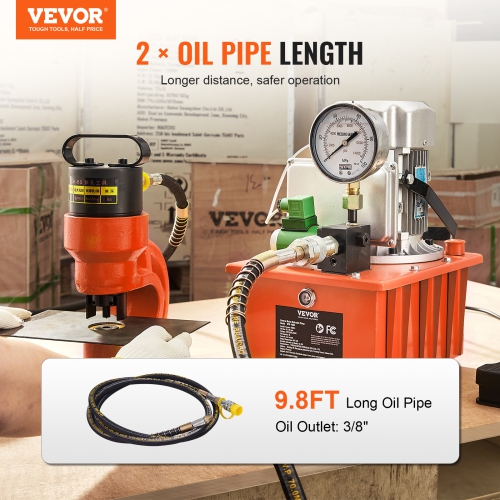

Our hydraulic electric pump comes with two 9.8 ft/3 m oil pipes, which are long enough for large-scale projects. The oil pipes also come with dust-proof caps to prevent plugging.
· Efficient & Powerful Motor
This electric hydraulic power unit has a powerful 750W copper motor with 1720 RPM high speed, saving you power and effort. Its aluminum shell ensures high stability and long service life.
· More Room for Oil
The 10000 psi hydraulic pump is ideal for various hydraulic equipment, such as bending machines, punching machines, lifting jacks, crimping pliers, pipe benders, and much more.

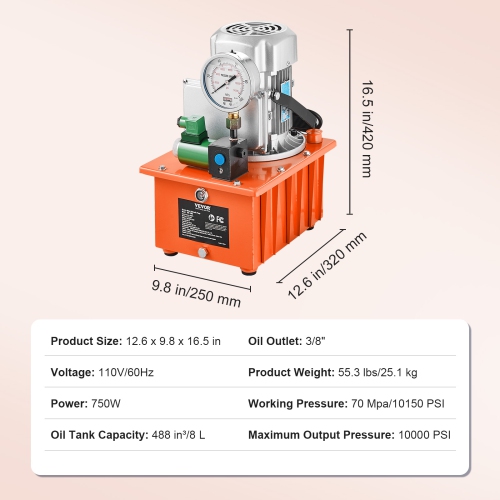

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: GYB-700A
Power: 750W
Voltage: 110V/60Hz
Maximum Output Pressure: 10,000 PSI
Working Pressure: 70 Mpa/10150 PSI
Oil Outlet: NPT 3/8"
Oil Tank Capacity: 488 in³/8L
High-pressure Flow: 0.7 L/min
Low-pressure Flow: 8 L/min
Product Size (L x W x H): 12.6 x 9.8 x 16.5 in/320 x 250 x 420 mm
Product Weight: 55.3 lbs/25.1 kg

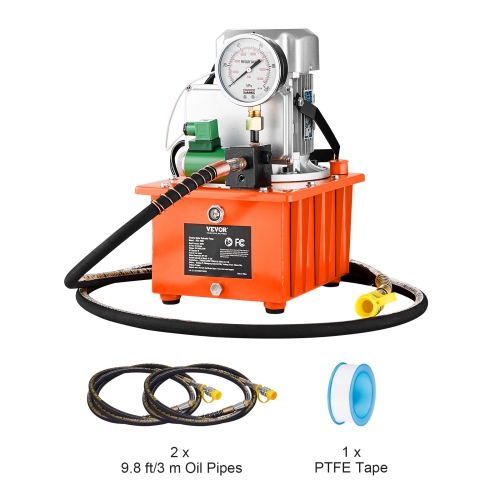

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Electric Hydraulic Pump
2 x 9.8 ft/3 m Oil Pipes
1 x PTFE Tape
1 x User Manual
· Extended Oil Reach: Do you want to stretch further without breaking a sweat? Our electric hydraulic pump is the perfect solution. It comes with two lengthened oil pipes that are 9.8 ft/3 m long, allowing for longer-distance operation and enhanced security. Plus, having two oil pipes makes them easier to replace.
· Efficient & Powerful Motor: Our electric driven hydraulic pump boasts a powerful 750W motor with an aluminum shell, making it incredibly robust and durable. With a max hydraulic pressure of 10,000 PSI, this pump is suitable for various tasks, such as lifting, pressing, bending, straightening, cutting, assembly, and disassembly.

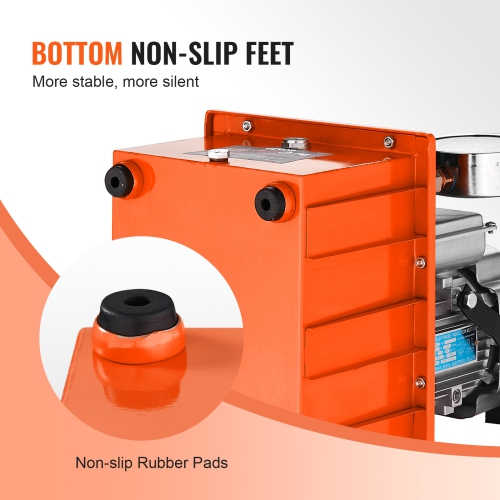

· Work in Silence: The hydraulic driven pump comes with non-slip rubber foot pads at the bottom, ensuring it stays securely in place and minimizing sliding and vibration during operation. This results in a quieter working environment, providing you with a more comfortable experience.

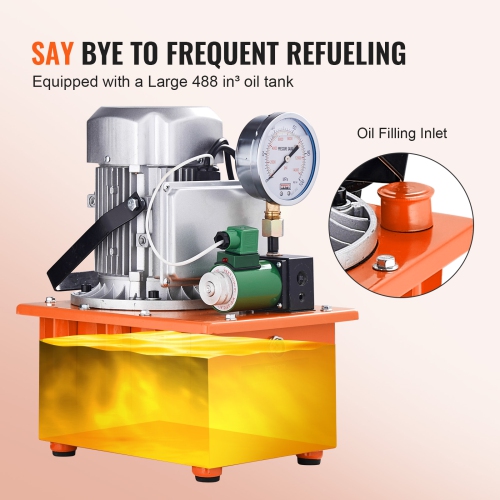

· More Room for Oil: The hydraulic electric pump is highly efficient, thanks to its large 488 in³/8L oil tank. You can easily monitor the oil volume at any time with the visible window. It's recommended to use 15-32# hydraulic oil for optimal performance.
· Designed with You in Mind: This electric hydraulic power unit features a shockproof and precise pressure gauge, which allows you to observe real-time pressure during work. With a flow rate of 0.7L/min to 8L/min, you can choose the proper working pressure you need. Its foot-actuated design makes operation simple and efficient.
