𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Enable Automation in Every Step
Seamlessly integrating into your living spaces, our linear motion actuator not only facilitates automatic raising and lowering of curtains and height adjustment systems but also drives electric door systems. It delivers more convenient, comfortable, and intelligent living experiences.

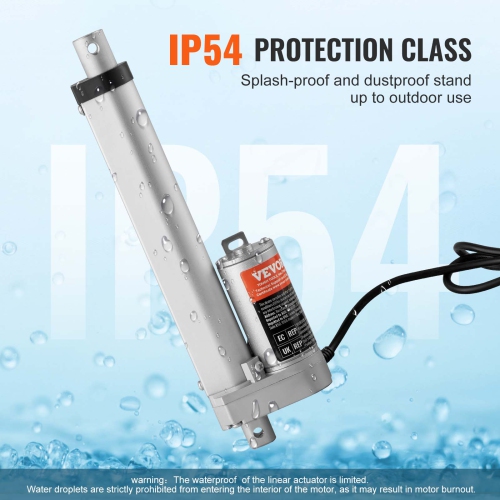

· IP54 Protection
With an IP54 protection rating, our electric linear actuator provides reliable protective performance, maintaining stability in the face of dust, splashing water, and light humidity.(Caution: Water should not penetrate the interior of the motor, as it may result in motor burnout)

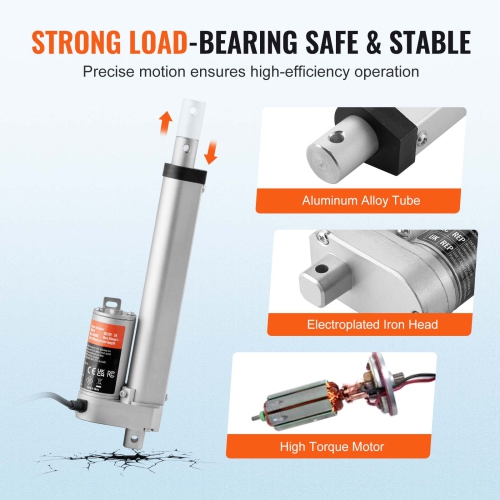

· High-Quality & Durable
Crafted with precision and using high-quality materials, our stroke linear actuator ensures high precision and strength, significantly extending its lifespan. Engineered to endure frequent use, it maintains high stability, offering steadfast support for your various tasks.

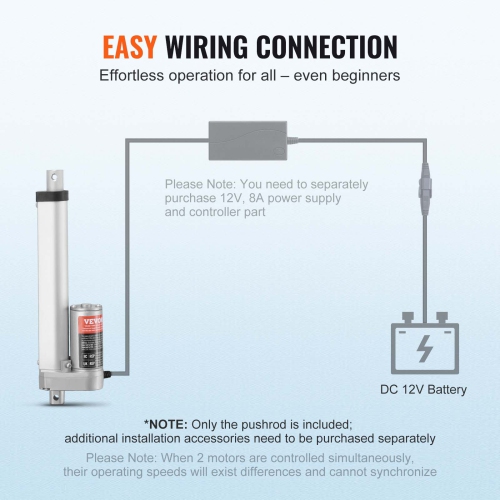

· Easy Installation
For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. Please note that this product only includes the push rod; additional equipment required for installation need be purchased separately.
· Warm Tips
Warning: The waterproof of the linear actuator is limited. Water droplets are strictly prohibited from entering the interior of the motor, as it may result in motor burnout.
· Wide Applications
Ideal for situations where frequent changes in height are needed, such as adjusting furniture or raising and lowering office desks and chairs.

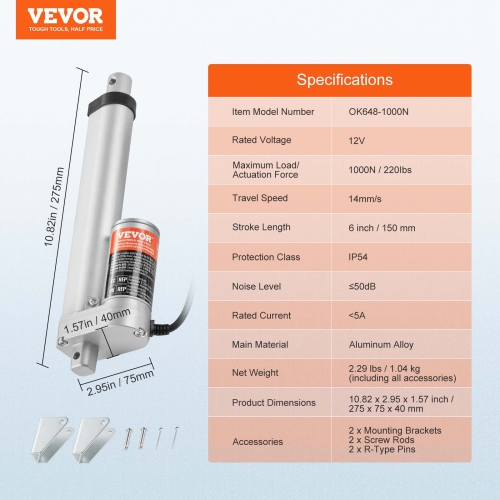

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: OK648-1000N
Rated Voltage: DC12V
Maximum Load/Actuation Force: 1000N
Travel Speed: >0.55 inch/s / >14mm/s
Stroke Length: 6 inch / 150 mm
Protection Class: IP54
Noise Level: ≤50dB
Main Material: Aluminum Alloy
Net Weight: 2.29 lbs / 1.04 kg (including all accessories)
Product Dimensions: 10.82 x 2.95 x 1.57 inch / 275 x 75 x 40 mm

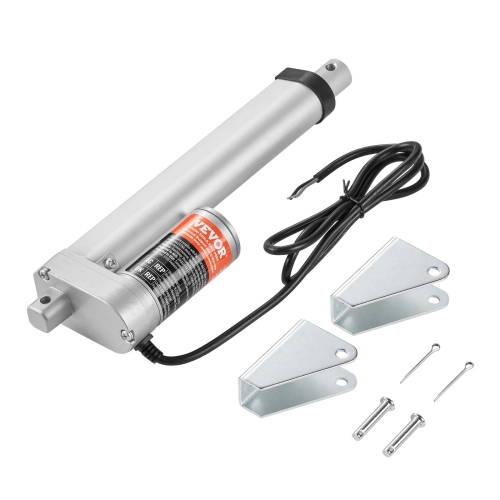

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Linear Actuator
2 x Mounting Brackets
2 x Screw Rods
2 x R-Type Pins
Features & Details
· Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.
· Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
· Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
· IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

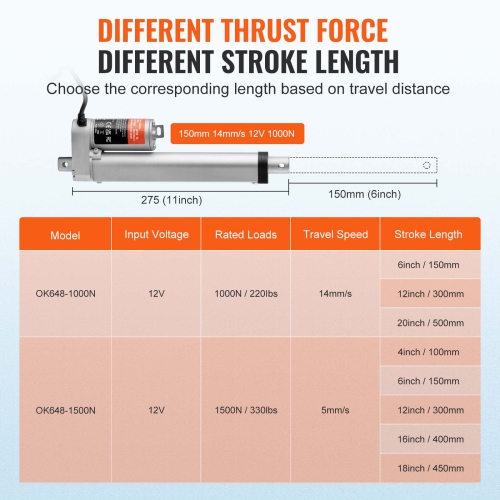

· Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 10.82" (275mm); Extended Length: 16.82" (425mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.
