𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Fast Pile Driving
This pile driver is a fast piling machine with high hammering power and high impact frequency, which allows you to increase your work efficiency and save time by driving piles into the ground quickly.
· Multiple Piling Heads
This pile driver is equipped with different sizes of piling sleeves, you can change the sleeves according to the size of the piles, and the strength of the hammer head in the sleeve part is very high, so you can drive piles easily and quickly.
· Powerful Engine
High-power engine with strong power allows you to lay piles quickly, steadily and accurately, so that you can finish your work faster and easier. It runs smoothly, doesn't stall at high temperature or burn mixture oil, and can work continuously for a long time.
· Humanized design
Anti-slip handle: comfortable anti-slip shock absorption, effectively reduce fatigue when working; Easy start device: start quickly, Shock Absorbing Springs: slow down the vibration of the engine; Oil Pipeline: pay attention to whether the oil inlet pipe is full of oil before use.
· Extensive application
The piling machine is widely used, applied to orchard stand, farm and ranch fence, road reconstruction, river construction and so on. It is suitable for installing fence posts, wooden stakes, and steel posts.
· Plastic box packaging
The pile driver can be moved by hand, convenient and easy, and can be moved quickly to the place where you need to work according to the need.

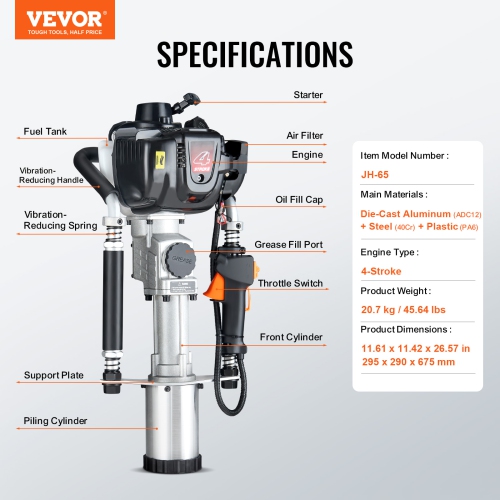

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: JH-65
Engine Type: 4-Stroke
Displacement: 37.7cc
Included Piling Sleeve Diameters: 45mm, 55mm, 88mm
Fuel Tank Capacity: 0.65L ±5%
Rated Power: 1kW ±5%
Rated Speed: 6500 RPM
Maximum Torque Speed: 6000 RPM
Maximum Torque: 1.6 N·m
Impact Frequency: 1500-2000 BPM
Impact Energy: 35J
Main Materials: Die-cast Aluminum+ Steel+ Plastic

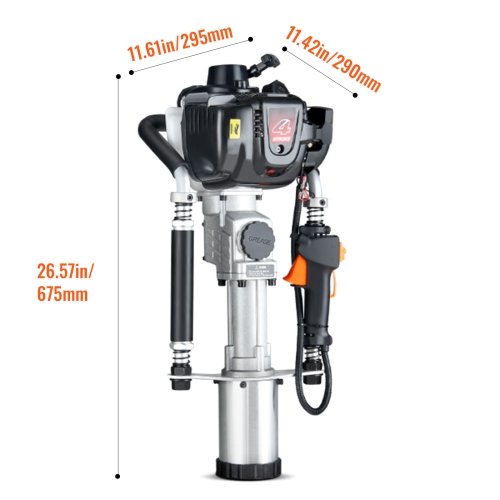

Product Dimensions: 295 x 290 x 675 mm / 11.61 x 11.42 x 26.57 in
Net Weight: 20.7 kg / 45.64 lbs

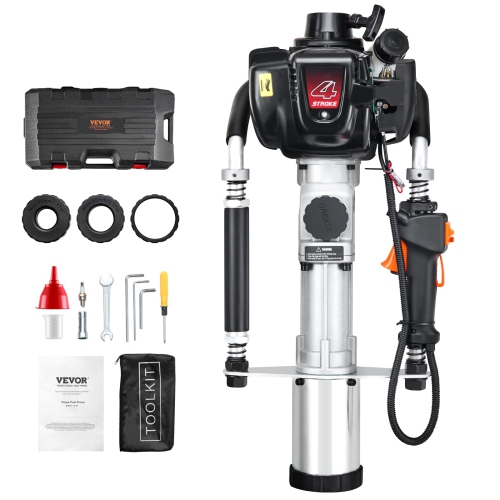

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
Post Driver x 1
Plastic Sleeves x 3 (φ45/55/88mm, one is on the machine)
Funnel x 1
Filter Screen x 1
Tool Set x 1
Measuring Cup x 1
Spark Plug x 1
Plastic Case x 1
Instruction Manual x 1
· Rapid Piling: This 37.7cc pile driver features a fast piling speed, strong hammering force, and an impact frequency of up to 1500–2000 BPM with an impact energy of 35J. It enhances work efficiency, allowing you to complete piling tasks quickly.
· 3 Various Sleeves: The pile driver comes with three different piling heads (including sleeve diameters: 45mm, 55mm, and 88mm). You can switch sleeves according to the size of the pile. The hammerhead at the sleeve part is extremely strong, making piling both easy and efficient.

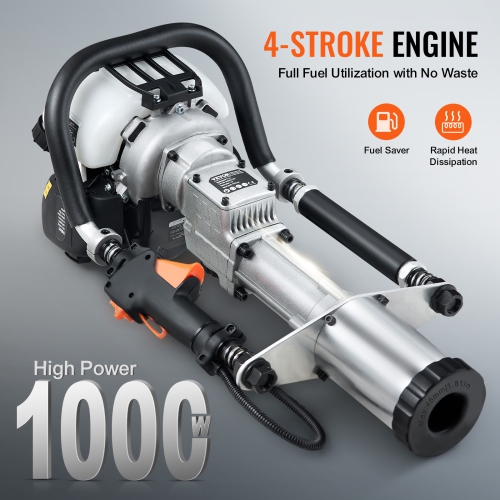

· 4-Stroke Engine: The engine and body are made from durable aluminum alloy. With a powerful 1000W output, it ensures fast, stable, and precise piling. Rated speed: 6500 RPM. The engine operates smoothly, doesn’t overheat, and utilizes fuel efficiently. Maximum torque: 1.6 N·m.
· User-Friendly Design: The pile driver features a non-slip handle for comfort, an easy start device for quick ignition with minimal pulling force, a shock-absorbing spring to reduce engine vibration. Oil supply hose: Before use, ensure that the oil supply hose is fully filled with oil.

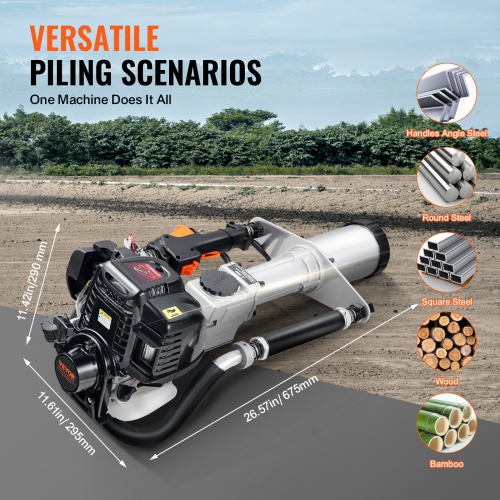

· Wide Application: This pile driver is highly versatile and can be used for a broad range of applications, including installing supports in orchards, constructing farm fencing, renovating roads, and carrying out riverbank construction. It is also ideal for setting up fence posts, wooden stakes, steel columns, and other structures. Its adaptability makes it a valuable tool for various piling tasks across different industries.
