𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· High-Efficiency Piling
This piling machine delivers powerful strikes with high impact frequency and energy, driving posts into the ground quickly and effectively to boost your productivity on the job.
· Multiple Sleeve Options
Equipped with various pile sleeves to fit different post sizes. The reinforced hammer section provides strong impact force, making piling faster and easier across various tasks.
· Robust 4-Stroke Engine
Built with a aluminum alloy engine and housing. Offers high power output and stable operation. Burns fuel efficiently, supports long sessions, and runs on regular gasoline—no mixing required.
· Anti-Slip Handle & Easy Start
Designed for comfort and control, the non-slip, shock-absorbing grip reduces fatigue. Quick-start system requires minimal pulling force and doesn’t kick back. Fuel Tip: Ensure the fuel line is fully primed before use.
· Broad Utility

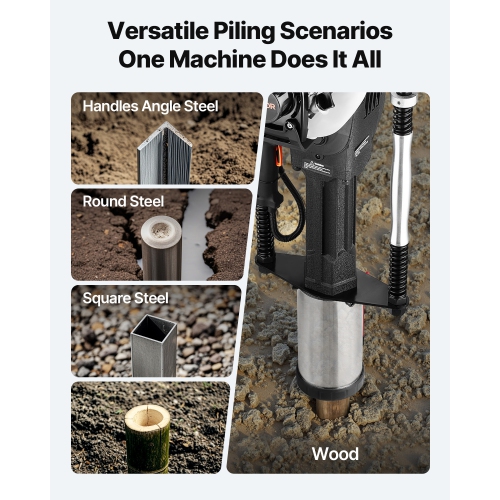

Ideal for orchard structures, farm and ranch fencing, roadwork, and river construction. Suitable for driving fence posts, wooden stakes, rebar posts, and more in a variety of field conditions.
· Portable Storage Case
Comes in a wheeled plastic case for easy transport. Move it effortlessly to wherever the work is—no lifting or heavy hauling required.

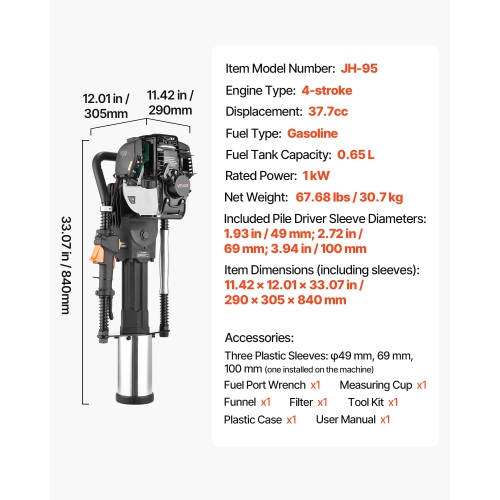

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: JH-95
Engine Type: 4-stroke
Displacement: 37.7cc
Included Pile Driver Sleeve Diameters: 1.93 in / 49 mm; 2.72 in / 69 mm; 3.94 in / 100 mm
Fuel Type: Gasoline
Fuel Tank Capacity: 0.65 L
Rated Power: 1 kW
Rated Speed: 6500 r/min
Speed at Max Torque: 5500 r/min
Max Torque: 1.4 N·m
Impact Frequency: 1500–2000 BPM
Impact Energy: 55 J
Main Materials: Die-cast Aluminum (ADC12) + Steel (40Cr) + Plastic (PA6)
Net Weight: 67.68 lbs / 30.7 kg

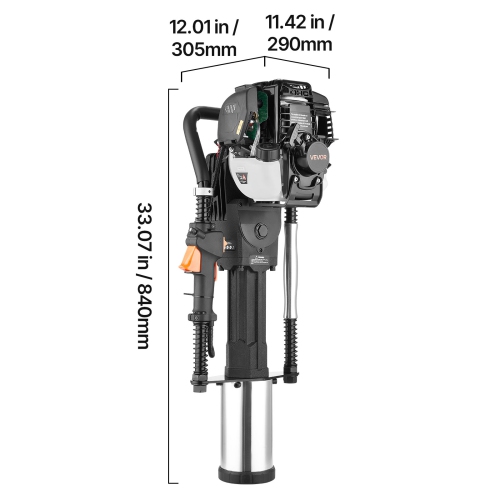

Item Dimensions (including sleeves): 11.42 x 12.01 x 33.07 in / 290 x 305 x 840 mm

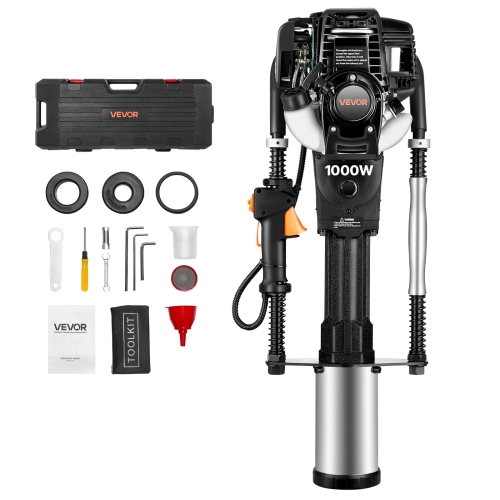

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Post Driver
3 x Plastic Sleeves (one installed on the machine)
1 x Fuel Port Wrench
1 x Measuring Cup
1 x Funnel
1 x Filter
1 x Tool Kit
1 x Plastic Case
1 x User Manual
· Fast and Efficient Piling: This 37.7cc pile driver offers fast piling with an impact frequency of 1500–2000 BPM and 55J impact energy, allowing you to complete your tasks quickly and efficiently, enhancing overall work productivity
· Three Interchangeable Sleeves: The gas powered t post driver comes with three different sleeve sizes (45mm, 55mm, and 88mm) for versatile use. You can easily swap sleeves depending on the post size, ensuring the excellent performance for each job
· Powerful 4-Stroke Engine: Our post driver is built with a sturdy aluminum alloy engine that delivers 1000W of power, running at 6500 RPM. Provides smooth operation with high fuel efficiency and low vibration for optimal piling performance

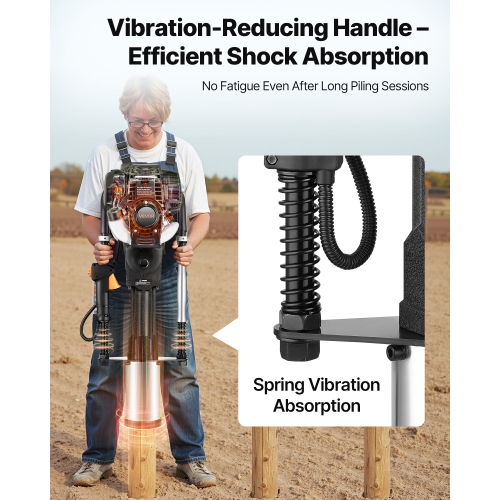

· User-Friendly and Comfortable: Designed with an anti-slip handle for a secure grip, a simple pull-start system for easy ignition, and shock-absorbing springs to reduce engine vibration, ensuring comfort during extended use
· Wide Application Range: Ideal for orchard support installation, farm fencing, road renovation, riverbank construction, and more. Ideal for installing fence posts other structures. NOTE: Avoid sandy, rocky, or root-filled ground for effective piling
