路 Single-Acting Power Unit

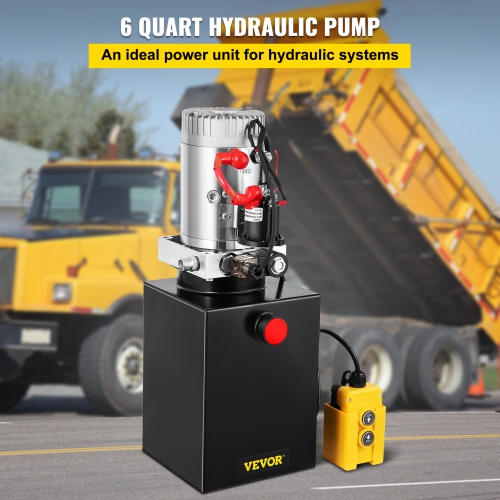

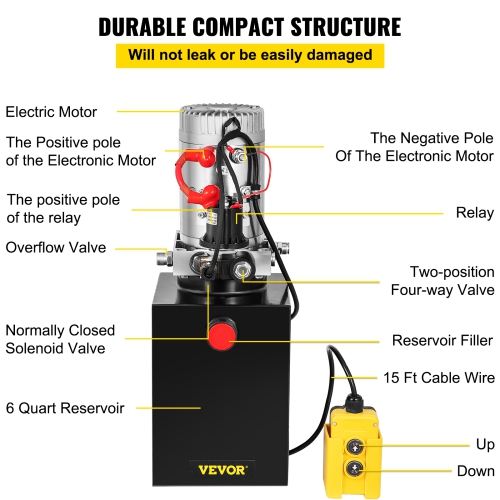

This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 6-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
路 Convenient Design

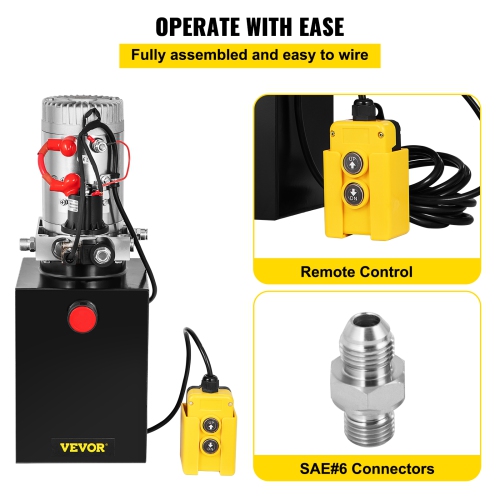

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
路 Quick Start锛哃ifting

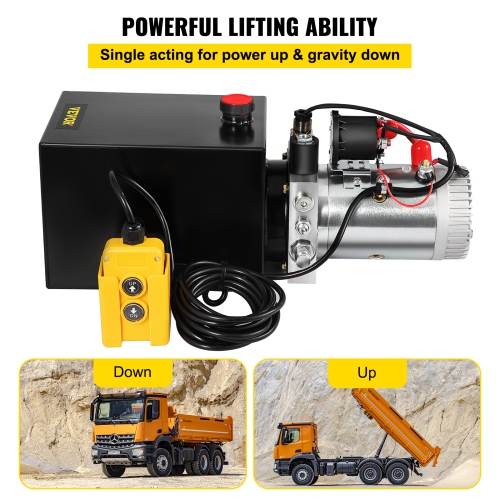

With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
路 Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
路 Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
路 Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

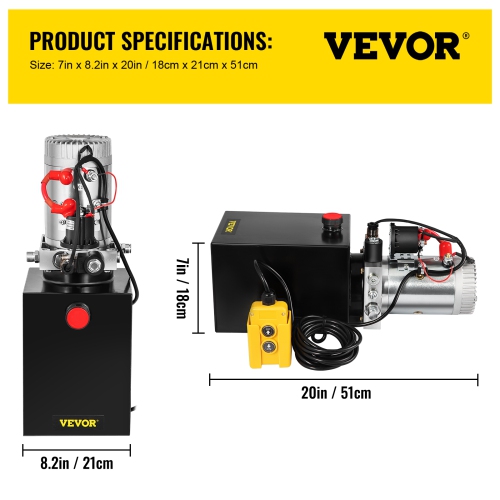

饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Mode: Single-Acting Power-Up/ Gravity-Down
Tank Material: Metal
Tank Capacity: 6L/ 6Quart/ 1.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal/ Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft/ 4.5 m
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x 6 Quart Double Acting Hydraulic Pump
1 x English Manual
1 x SAE # 6 Connectors
路 Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
路 Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
路 Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it can avoid overpressure, safer and reliable.
路 Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
路 Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
