饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 Multi-Channel Solenoid Valve
Controls up to 2 Hydraulic Cylinders, improving efficiency, stability, and reliability. This design enhances flexibility and operational efficiency, with increased durability and resistance to damage.
路 Bidirectional Precision Control

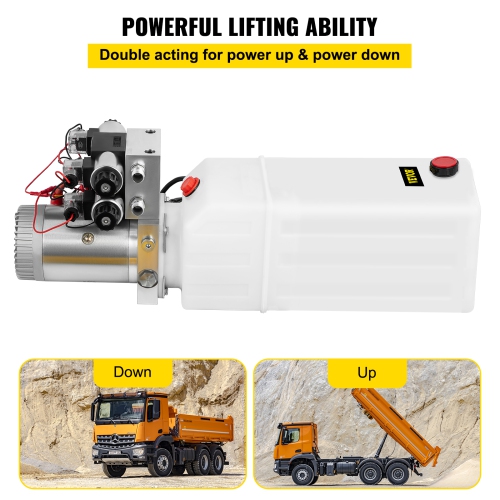

Dual-action ensures quick startup, providing reliable and stable lifting with minimal risk of jamming or malfunction. The remote control of this hydraulic pump allows easy operation in multiple directions, giving you precise control.
路 Tough & Leak-Resistant

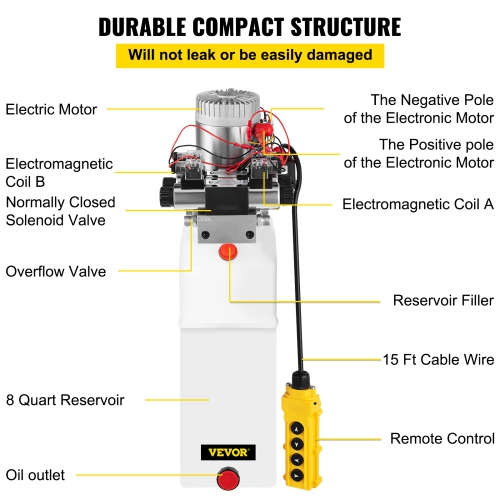

This reliable hydraulic power unit features an integrated relief valve and throttle valve for added protection. The durable PP oil tank is built to avoid damage and leakage, ensuring long-lasting performance.
路 Versatile Application
This dump trailer hydraulic pump connects to a 12V external power source, making it a powerful tool for professional mechanics and construction sites. It's ideal for medium to small hydraulic equipment like dump trailers and small tipper trucks.
路 Operation Reminder
To maintain motor stability and avoid short circuits, avoid long continuous use. In the S3 system, operate for 30 seconds, then rest for 270 seconds. Maximum continuous use is 180 seconds, with a 360-second intermittent cycle.
路 Powerful Performance
The hydraulic pump features a 12V, 1.6kW DC motor, a 0.91 GPM flow rate, and an 8-quart oil tank. It provides oil pressure up to 20 MPa and a maximum release pressure of 22 MPa (3200 psi), delivering strong lifting power.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Item Model Number: ZXDC12V-1.6KW-S-8L
Net Weight: 35.3 lbs/15.9 kg (Include all accessories)

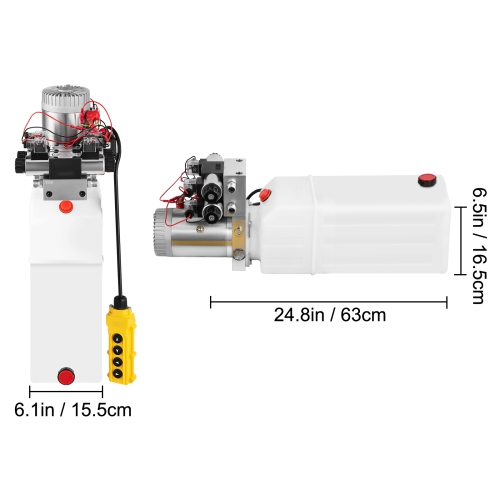

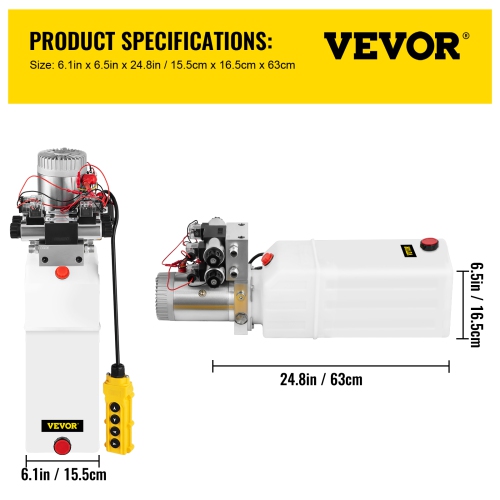

Product Dimensions: 25.6 x 8.9 x 9.1 in/650 x 225 x 230 mm
Voltage: DC12V
Reservoir Capacity: 8 Quart / 2 Gal
Power: 1.6kW
Traffic: 2.1 mL/r
Flow Rate: 0.91GPM (3.4L/min)
Speed: 2600 r/min
Function: Double Acting
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿

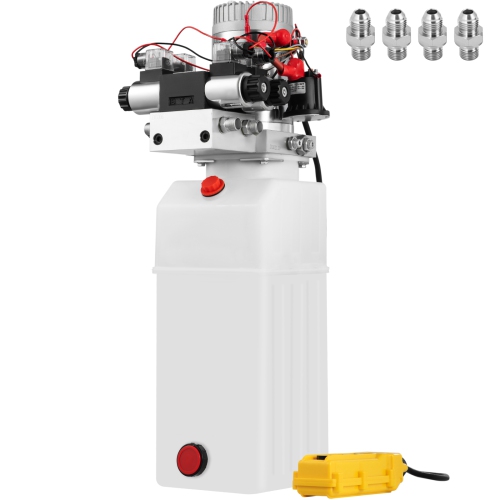

1 x Hydraulic Power Unit

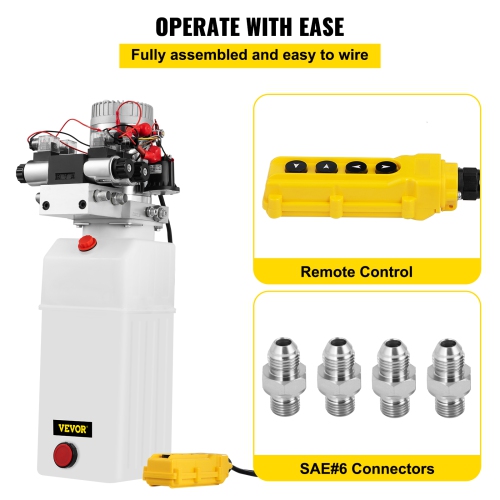

4 x SAE#6 Connectors
路 Hydraulic Pump Specifications: 12V, 1.6kW DC motor for quick startup and oil output. 8-quart oil tank with pressure up to 16-20 MPa, max release pressure of 22 MPa (3200 psi), and a flow rate of 0.91 GPM for powerful hydraulic performance
路 Dual-Action Power Unit: The hydraulic power unit features a dual-action power unit for stable, reliable lifting, with a built-in security relief valve that automatically releases pressure to reduce failure rates and improve operational security
路 4-Way Solenoid Valve: Controls up to 2 hydraulic cylinders, paired with a 4-direction remote control for precise control in multiple directions, allowing you to work more efficiently and accurately
路 Durable Oil Tank: The hydraulic pump for dump trailer features strong sealing to avoid oil leaks. The tank is made of sturdy plastic, designed to withstand impact and daily use without damage, ensuring long-lasting durability
路 Versatile Application: This hydraulic pump comes with a battery label sticker and four SAE#6 connectors, allowing easy installation on small to medium hydraulic equipment like small truck tail-lift, dump trailers, and agricultural dump trucks
