𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Enhanced Push-pull Force
Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 3.5 tons of pushing force and 2.3 tons of pulling force without the need for mechanical gears/levers.
· Leak-proof Structure
The hydraulic top link Cat.1-1 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.
· Durable Construction
The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.
· Flexible Installation

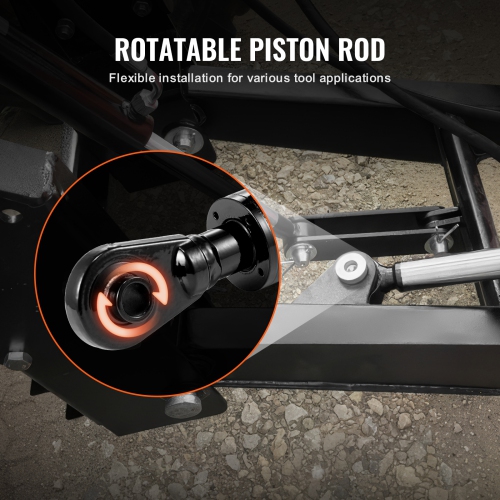

The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.
· Perfect Compatibility
With a connection hole diameter of 0.8 in/Φ19.4 mm, double acting hydraulic cylinder is compatible with Cat.1-1 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.
· Easy Assembly
In addition to the hydraulic cylinder body, it comes with hydraulic hoses, screws, and other fittings, eliminating the need for additional purchases. You can assemble it alone without feeling any difficulty.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

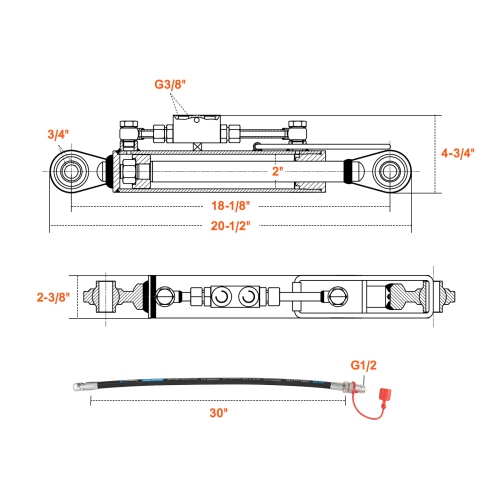

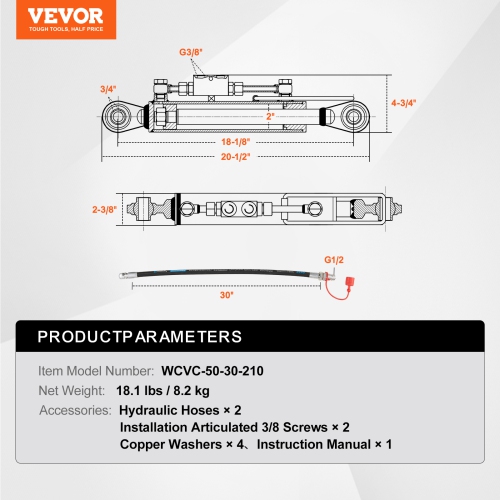

Item Model Number: WCVC-50-30-210
Minimum Retracted Length: 18-1/8 inch (460 mm)
Stroke: 8-1/4 inch/210 mm
Cylinder Diameter (I.D.): 2.0 inch / Φ50 mm
Outer Diameter: 2-3/8 inch (Φ60 mm)
Piston Rod Diameter: 1.2 inch / Φ30 mm
Connection Hole Diameter: 0.8 inch / Φ19.4 mm
Connection Hole Width: 1.7 inch / 44 mm
Thrust Force: 3.5 Tons
Pull Force: 2.3 Tons
Check Valve Inlet/Outlet Port: G3/8"
Rotatable Piston Rod: Ball Joint Linkage Structure
Maximum/Rated Working Pressure: 20/18 MPa (2900/2610 psi)
Compatible Equipment: ClassⅠTractors
Hydraulic Hose: (I.D.&L.): 0.4×30.1 inch / ∅10×765 mm
Fitting Type: G1/2
Color and Surface Treatment: Black Paint
Main Material: 45#
Service Life: 1-year Warranty
Net Weight: 18.1 lbs / 8.2 kg
Product Dimensions: 20.5×4.7×2.4 inch / 520×120×60 mm

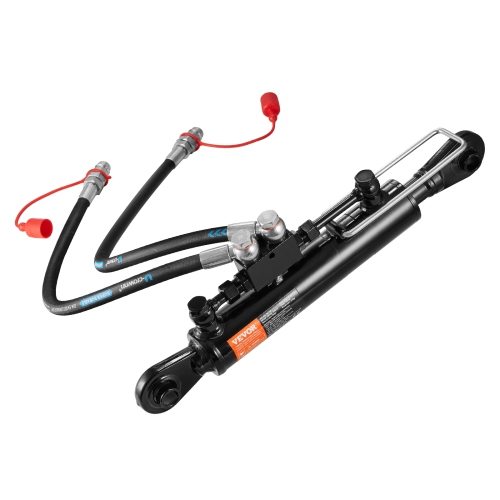

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
2×30.1 inch/765 mm 180 Bar Hydraulic Hoses
2×Installation Articulated 3/8 Screws
4×Copper Washers
1×Instruction Manual

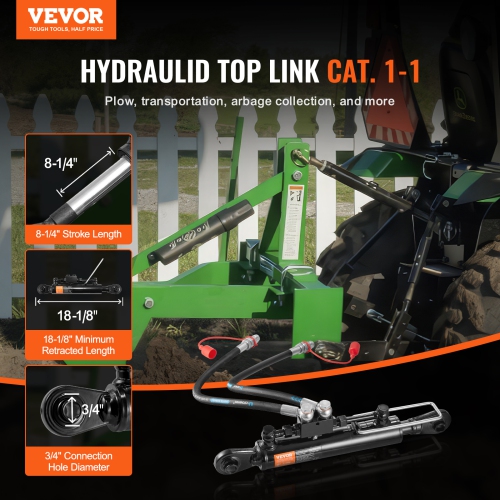

· Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length: 8-1/8 in (460 mm); Stroke length: 8-1/4 in (210 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.

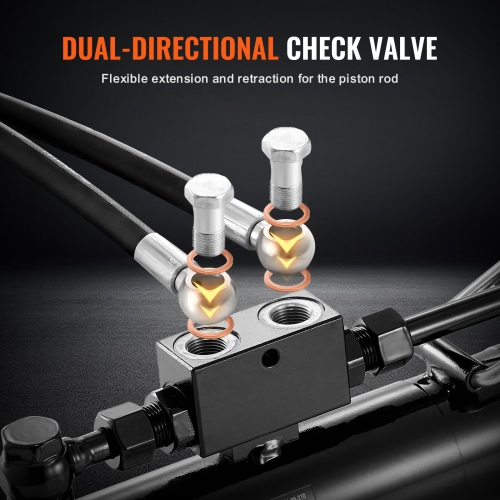

· High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.

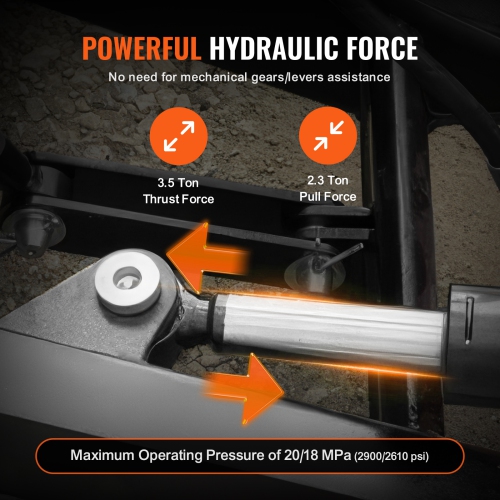

· Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons of pushing force and 2.3 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.

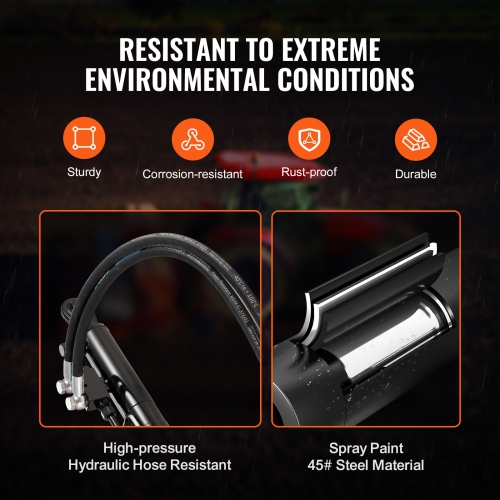

· Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
· Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.
