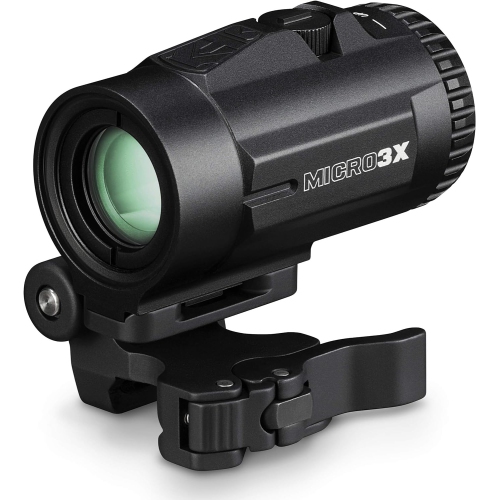

Micro 3X Magnifier (V3XM)
Next level 3x magnification versatility when you need it for your red dot or holographic sight in an ultra compact, lightweight, and optically crisp package. Integrated quick-release mount allows fast attach/detach from your rail and a patented camlock design quickly engages/disengages magnifier with direct pressure. Adjustable flip mount allows for right or left-handed use.The Micro 3X magnifier will work with any of our red dots but may magnify any existing parallax.The Micro 3X will not work with prism scopes.
Mounting The Micro 3X Magnifier
The Micro 3X Magnifier can be mounted to flip to the right or left based on shooting preference. To attach, open the flip mount and position on the base of the magnifier so it can flip to the right or left based on preference. Insert mounting screws through the components and tighten using the included hex wrench. Tighten to 20 in/lbs.
Mount Height Options
Absolute Co-Witness Height with Flip Mount: Positions the magnifier at 1.46 inches from the base surface to the center of the optic. This puts the dot height at a center (absolute) sight picture when co-witnessed with standard iron sights. For this height, do not install the included riser plate.
Lower 1/3 Co-Witness Height with Flip Mount and Riser Plate: Positions the magnifier at 1.57 inches from the base surface to the center of the optic. This puts the dot height at a lower 1/3 sight picture when co-witnessed with standard iron sights. For this height, install the included riser plate between the Micro3X Magnifier and the Flip Mount.
Micro 3X Magnifier Adjustments
The Micro 3X does not require any special sight-in—just zero-in the red dot as normal and add the Micro 3X behind. The dot-centering screws can be used to help center the red dot in the magnifier’s field of view. After it is mounted behind red dot, the dot may seem offcentered while viewing through the Micro 3X. This will not affect the point-of-impact. The centering screws can be used to move the dot up/down or left/right until centered. Do not force screws once resistance is felt and the end-of-travel range has been reached.
