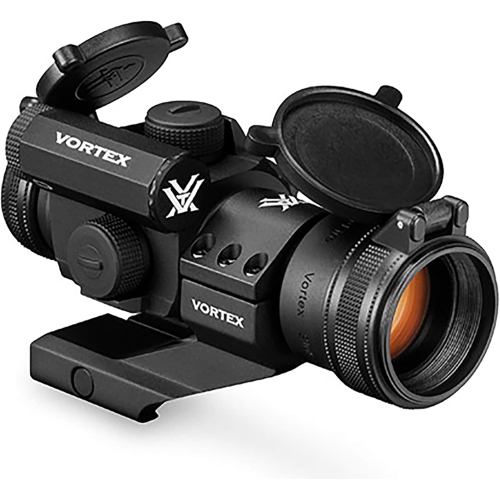

StrikeFire II Red/Green Dot Sight (SF-BR-504)
When situations demand split-second target acquisition and maximum field of view, mount up the StrikeFire II. Feature-rich, versatile and reliable, the StrikeFire II is a great choice for those who want a quality red dot sight. Features sleek rear-facing controls for power on/off and easy adjustment of ten dot intensity levels—lowest two settings are night-vision compatible. This 2019 model has up to 80,000 hours of battery life at setting 6. The 30mm aluminum alloy chassis is waterproof and fogproof.
Red Dot Reticle
The daylight bright 4 MOA dot is ideal for situations that demand quick transitions. Choose among ten variable illumination settings—the lowest two settings are night-vision compatible.
Turret Adjustments
Turrets are used to adjust the point-of-impact and are marked in Minute of Angle (MOA). There are two turrets on your red dot. The turret on the top of the red dot is the Elevation Turret and is used to adjust the point-of-impact up and down. The turret on the right-hand side of the red dot is the Windage Turret and is used to adjust the point-of impact left and right. Your StrikeFire II red dot features adjustable Elevation and Windage Turret dials. Each click moves the point-of-impact 1/2 of a minute of angle. 1/2 MOA closely corresponds to 1/8 inch at 25 yards, 1/4 inch at 50 yards, 1/2 inch at 100 yards, and 1 inch at 200 yards.
Mounting the StrikeFire II
To get the best results from your StrikeFire II red dot, proper mounting is essential and, although not difficult, the correct steps must be followed.
To attach the included cantilever ring mount:
1. Attach the lower part of the cantilever ring mount to the rail/base and make sure this is solidly seated in the base groove. To prevent recoil injury, position the ring so that you have at least four inches of eye relief.
2. Be sure the base clamp is hooked around the outside of the rail/base. Press downward and forward. Then, firmly tighten the base clamp hex nut.
3. Place the StrikeFire II on the lower part of the cantilever ring mount with the adjustment control buttons facing you. Tighten ring cap screws evenly until all are snug—use caution so as not to over-tighten. Once the screws are tightened, the StrikeFire II should not move on the rail/base.
