Costway MMA TIG ARC IGBT Welding Machine 200 AMP Welder DC Inverter LED Display

Our welding machine, which is made of high-class nylon panel as well as delicate treatment, integrates comfortable grip, easy operation and high precision, and is popularly applied in various applications in daily life, particularly suitable for low carbon steel, stainless steel, alloy steel etc. uses imported IGBT and fast recovery diodes as main electric components. It is supplemented by a specially developed main PCB board. In addition, the uniform regulation of welding current has been designed to guarantee the arc reach good welding process adaptability. What's more, its perfect dynamic protection features ensure that it is safe and reliable when use. Besides, there are almost all necessary accessories included in this kit for convenient operation. Don't hesitate to buy it

Features

Appearance design patent, reinforced nylon panel, wear resistant and flame resistance

Compact and portable design, easy to operate

Plastic handle makes it easy to carry

Adopts IGBT module technology, energy-saving and stable heat dissipation

40% high duty cycle, lower cost operation, superior output

Convenient quick connection for the output makes it quick, safe, simple and stable

Digital LED display when use, start with VRD

Featuring controlling knob

Hot striking ARC current is adjustable, greatly improve the ARC-starting function

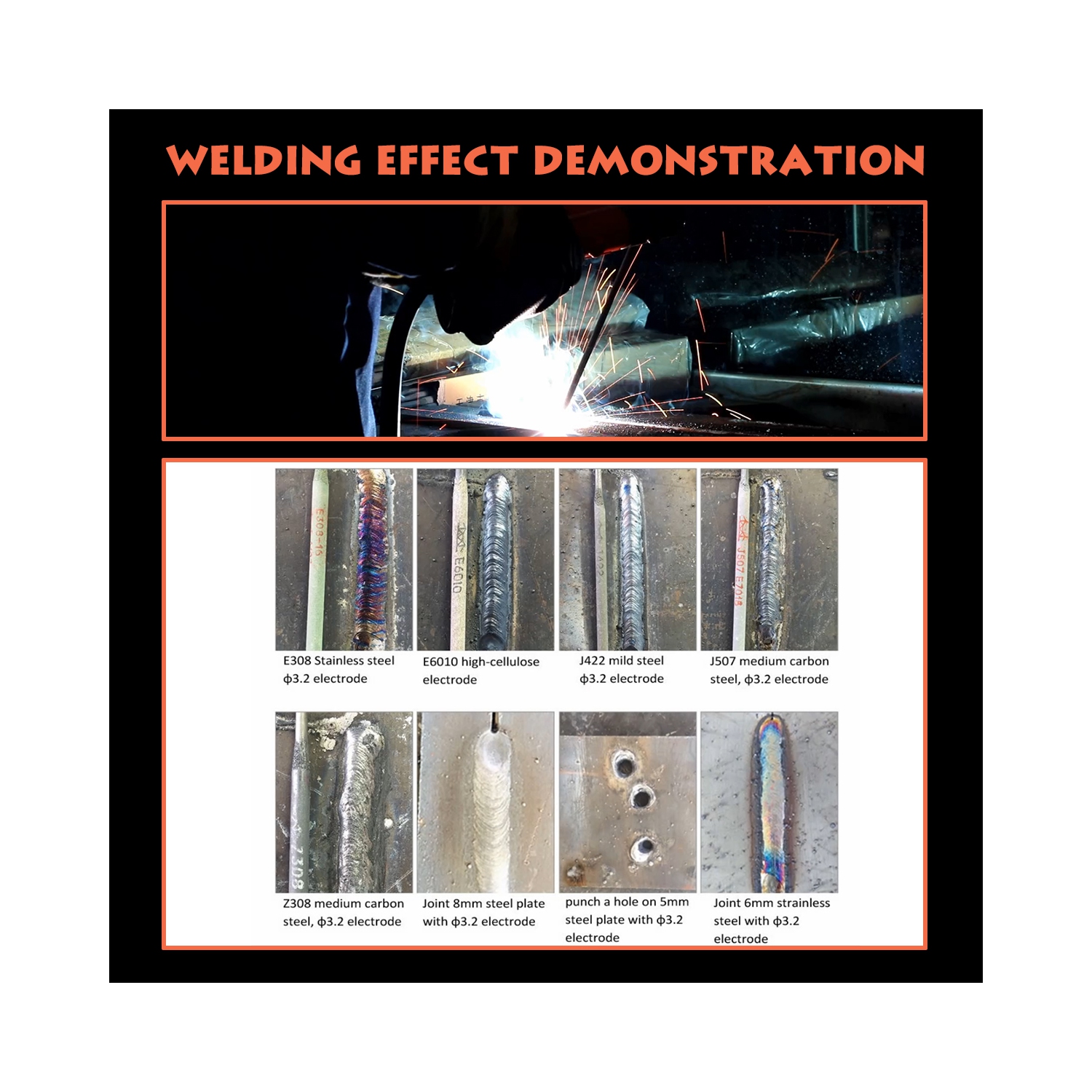

Start ARC easily, stable welding ARC, anti-stick, deep weld pool and beautiful welding shape

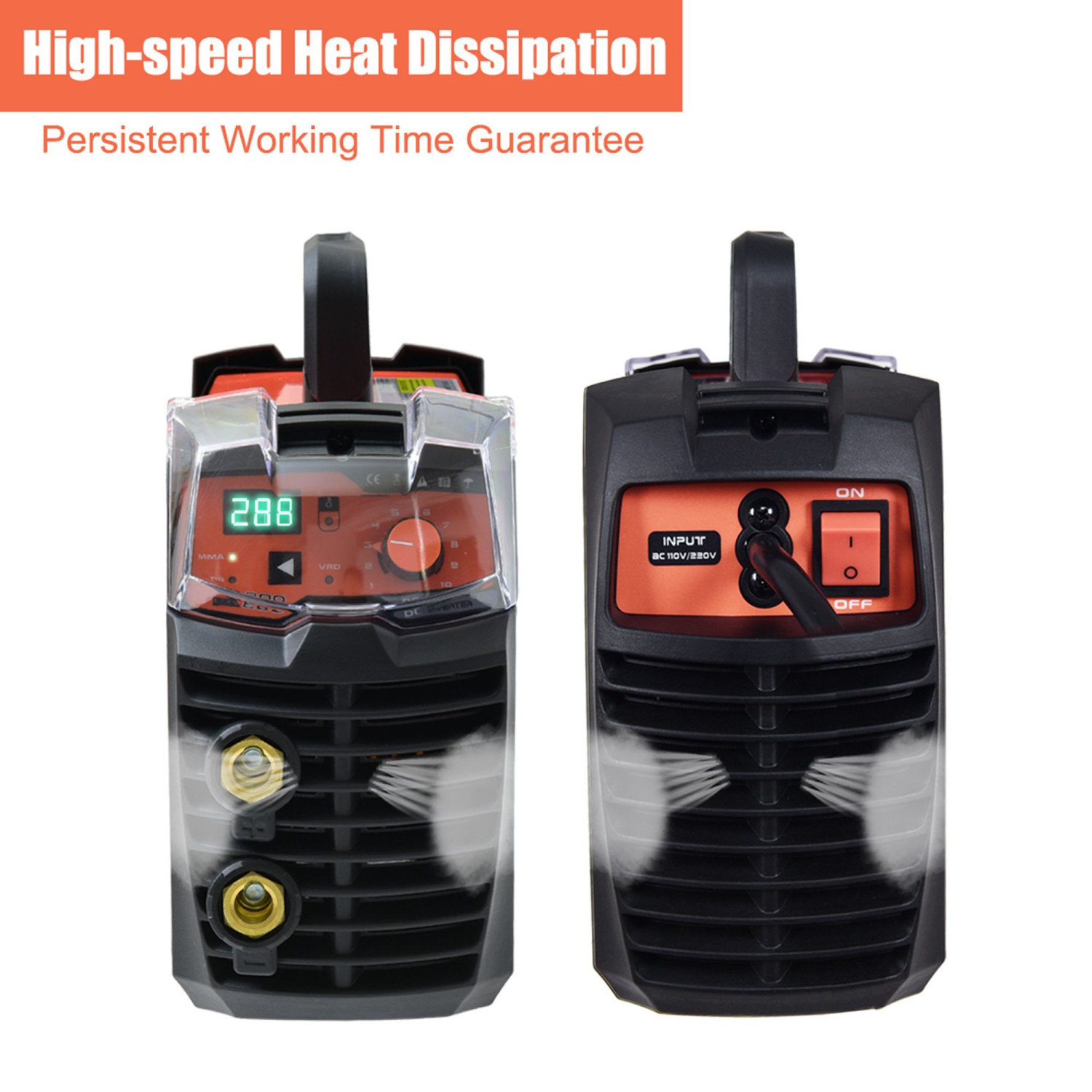

Efficient air-ejection and heat-ejection technology

Over-heating protection, over-voltage protection, over-current protection

Allow TIG welding

Excellent arc properties and solution droplet transfer

Specifications

Color: As pictures show

Weight: About 15 lbs

Voltage: AC 110V / 220V, 50 - 60H

No load voltage (V): 80V

Rated input capacity (KVA): 9.6

Rated input current (A): 42

Output current range (A): 10 - 120 / 200

Rate duty cycle: 30% @ 200A

Duty cycle at 77℉: 40%

Duty cycle at 104℉: 30%

Output efficiency (%): ≥85%

Power factor: 0.76

Working temperature: 14℉-104℉

Transportation and storage: -13℉-131℉

Relative air humidity: 104℉≤50%, 68℉≤90%

Cooling way: Fan & air

Ip grade: IP21

Insulation class: F

Insulated grade: H

Cooling type: AF

Electrode size: 0.07" - 0.2"

Overall dimensions: 13.4" x 5.1" x 8.7" (L x W x H)

Package included:

1 x Welding machine

1 x Operator's manual

1 x Electrode holder

1 x Earth clamp

1 x Face mask with filter

1 x Brush & hammer

1 x 220V - 110V adaptor with 12" cable
