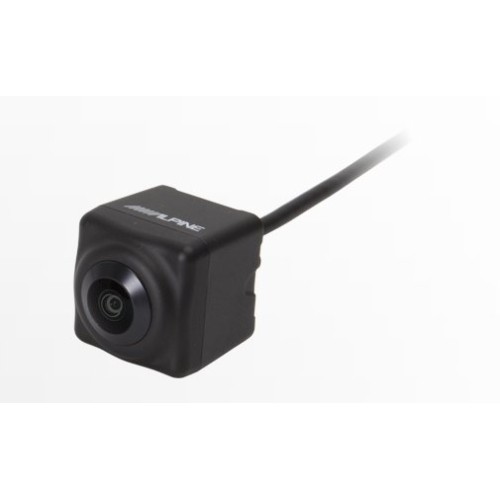

Alpine HCE-C2100RD High Dynamic Range (HDR) Multi-View Rear Camera

All New Alpine HDR Cameras Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer. High-resolution camera for great picture quality and high details Amazing night-view capabilities in low-light environments Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc) New, small connectors for easy installation of camera and cables. General High Dynamic Range (HDR) Rearview Image Direct Camera Connection Vehicle Reverse Signal Synchronization Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner] For use with Alpine monitors with touch-screen operation For use without a touch-screen display, the HDR Multi View Front Camera (HCE-C2600FD), sold separately, is required. Camera Mirror Image Output Color CMOS Image Sensor Automatic Exposure Adjustment Automatic White Balance Adjustment Internal Synchronization SPECIFICATIONS Dimensions Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear) Camera Cable Length: 0.5m Camera Extension Cable Length: 10m General Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable) Ground Type: Negative Ground Max. Power Consumption: 1.2W (6.0V) Camera Output Image: Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen Image Output Impedance: 75 Ohms (1Vp-p) Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 4:3 Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels Lens Focal Length: f=1.27mm Lens Brightness: F=1.8 Angle of Field: Horizontal = 180° , Vertical = 125° Resolution (Horizontal. Center Area): 330 TV Lines Operating Temperature: -30°C - +70°C Illumination Range: Approximatly 1.5Lx to 100kLx Weight: 32g (including cable but not including bracket and screw
