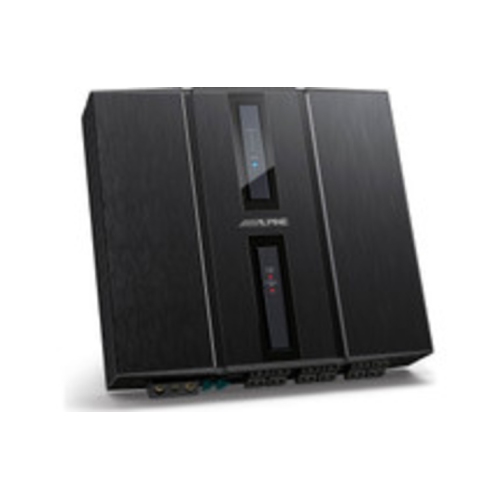

About: Alpine Status HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
System Powerhouse
Building a sound system while overcoming acoustical challenges in the interior environment of the vehicle is no easy feat, however, the HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier provides flexible system building and Hi-Res processing power up to 192kHz/24 Bit for an infallible listening experience.
Ultra-Processing Power
Custom developed for Hi-Res Playback, the HDP-D90 has a 192kHz/64Bit internal sampling rate and an ultra-wide audio bandwidth of 10Hz-110kHz for recording studio-level sound. Intentional designs, like a copper-plated chassis, bring the signal-to-noise ratio up to >110dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
System Flexibility
The HDP-D90 includes multiple source inputs for flexible system building for the option to retain a factory head unit, add an aftermarket head unit, or the Alpine Status HDS-990 Digital Media Controller. For older vehicles with no source player, the HDP-D90 can also function as a standalone music source and can receive music sent directly from a smartphone with Bluetooth® wireless streaming.
Build Your Ideal System
When paired with the Hi-Res HDS-990 Digital Media Player, you unlock even more control options for your processor while getting the highest-quality playback possible in your vehicle.
Powerful System Building
With 12-channels of amplifier outputs, the HDP-D90 can be used as a standalone source to power a 2-Way Speaker System, or for a more dynamic listening experience, includes 10-channels of RCA output for adding additional amplifiers to power a 3-way speaker system.
Optimized for Full System
The Alpine Status System is sold separately and can be used to build a custom sound system. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features:
12-channel car amplifier with digital processing
50 watts RMS x 8 + 80 watts RMS x 4 at 4 ohms
50 watts RMS x 8 + 160 watts RMS x 2 bridged at 4 ohms
Class D amp technology
100 dB signal-to-noise ratio, 0.01% distortion
frequency response: 20-40,000 Hz
digital signal processing (192 KHz, 32-bit sampling rate)
adjustments and settings made via Alpine's HDP DSP tuning app on your laptop or PC and mobile tuning app on your compatible Bluetooth device
31-band parametric and graphic EQ
high- and low-pass filters with selectable filter type, crossover point, and slope
phase and delay adjustment controls
6 sound effects presets
More info:
optional wired remote controller (source, volume, bass, presets)

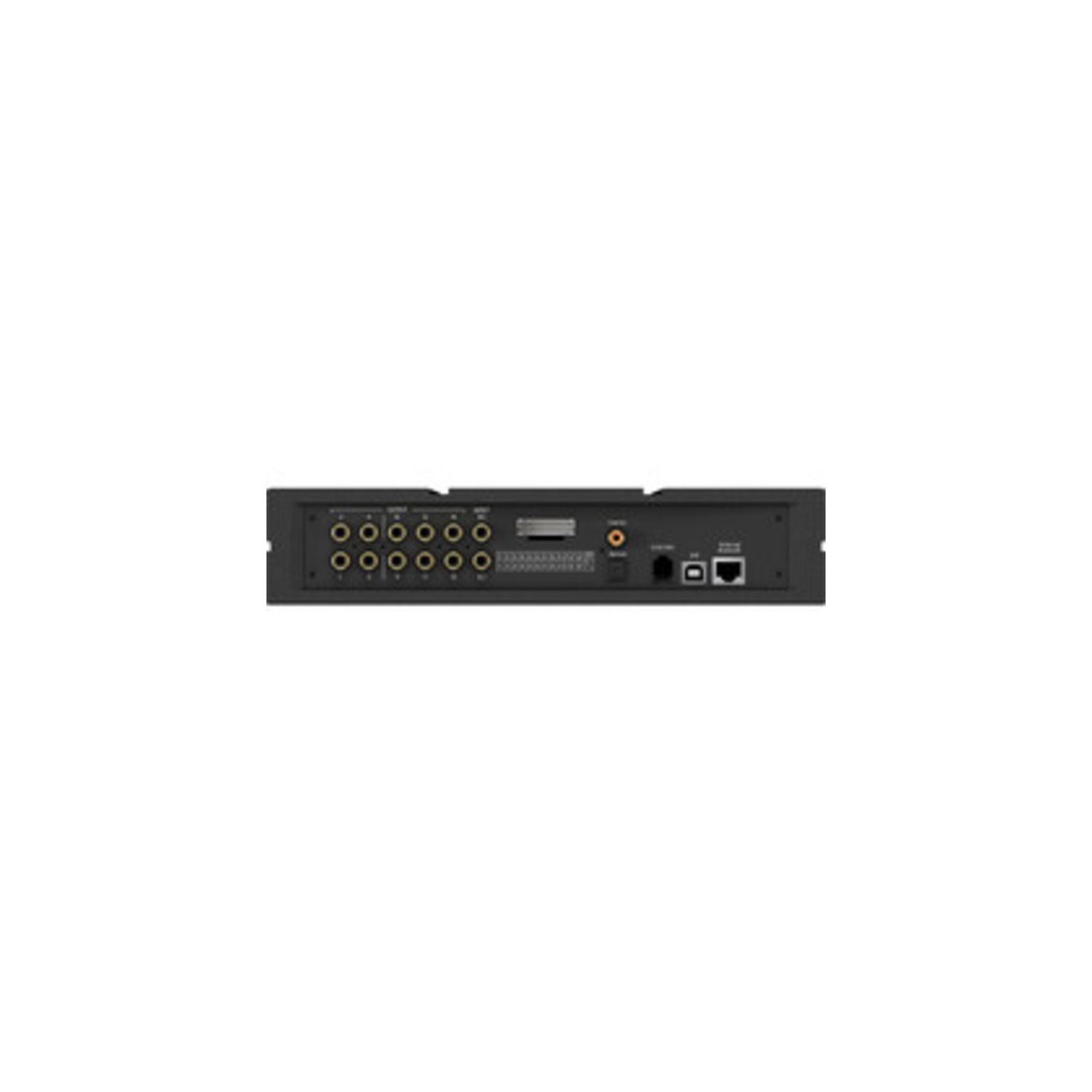

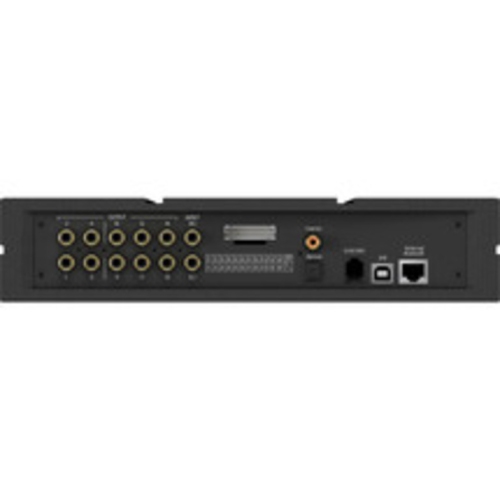

10-channel processed RCA preamp outputs
matrix mixing assignable inputs:
12-channel high-level harness (handles up to 26 Vrms)
2-channel RCA
coaxial and optical digital
Bluetooth streaming (receiver/dongle included)
wiring and hardware not included with amplifier
4-gauge power and ground wires recommended
fuse rating: 30A x 2
dimensions: 11"W x 2-5/16"H x 10-1/2"D
What's in the box:
14-Channel audio processor/amplifier

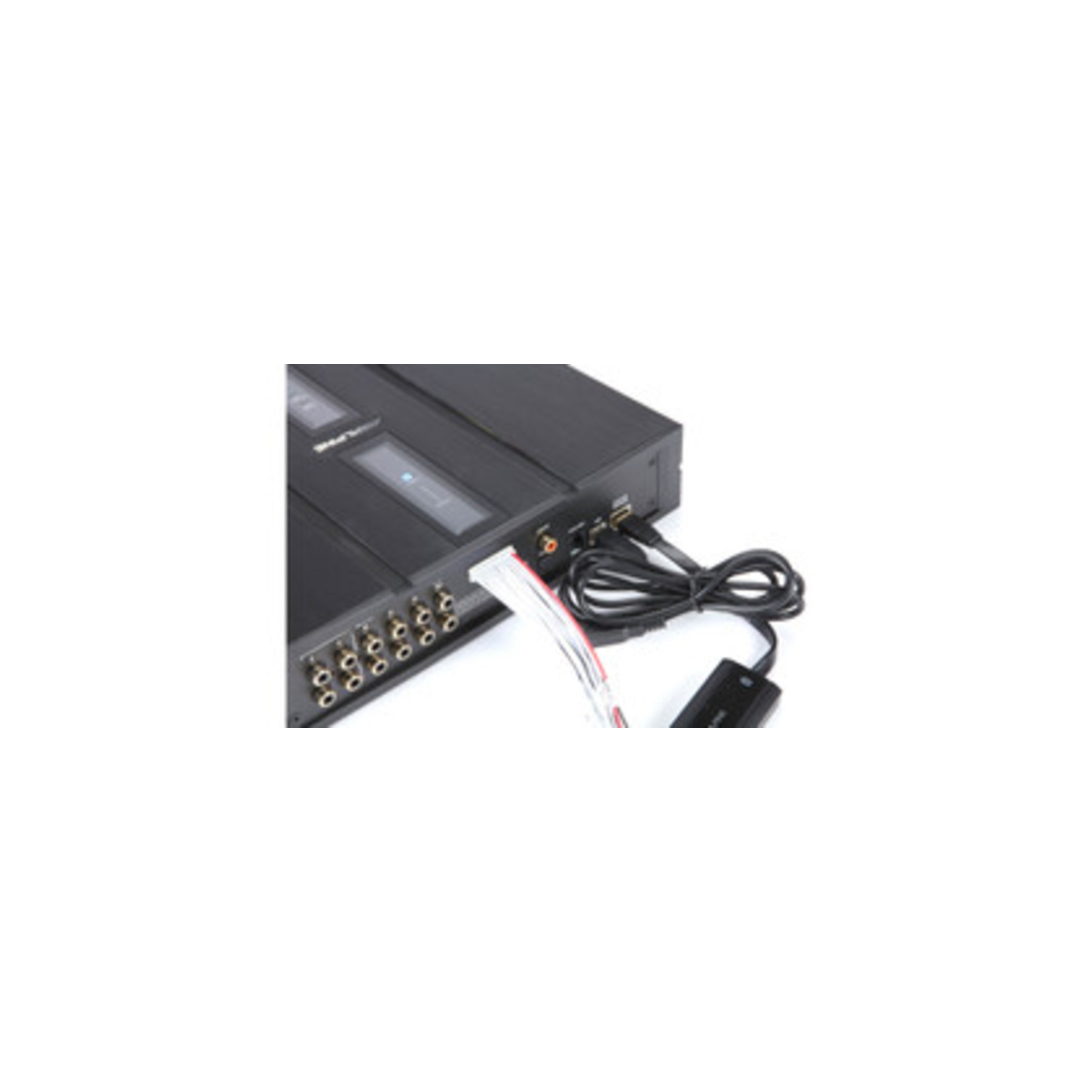

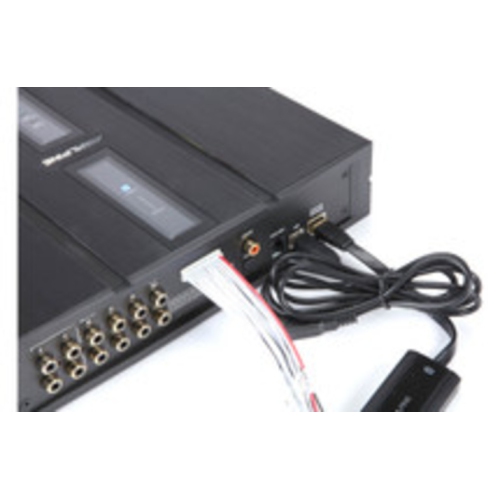

6" 26-Pin Input harness
Bluetooth module with attached 6" cable (RJ-45)
5' USB cable (type-A to type-B)
2 Mounting brackets
Four 3/4" screws
Four 6mm machine screws
4 Spare speaker output set-screws
1/8" Brass plug
Quick Reference Guide
Guide addendum
Warranty information
Registration information
