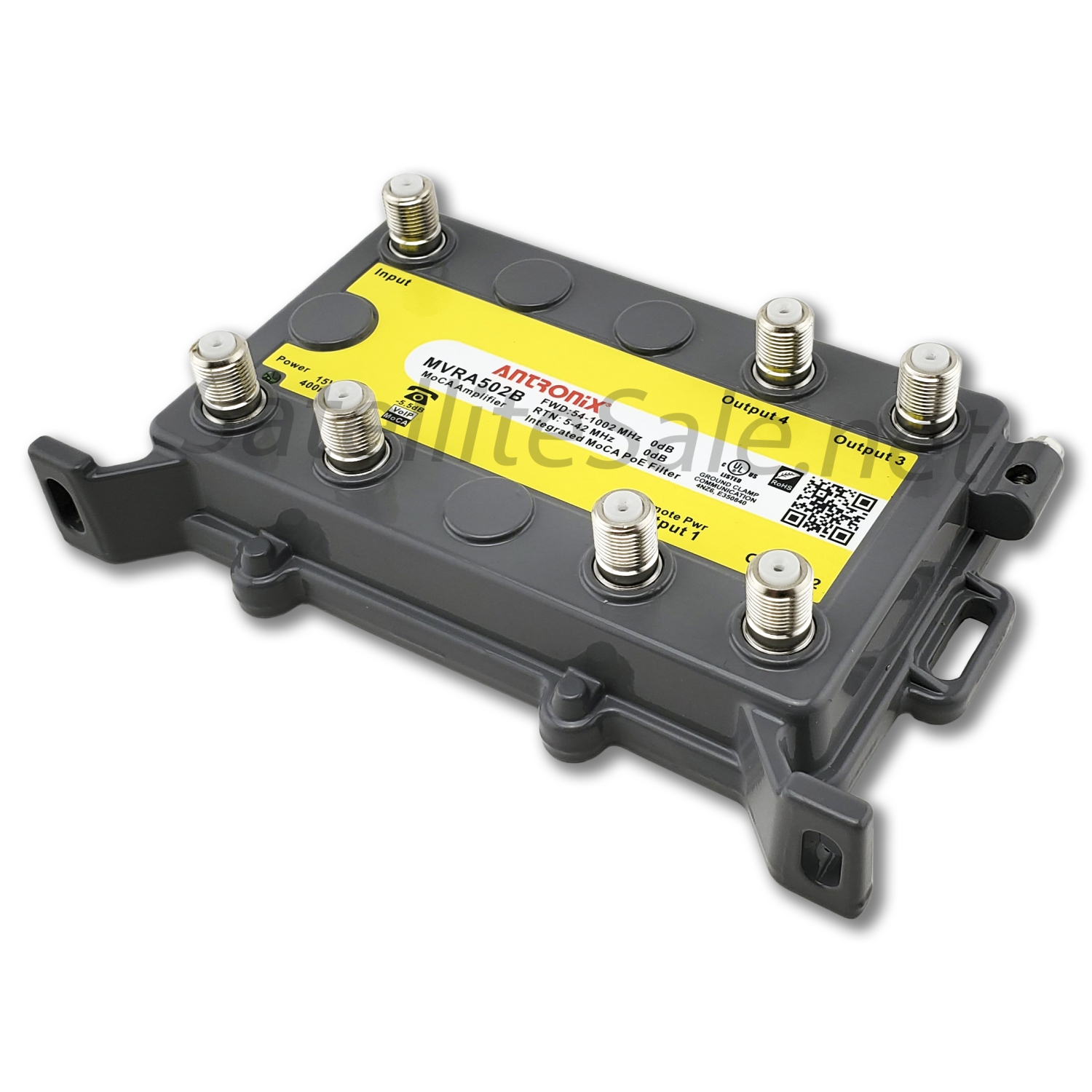

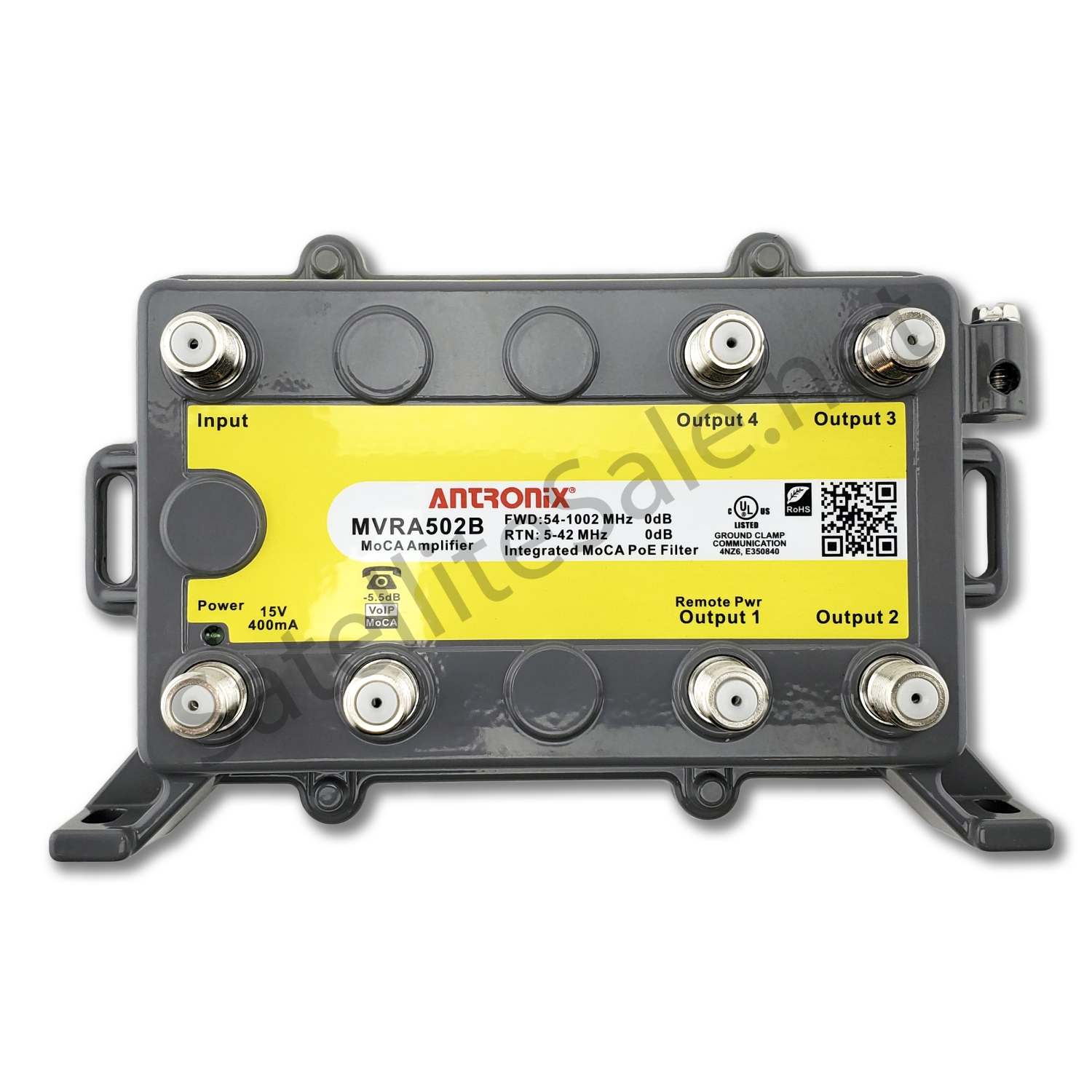

Antronix MVRA502B/ACP-EZ MoCa 4+1 VoIP Port Residential Amplifier

With MoCA having widespread deployment for high speed in-home networking, this amplifier has enhanced performance in the MoCA band to optimize the data rates for video sharing, multi-room DVR service, video conferencing and other MoCA applications. The amplifier has four amplified output ports and a reliable passive VoIP port, which maintains RF integrity even when power is disrupted to the amplifier. The passive VoIP port provides MoCA path to the amplified output ports to ensure full MoCA compatibility. This amplifier utilizes the Antronix patented CamPort®. This autoseizing F-port ensures maximum contact area and reliability for multimedia applications. The amplifier can be mounted in an all-ports-down configuration which allows for ease of installation in a NID enclosure. The integrated MoCA point of entry filter prevents MoCA signals from interfering with an adjacent subscriber.

• MoCA Enhanced

Optimized RF performance in the MoCA band ensures maximum data rates for MoCA enabled devices. Integrated MoCA point of entry filter prevents MoCA signals from interfering with adjacent subscribers.

• Passive VoIP Port for Critical Voice Service

The passive VoIP port provides continuous service when power is disrupted to maintain critical voice service. The VoIP port also supports MoCA band communications to the amplified output ports.

• Self-Terminating Internal Switch

An internal self-terminating switch provides excellent bi-directional RF performance between the input port and VoIP port even when power is disrupted.

• Unity Gain Forward and Return

Active gain in the forward and return band provides unity gain in both directions for ease of installation.

• CamPort® Auto-Seizing F-port

Patented auto-seizing brass F-port features a “Cam Activated Mechanism” to provide full contact pressure (> 2000 grams) on the center conductor for maximum reliability.
