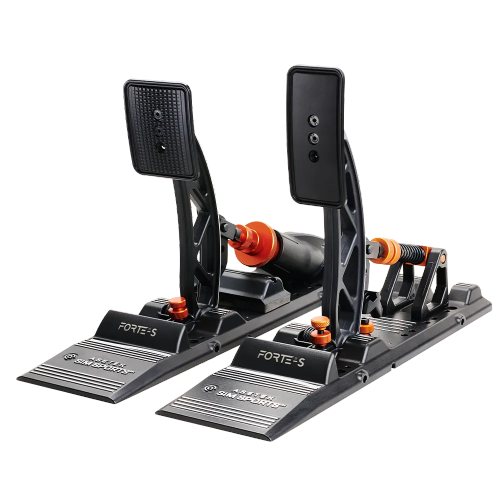

Pedals Specs
Exquisite, radical, and minimalistic Danish industrial design
Made in Denmark
Adjustable pedal stops
Adjustable travel settings
All-black anodized aluminum pedal base, pedal arms,, with CNC machined contrast cut
All-black anodized aluminum smooth and sock friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically.
Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
All adjustable mechanical features are by default colored orange
Inhouse-developed electronics with 16-bit resolution.
Easy to add clutch pedal to the Forte Throttle & Brake combo
Sustainable manufacturing with 100% on-site re-use of waste material
Designed and tested to +1,000,000 activations, which far exceeds any race car specification
Brake System

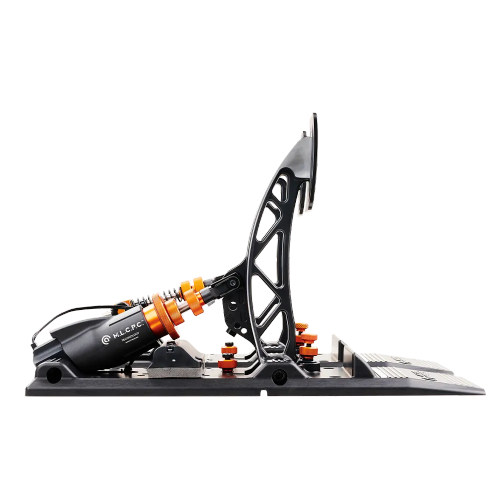

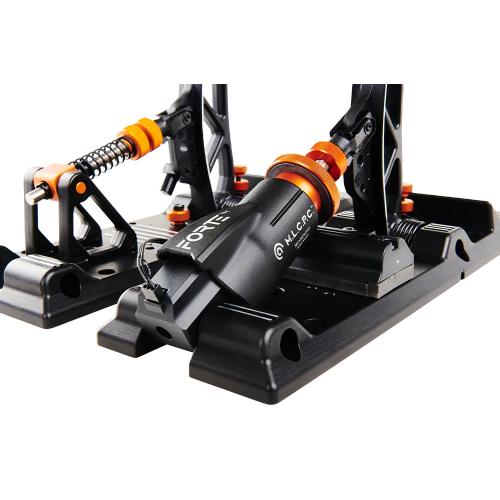

The M.L.C.P.C. (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder gives you the experience of driving a real racecar
Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
Load cell will sense up to 180 kg of force on the face of the pedal plate with hardest elastomer 4000N depressed 12mm / until 2nd stage is engaged
Geared ratio between pedal pressure and load cell deflection ensuring constant and full resolution to any user independent of elastomer hardness. 4000 points in only 12mm inside the M.L.C.P.C cylinder from released pedal to 2nd stage 1/5th of a human hair
Two-stage system that mimics the hard- and soft stagesof a real racecar
Two interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic racecar feel as well as not overloading the elastomers
Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Throttle System

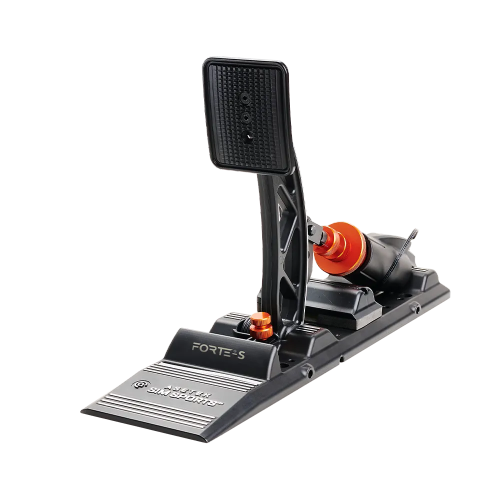

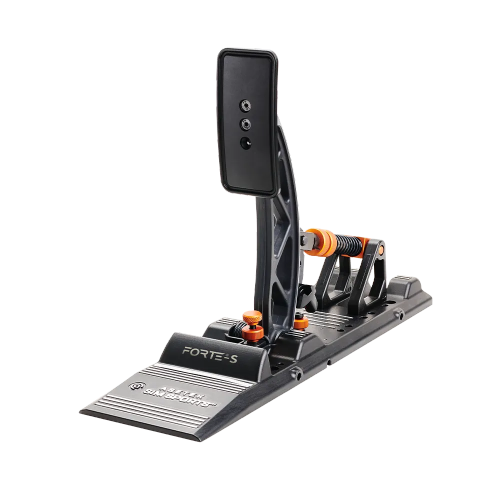

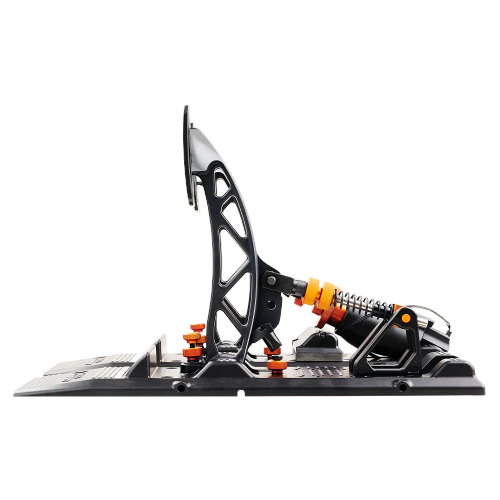

Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
Sustainable manufacturing with 100% on-site re-use of waste material
16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
Custom throttle curves can be adjusted and 100% customized in the RaceHub software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
Adjustable pedal hardness
Adjustable pedal travel
Adjustable pedal stop
Interchangeable spring for bigger step in pedal hardness
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
