Features
Gigabit Wi-Fi for 8K Streaming - 5,400Mbps Wi-Fi for faster browsing, streamings, and downloading, all at the same time.
Wi-Fi 6 Technology – Wi-Fi 6 (802.11ax) features advanced technologies, including OFDMA, MU-MIMO, HT160, and 1024-QAM, drastically increasing the speed and efficiency of your entire network
Fully Featured Wi-Fi 6 - Equips with the top structure of 4T4R and HT160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
More Devices with Less Lag - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
Extensive Coverage - 6× antennas and Beamforming ensure broad coverage.
More Vents, Less Heat - Improved vents area unleash the full power of the whole machine.
Powerful CPU - 1.5 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
USB Sharing - 1× USB 3.0 port enables easy media sharing and private cloud building.
WPA3 Security - The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.
Specification
WIRELESS
StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi SpeedsAX5400
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi CapacityHigh
Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working ModesRouter Mode
Access Point Mode
HARDWARE
Processor1.5 GHz Triple-Core CPU

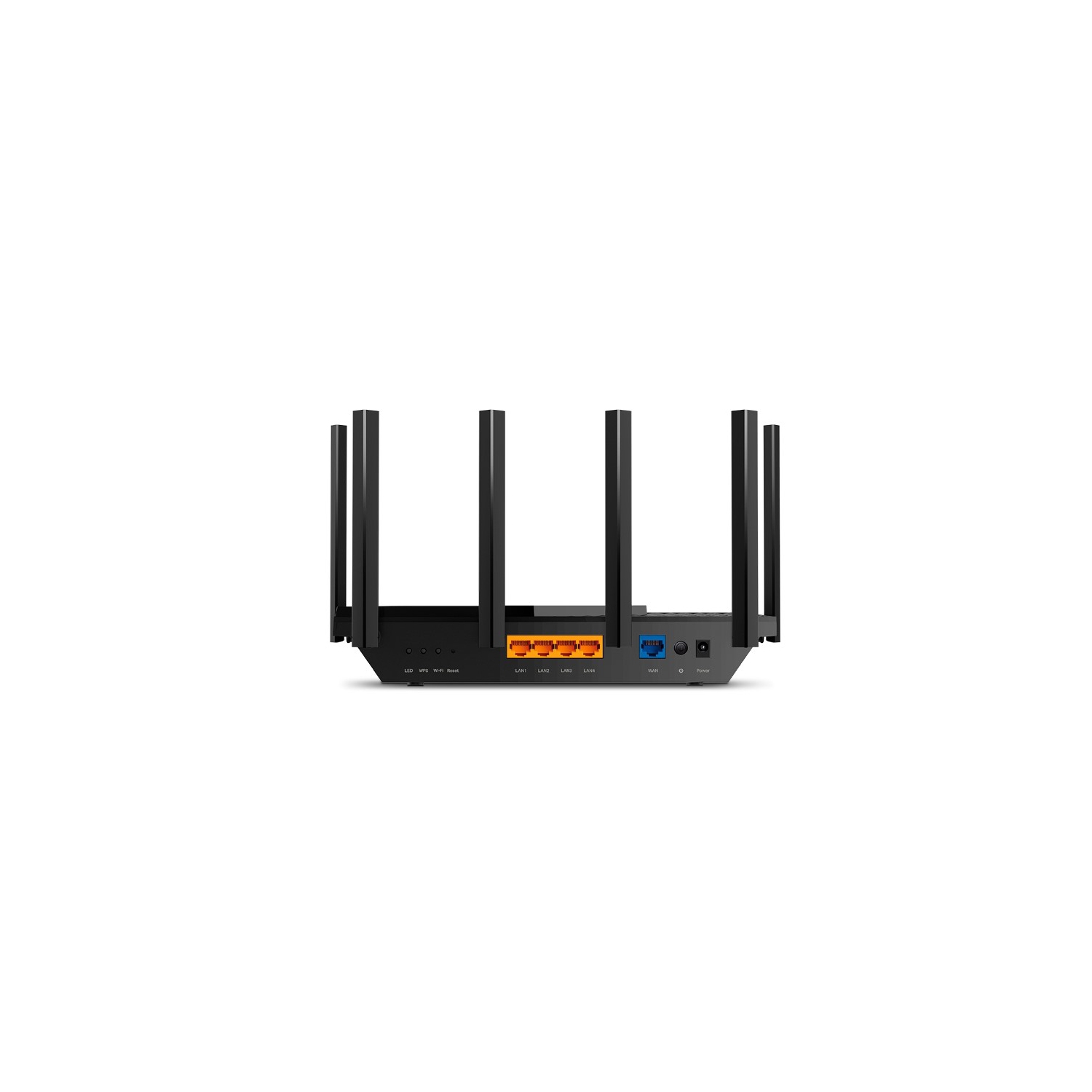

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports

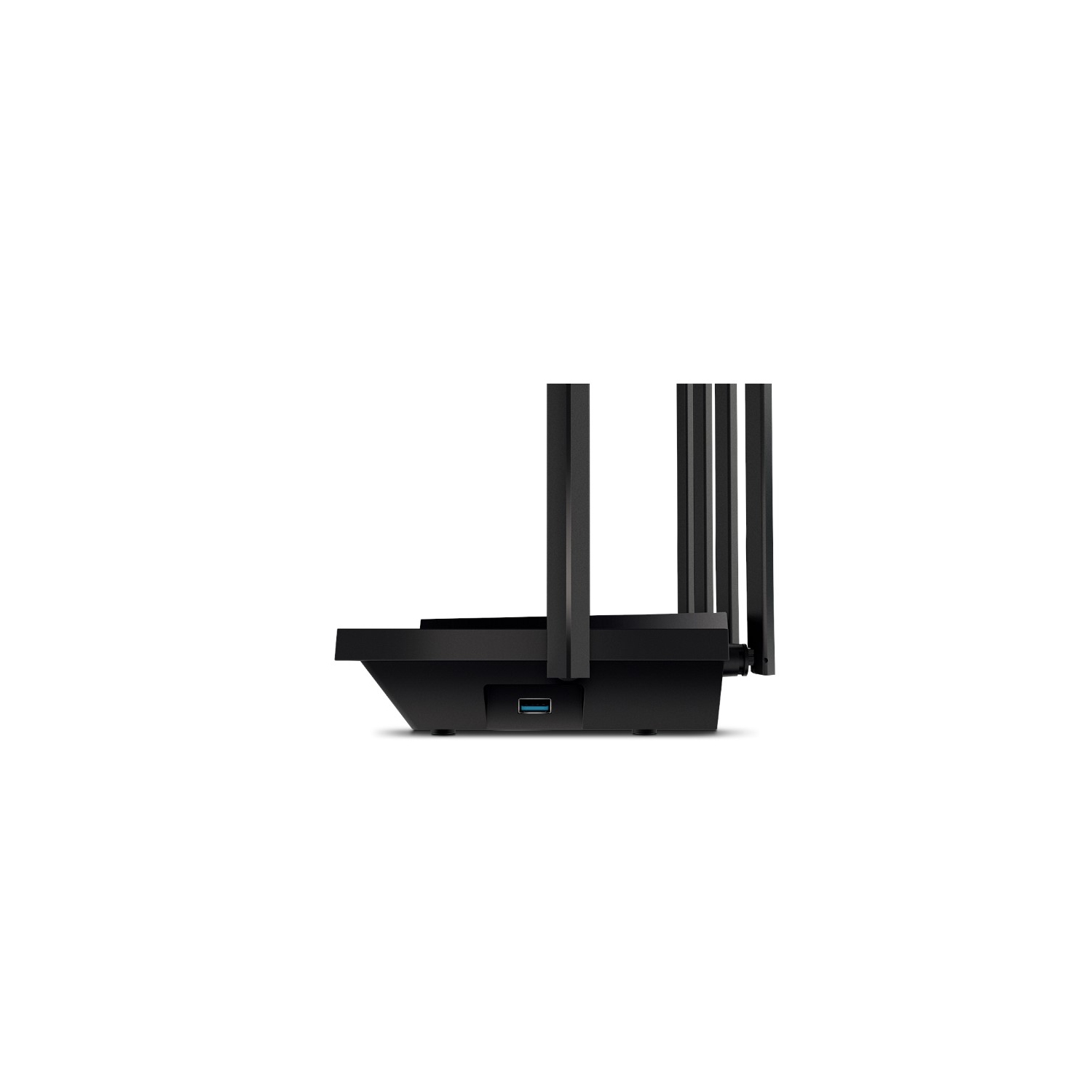

USB Support1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
ButtonsWi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power12 V ⎓ 2.5 A
SECURITY
WiFi EncryptionWPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
Service KitsHomeShield
Learn More>
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Learn More>
All OneMesh Products>
