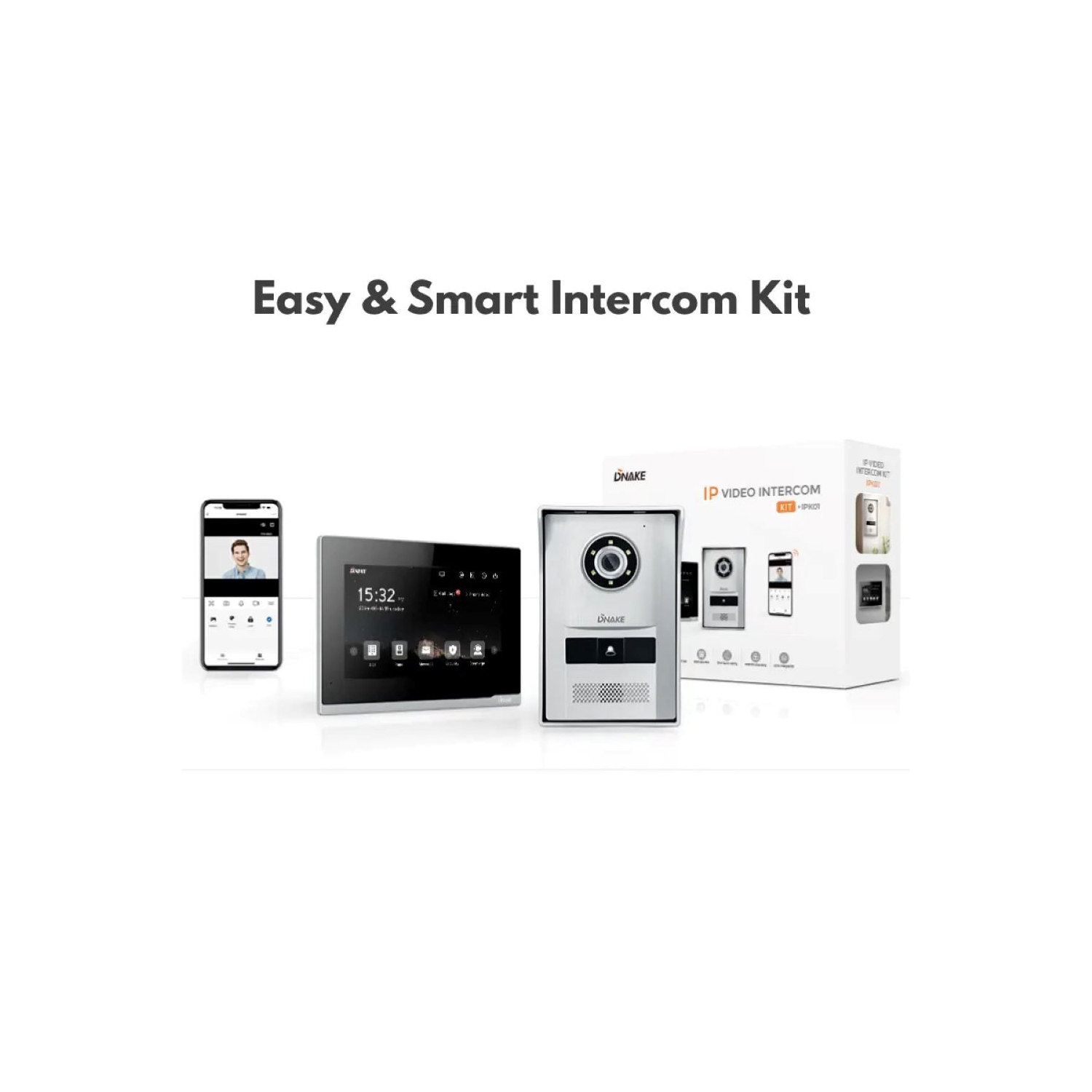

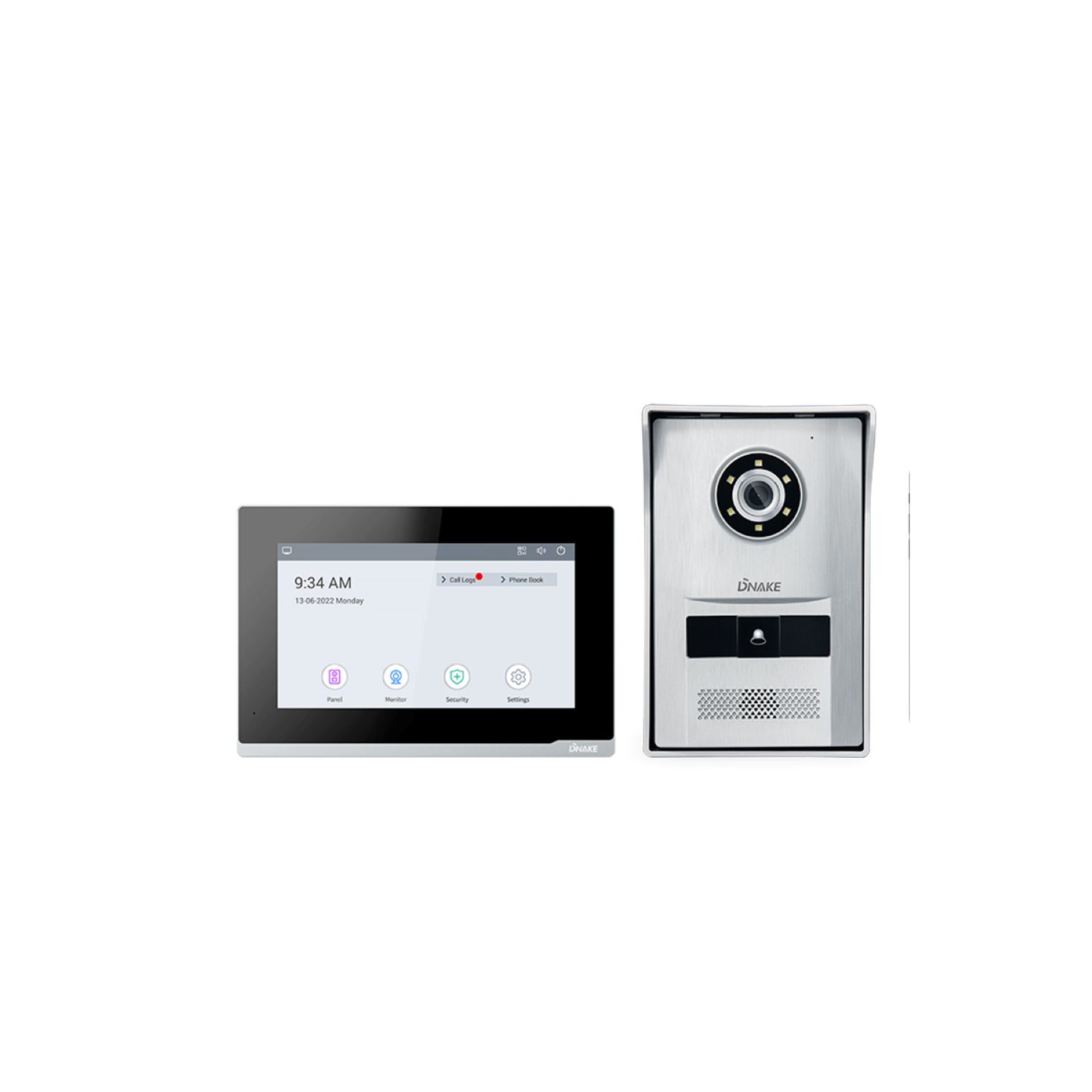

Overview: The Door Station 280SD-R2 and Indoor Monitor E216 are cutting-edge intercom devices designed to enhance communication and security for homes and businesses. Combining ease of use with robust features, they provide a comprehensive solution for entry management and surveillance.
Key Features:
Simple Installation, Maintenance & Wiring:
Both devices are designed for quick and straightforward installation, minimizing setup time. Clear instructions simplify the wiring process, ensuring that users can easily integrate these systems into their existing infrastructure.
One-Touch Calling, Talking, and Unlocking:
The Door Station allows users to initiate calls, communicate, and unlock doors with a single touch, streamlining the entry process. This convenience enhances accessibility and security, making it ideal for busy environments.
Convenient Remote Control via Mobile App:
Manage your intercom system from anywhere using a dedicated mobile app. This feature enables remote door unlocking, call management, and real-time notifications, providing users with flexibility and peace of mind.
Intuitive Step-by-Step Configuration:
Setting up the system is hassle-free, thanks to an intuitive configuration process. Users are guided through each step, making it accessible even for those with limited technical knowledge.
User-Friendly Navigation and Interface:
The Indoor Monitor E216 features a 7-inch capacitive touch screen that supports easy navigation. The interface is designed for seamless interaction, allowing users to quickly access features and functions.
CCTV and Alarm Integration:

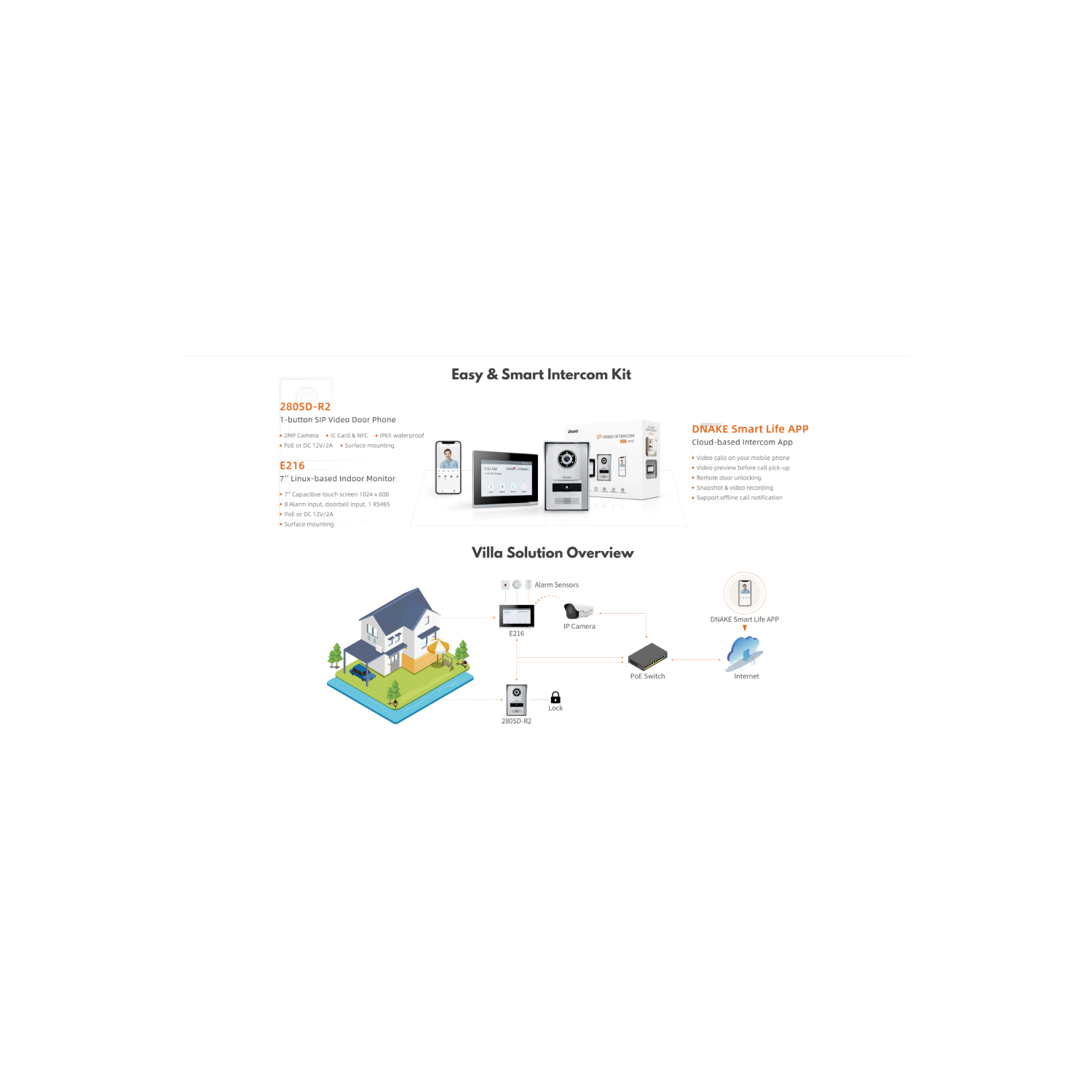

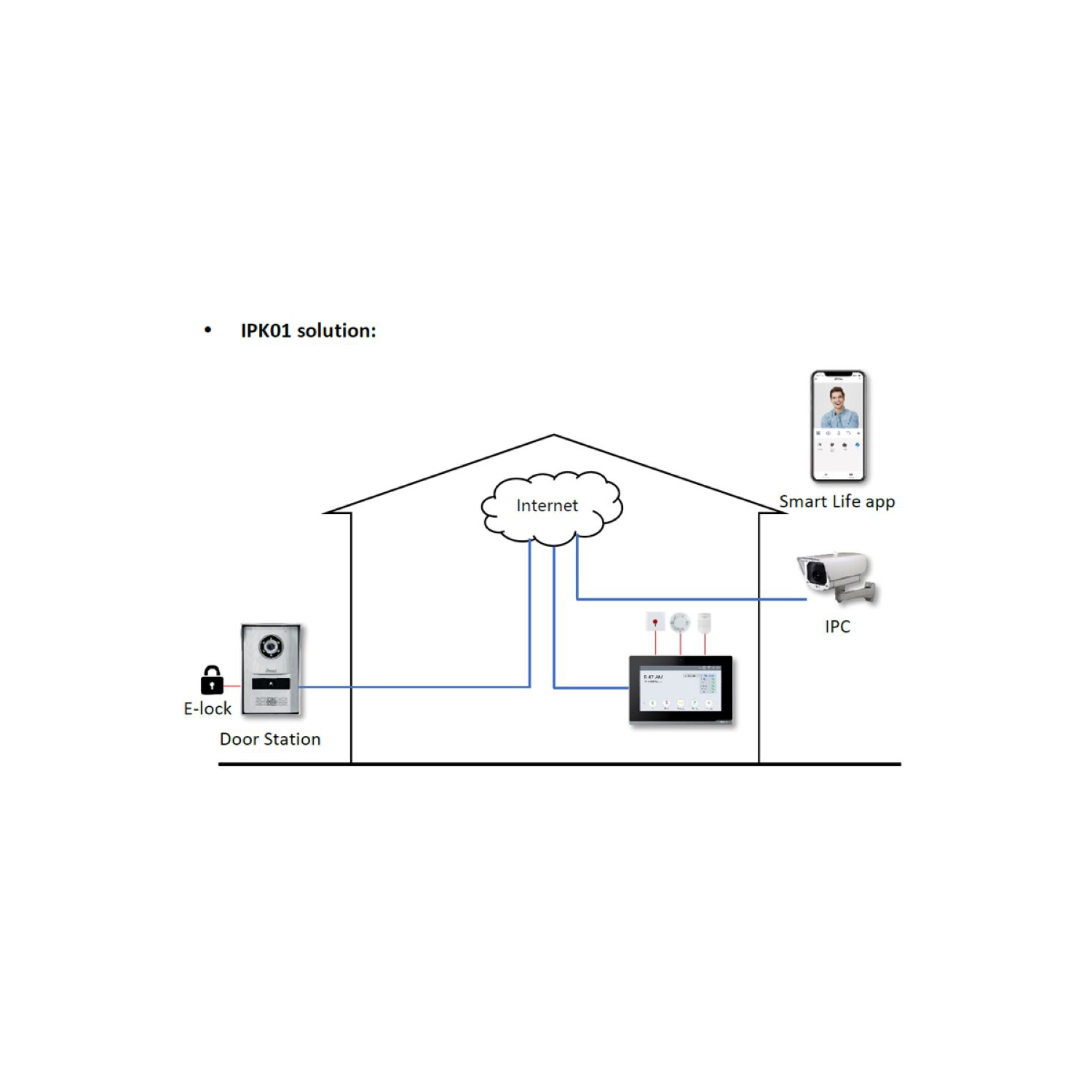

The system supports integration with existing CCTV and alarm systems, providing a holistic security solution. This feature allows for comprehensive monitoring and rapid response to any security events.
Expandable with Other Intercom Devices:
The Door Station 280SD-R2 is compatible with additional intercom devices, enabling users to expand their system as needed. This scalability ensures that the solution can grow with the user's requirements.
Standard PoE:
Both devices support Power over Ethernet (PoE), simplifying power management and reducing the need for additional electrical wiring. Alternatively, they can also be powered by a DC supply.
Physical Properties:
Door Station 280SD-R2:
System: Linux
Memory: 64MB RAM, 128MB ROM
Front Panel: Durable plastic
Power Supply: PoE (802.3af) or DC 12V/2A
Camera: 2MP CMOS with 1280 x 720 video resolution
Viewing Angle: 100° (D)
Door Entry: IC card (13.56MHz) and NFC capability
IP Rating: IP65, weatherproof and suitable for outdoor use
Installation: Semi-flush mounting
Dimensions: 170.5 x 111 x 38.6 mm
Operating Temperature: -40℃ to +55℃
Storage Temperature: -40℃ to +70℃
Humidity: 10%-90% (non-condensing)
Indoor Monitor E216:
System: Linux
Display: 7-inch TFT LCD with a resolution of 1024 x 600
Screen Type: Capacitive touch screen
Memory: 64MB RAM, 128MB ROM
Front Panel: Plastic
Power Supply: PoE (802.3af) or DC 12V/2A
Installation: Surface mounting or desktop
Dimensions: 195 x 130 x 14.5 mm
Operating Temperature: -10℃ to +55℃
Storage Temperature: -40℃ to +70℃
Humidity: 10%-90% (non-condensing)
Audio & Video:
Audio Codec: G.711
Video Codec: H.264
Light Compensation: LED white light for low-light conditions
Networking Protocols:
ONVIF (for Door Station), SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP.
Ports:
Ethernet Port: 1 x RJ45 (10/100 Mbps adaptive)
RS485 Port: 1
Relay Out: 1
Exit Button: 1
Door Magnetic: 1
