DS18’s PRO-D22Ti.8 is the only choice for those who demand the best from their systems. Its 2" throat diameter ensures maximum sound projection so your music reaches every corner of the venue. The bolt-on installation type guarantees hassle-free setup so you can focus on getting LOUD!

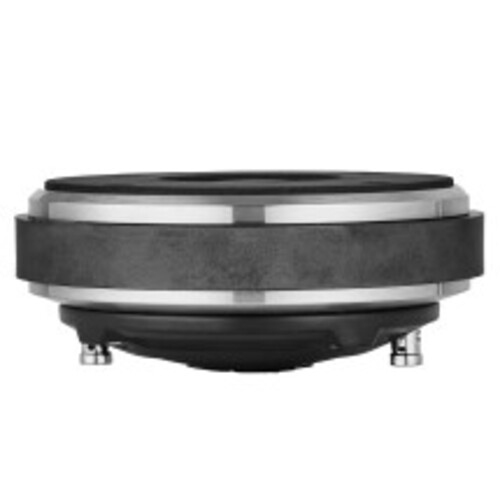

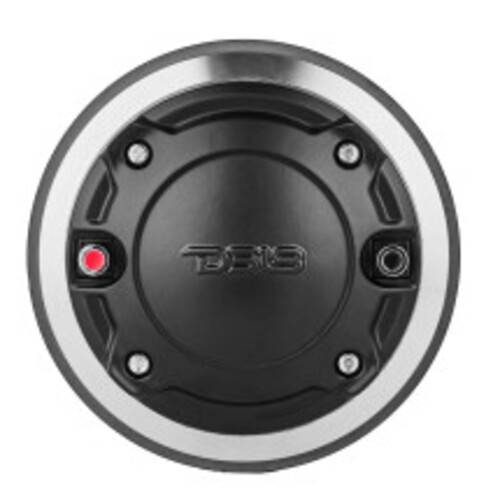

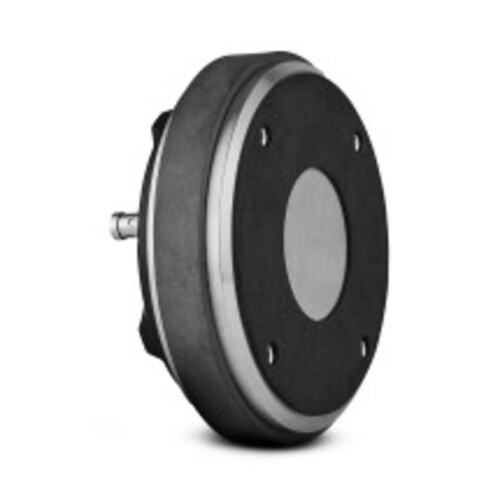

DS18 PRO-D22TI.8 2” Throat Bolt-On Compression Driver - 8 Ohm

Model: PRO-D22TI.8
Web Code: 19435706
Sold and shipped by | 4.5 seller rating (158 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

About: DS18 PRO-D22TI.8 2” Throat Bolt-On Compression Driver - 8 Ohm

DS18’s PRO-D22Ti.8 is the only choice for those who demand the best from their systems. Its 2" throat diameter ensures maximum sound projection so your music reaches every corner of the venue. The bolt-on installation type guarantees hassle-free setup so you can focus on getting LOUD!

With a nominal impedance of 8 Ohms and an AES power handling capability of 160W, DS18’s PRO-D22Ti.8 is built to integrate easily into the most demanding audio setups. Its program power handling of 320W and peak power handling of 640W ensure a dynamic and immersive listening experience.

Equipped with a 2" voice coil made from high-quality Titanium, this compression driver provides excellent heat resistance and durability, for years of reliable performance. The titanium diaphragm delivers crystal-clear highs with exceptional accuracy, allowing you to hear every detail in your music.

The PRO-D22Ti.8 features a robust ferrite magnet that enhances efficiency and magnet weight of 35 Oz for precise control over the sound output. The aluminum body not only adds durability but also contributes to reducing unwanted resonance for cleaner sound reproduction.

Upgrade with DS18’s PRO-D22Ti.8 2" and experience audio like never before.

Product Highlights:

2" Compression Driver

RMS Power: 320 Watts(640 Watts Peak)

Impedance: 8 Ohm ~ 109dB

Ferrite Magnet - Titanium Diaphragm

Bolt On

Easily Repaired With The PRO-D22Ti.8VC

Specifications:

SKU: PRO-D22TI.8

Throat Diameter: 2" / 50.8mm

Installation Type: Bolt-On

Nominal Impedance: 8 Ohms

AES Power handling: 160W

Program Power Handling: 320W

Peak Power handling: 640W

Sensitivity (1w/1m): 109dB

Frequency Response: 630Hz-20KHz

Recommended Hi Pass Crossover: 800Hz

Sold in Pair or Single: Single

Body / Features:

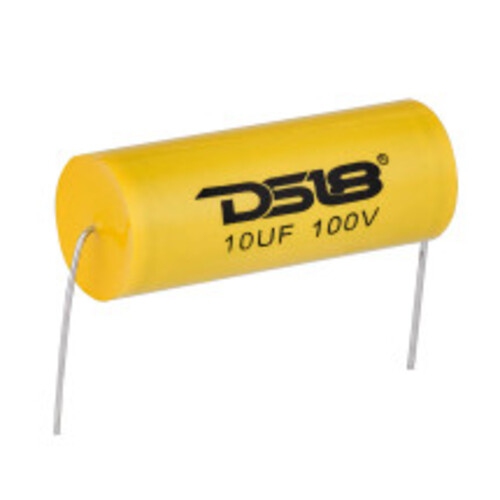

Filter (Bass Blocker): 10Uf/100V

Body Material: Aluminum

Body Color / Finish: Black / Machined

Motor:

Voice Coil Diameter: 2" / 50.8mm

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Titanium

Magnet Material: Ferrite

Magnet Weight: 35 oz

Measurements:

Overall Diameter: 5.31" / 135mm

Overall Depth: 2.08" / 53mm

Bolt Pattern/Type: 4xM6 - 4" /102mm
