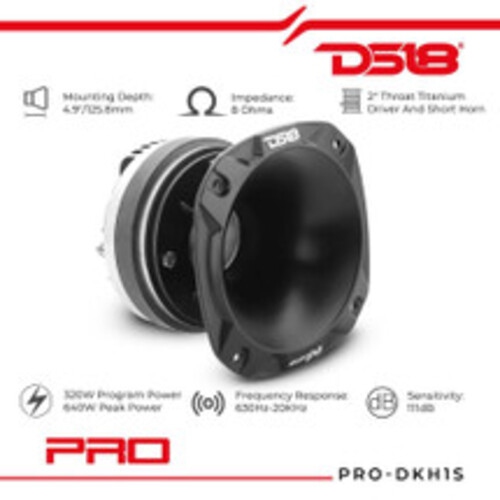

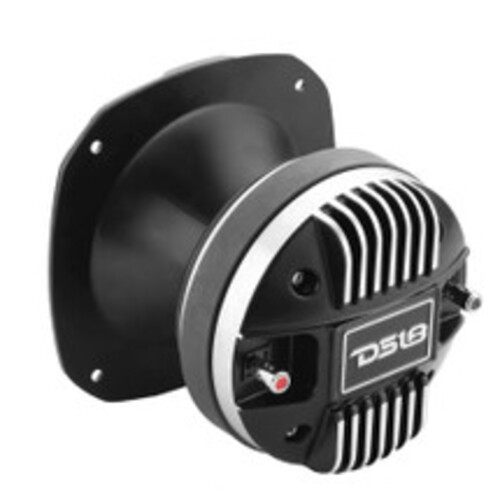

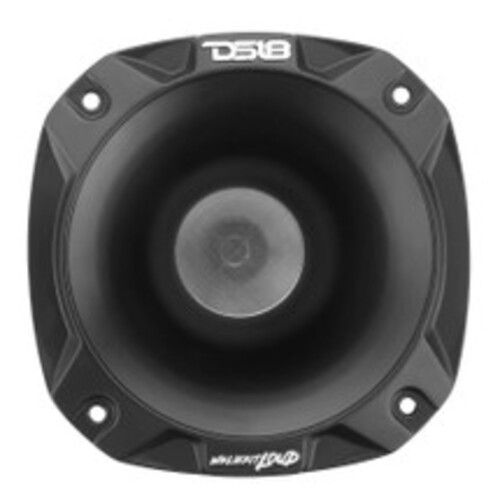

DS18 PRO-DKH1S 2" Driver Short Horn Kit - 8 Ohm

About: DS18 PRO-DKH1S 2" Driver Short Horn Kit (PRO-D1 + PRO-HA102/BK) - 8 Ohm

Introducing DS18’s PRO-DKH1S, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, this product combines a 2" bolt-on throat compression driver and a PRO-HA102/BK horn, to help deliver a rich, powerful, and immersive sound experience.

Built with a titanium VC and diaphragm, the DS18 PRO-DKH1S is capable of handling Peak Powers of upto 640W, making it one of the most powerful compression drivers in the market. The PRO-DKH1 is not just about power, but also about delivering crystal clear and distortion-free sound. With a sensitivity of 111 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1S guarantees an EXTREMELY LOUD and exceptional listening experience.

DS18’s PRO-DKH1S includes the DS18 DKH1 neodymium driver plus our newly redesigned shorty throat, so you only need 4.9” mounting depth to mount these ear-ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency.

The DS18 PRO-DKH1S is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03" voice coil ensures that the product operates efficiently and reliably, even at high volumes and extended playtimes.

Whether you're a professional audio installer or a car enthusiast, the DS18 PRO-DKH1S is the perfect addition to your sound system. The PRO-DKH1S is bolt on so you can spend less time in installation, and more time enjoying your system.

Product Highlights:

2" Compression Driver with Horn

1 X PRO-D1

1 X PRO-HA52/BK

RMS Power: 320 Watts (640 Watts Peak)

Impedance: 8 Ohm ~ 110dB

Ferrite Magnet

Specifications:

Nominal Impedance: 8 Ohm

AES Power: 160 Watts

Program Power Handling: 320 Watts

Peak Power Handling: 640 Watts

Sensitivity (1w/1m): 110 dB

Frequency Response: 630Hz-20KHz

Recommended Hi Pass Crossover: 900Hz

Motor:

Voice Coil Diameter: 2.03" (51.5 mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Titanium

Magnet Material: Ferrite

Magnet Weight: 35 oz

Body Material: Aluminum

Horn Specifications:

Nominal Diameter: 6.5" (165 mm)

Throat Diameter: 2" (50.8 mm)

Sound Coverage: 57° Rounded

Body Material: Aluminum

Color | Finish: Black Satin

Measurements:

Overall Diameter: 6.37" (162 mm)

Overall Depth: 5.3" (134.7 mm)

Mounting Depth: 4.9" (125.8 mm)

Mounting Hole Diameter: 5.7" (145 mm)

Bolt Pattern / Type: 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole

Product Weight: 7.5 lbs

Product Dimensions: 7" x 7" x 6"
