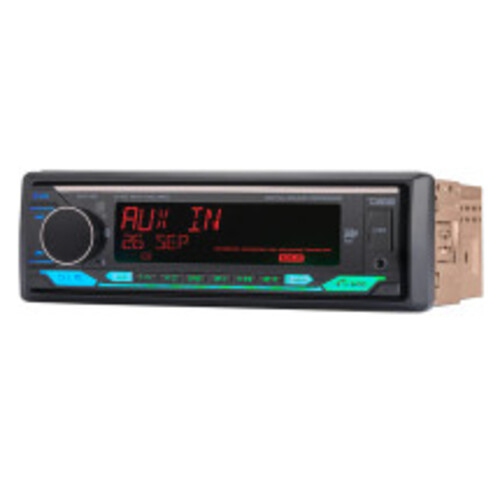

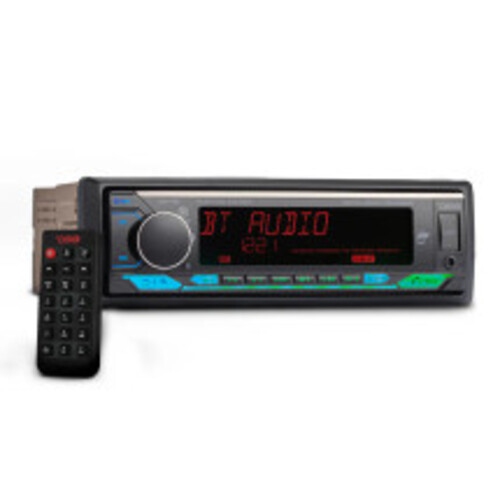

About: DS18 SDX-P100 Single Din AM/FM Radio Digital Media Receiver
Upgrade your sound system with DS18’s SDX-P100 for the ultimate in-car audio experience. This mech-less media receiver gives you full control over your audio. Enhancing its versatility, the SDX-P100 features 3.5V RCA outputs, providing seamless connectivity options for an even more dynamic audio setup. The single DIN in-dash mounting ensures a seamless fit into your vehicle's console, making installation a breeze.
Tune in to your favorite radio stations with the AM/FM radio function, offering 30 memory stations for easy access to your go-to channels. Plus, the USB reader allows you to play media files directly from a USB drive, supporting formats like FLAC, WAV, AAC, APE, and MP3. Stream music wirelessly via Bluetooth and enjoy hands-free calling for added convenience and safety.
The 4" LCD display delivers crystal-clear visuals, while the dynamic multi-color LED backlight adds a touch of personalization to your dashboard. With 3-zone RGB illumination, you can choose from a wide range of colors to match your mood or interior.
Product Highlights:
Digital Media Single Din Receiver
Mech-Less ~ Remote Control APP
BT ~ USB ~ AUX
DSP ~ EQ ~ AM/FM
SUB Output ~ SWC Output
Multi Color Illumination~ 4" Display
Specifications:
Nominal DIN Size: 1-DIN
Rated Power Voltage: 14.4V
Voltage Operation: 9.6-15 Volts
Maximum Current Consumption: 15A
Temperature Operation: 0~60°C / 32~140°F
Screen Size: 4" / 104mm
Display Type: LCD Dots
Buttons / Controls: ABS
Backlight Illumination Type: RGB / 3 Zones
Body Material / Color / Finish: Steel / Bronze
Audio Specifications:
Maximum Power Output (Peak): 4x40W
Continuous Power Output (RMS): 4x15W
Minimum Impedance: 4 Ohms
Frequency Response: 20Hz-20KHz
Pre-Output Level (RCA): 3V / 3.5V (Subwoofer)
Equalizer Bands: 24 Bands
Equalizer Gain: + / - 9dB
Crossover: 3-Way
Crossover Slope: 6 / 12 / 24 dB/Oct
Time Alignment: 0~25ms / 0~850cm
Audio Control: Subwoofer Level, Fader, Balance, Loudness
Tuner & BT Specifications:
Frequency Range (FM): 87.5 - 108.0 MHz
Frequency Range (AM): 522 - 1620 KHz
Presets Memory: 18 FM / 12 AM
Region: Europe, America, Asia, Russia
Sensitivity Adjustment: Local / DX
Version: 4.2
Services: Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols: A2DP, AVRCP, HFP
Range: 32ft / 10m
USB / SD Player Specifications:
Type / Class: 2.0, 3.0 / FAT 16, FAT32
Format Files Supported: FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader: 64 Gb
Max Current USB Charger: 1A
Number of Ports: 1 (Front)
Connectivity Specifications:
A/V Aux Input: Yes, Front 3.5mm Jack (2V Max)
Microphone: Yes, Built-In / External Mic Input
Remote Control (SWC): Yes, 3.5mm Jack Input
Remote Control (Handset): Yes, Card Type with Rubber Buttons
APP Control: Yes, (Android Devices)

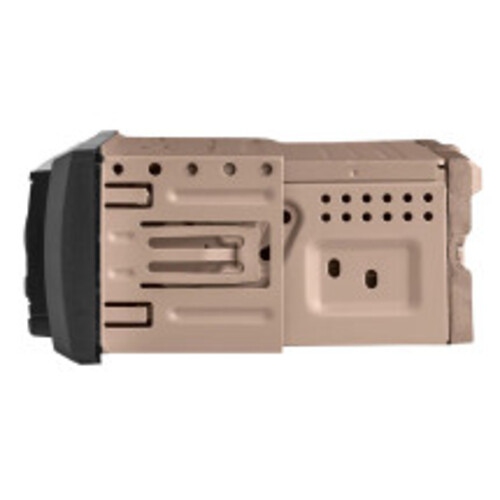

Measurements:
Overall Width (Chassis): 7" (178 mm)
Overall Height (Chassis): 1.96" (50 mm)
Overall Depth (Chassis): 4" (104 mm)
Overall Width (Bezel Frame): 7.4" (188 mm)
Overall Height (Bezel Frame): 2.2" (58 mm)
Overall Depth (Bezel Frame): 0.98" (25 mm)
