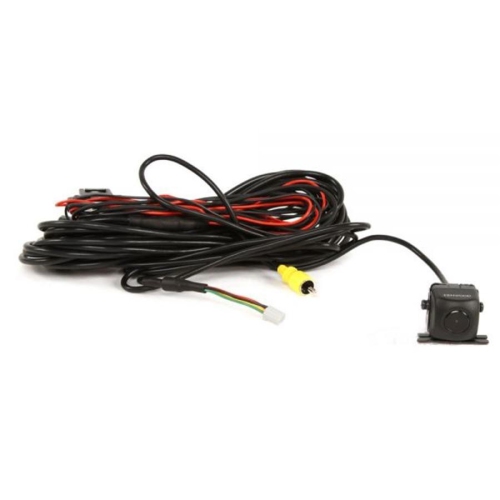

Kenwood CMOS-230 Universal Rear View Camera With 24' Extension Cable, For Car, Black

Kenwood CMOS-230 Universal Rear-View Camera

Model: CMOS-230
Web Code: 11447151
Sold and shipped by | 4.0 seller rating (933 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Universal Rear View Camera With 24' Extension Cable

KEY FEATURES

.Wide-angle mirror image

.1/3.6" Colour CMOS sensor

.Waterproof unit with flexible mount base

.NTSC Video Signal Out (RCA)

SPECIFICATIONS

CAMERA UNIT

Camera Type: 1/3.6" colour CMOS sensor

Colour type: Yes

Effective number of pixels roughly: 330000

High sensitivity Pixels: Yes

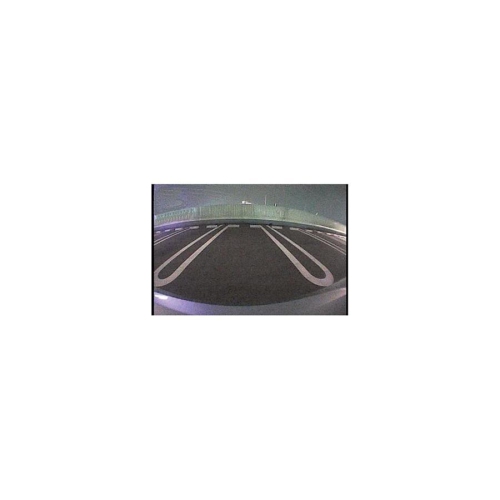

Output video: wide-angle mirror image

Waterproof chassis: Yes

Mounting system: Fexible mount base

Installation positions:Rear

Rear view switching: Reverse line

High voltage protection: Yes

Wide angle lens: Yes

Focal length: f: 1.12mm, F value 2.2

Horizontal Angle view: +/- 128°

Vertical Angle View:+/- 103°

Illumination range: approx. 0.9 to 100000 lux

Iris System: Electronic

White balance: Automatically

Scanning System: Interlace

Synchronizing System: Internal

Video output level: 1Vpp, 75?

Video signal format: NTSC (Mirror view)

Connection cable (DC+video): 9 m

GENERAL SPECIFICATIONS

Operating voltage: 14.5V (9 ~ 16V Allowable)

Maximum Current Consumption: 0.05A

Dimensions (WxHxD): 23.4 x 23.4 x 23.9mm

Weight: 22 gr.

Operation Temperature Range: -30°C ~ 70°C

Storage Temperature Range: -40°C ~ 80°C

Product Condition
Brand New
