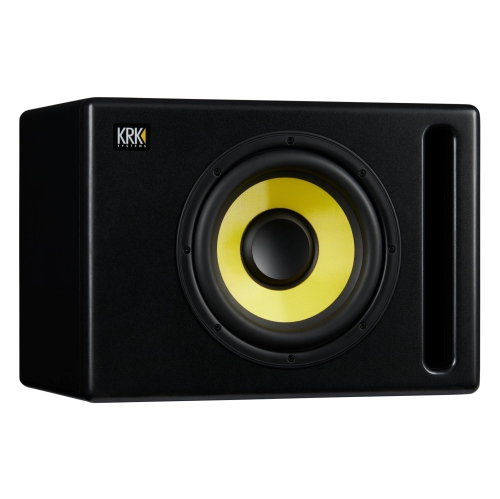

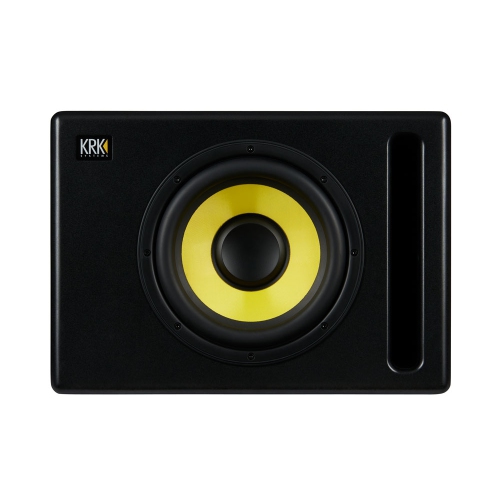

KRK S10.4 Powered Studio Subwoofer

The S10.4 powered studio subwoofer builds upon KRK's legacy for sonic accuracy and performance. The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control and punch. The four-position selectable crossover makes it easy to adjust the subwoofer setting to your existing monitors.

Pairing the S10.4 with KRK or another studio monitors delivers an optimized listening and mixing experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. KRK's S10.4 subwoofer doesn't just deliver precise bass and a rich feature set: it's the next dimension in subwoofer performance.

Bypass Footswitch

Mix with confidence. The bypass footswitch control allows you to quickly mute the sub and send full-range audio to your recording monitors.

Heavy Duty Enclosure

KRK Subwoofers feature reinforced MDF enclosures for maximum strength and durability. Never let a spilled beer or wild ninja roundhouse kick stop your mixing session again.

Front-firing Port

KRK engineered the front port to provide low frequency extension while reducing boundary coupling. The unique shape is optimized to avoid port turbulence.

Plays well with others

Dedicated crossover and optional High-pass filter bypass means that KRK subwoofers are the perfect compliment to powered monitors. From mixing and mastering to sound design, broadcast and production work - KRK has you covered.

Features

* 10" glass aramid composite woofer

* Bass extension to 27Hz with a max SPL of 117.2 dB

* Footswitch control enables/disables sub and crossover filter (footswitch not included)

* Redesigned cabinet with a lower profile and front-firing bass port

* Powerful, lightweight Class D amplification

* Optimized four-position crossover control

* Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs

* Polarity and input sensitivity controls

* Ground lift switch prevents ground loops

Specifications

Configuration: Front Loaded, Vented Subwoofer

System Type: Active Subwoofer

Low-Frequency: 10" Glass Aramid Composite Woofer

Frequency Response: 30Hz - 110Hz

Max Peak SPL: 117.2 dB

Amplifier: Class D

Power Output (Continous): 160 Watts @ 1% THD+N @ 44Hz

Signal to Noise Ratio: 92 dB

Amplifier Distortion (THD + N): < 0.12% @-3dB Of Max Power Output 31Hz-110Hz

Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced

Ground Lift: On/Off

HPF Bypass: With Footswitch Only

Footswitch: Optional

Indicators: Power/Standby

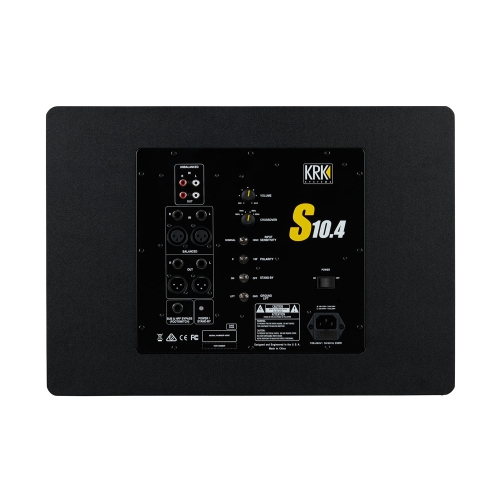

Input Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch

LFE Input: N/A

Output Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R

AC Power Input: 100VAC-240VAC

Enclosure: 15 mm and 18 mm Reinforced MDF

Finish: Black Vinyl Wrap, Baffle - Black Paint

Hardware: EVA Isolation Pad

Dimensions: 13.4375" (341 mm) x 18.875" (479 mm) x 12.1875" (310 mm)

Weight: 35 lb. (15.88 kg.)
