Fluid Pressure MonitorMaretron's Fluid Pressure Monitor is used to adapt up to six pressure transducers to the NMEA 2000® network (pressure transducers sold separately). This allows you to observe fluid pressures and tank levels anywhere on the vessel where there are NMEA 2000® compatible displays. With the appropriate transducer,

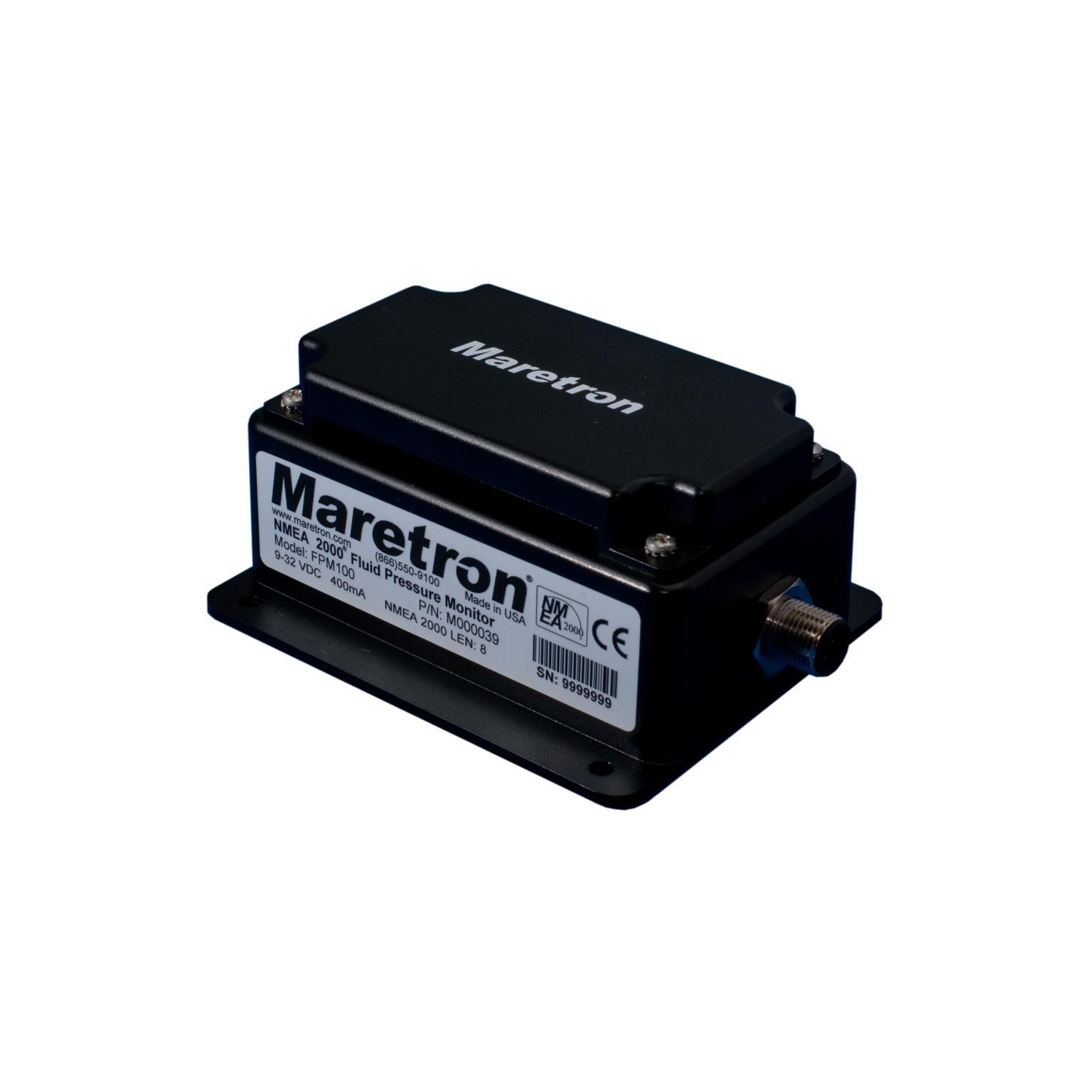

Maretron FPM100 Fluid Pressure Monitor

Model: CW40437
Web Code: 12439150
Sold and shipped by | 4.1 seller rating (311 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Fluid Pressure MonitorMaretron's Fluid Pressure Monitor is used to adapt up to six pressure transducers to the NMEA 2000® network (pressure transducers sold separately). This allows you to observe fluid pressures and tank levels anywhere on the vessel where there are NMEA 2000® compatible displays. With the appropriate transducer, the FPM100 reports either pressure or vacuum for a variety of applications including water pressures, oil pressures, hydraulic pressures, or system vacuum for detecting clogged filters.The FPM100 also has a tank level mode, so that fluid levels in a tank can be monitored via a pressure transducer mounted at the bottom of the tank and transmitted over the NMEA 2000® network. This allows you to monitor the fluid levels in tanks that are extremely deep, have internal structures, or are otherwise not suited for other tank level sensing technologies. In this mode, the FPM100 can be calibrated for irregular tank shapes so that you know the true level of the tanks.The FPM100 is NMEA 2000® certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000® display. The FPM100 is a key component of Maretron's N2KView® vessel monitoring and control system. Features:

Adapts up to six pressure transducers to the NMEA 2000® network

Each channel independently programmed to match pressure transducer characteristics

Each channel independently programmed in pressure/vacuum mode or tank level mode

In Tank Level Mode, measures levels of extremely deep or irregularly shaped tanks

Applications

Water Pressure

Atmospheric Pressure

Compressed Air Pressure

Hydraulic Pressure

Steam Pressure

User Defined Pressure Sources

Fuel Tank Level/Volume Remaining

Fresh Water Tank Level/Volume Remaining

Waste Water Tank Level/Volume Remaining

Product : MARETRON FPM100 FLUID PRESSURE MONITOR Manufacturer : MARETRON Manufacturer Part No : FPM100-01 UPC : 873804002903
