Klipsch 5.1 Home Theater System with Onkyo TX-NR6100 Receiver and Dual Klipsch R50M Speakers

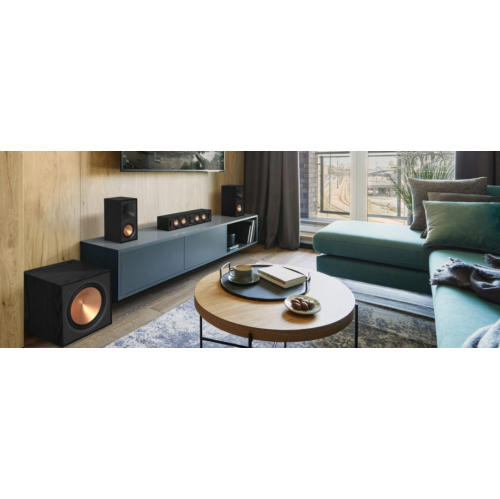

This Klipsch 5.1 home theater system, featuring dual sets of Klipsch R50M speakers, delivers an immersive and well-rounded audio experience. The front and rear speakers work together to create a realistic sound environment, while the center speaker and subwoofer enhance dialogue clarity and bass response, respectively. The Onkyo TX-NR6100 receiver ties everything together, processing and amplifying the audio signals for a cohesive home theater experience.

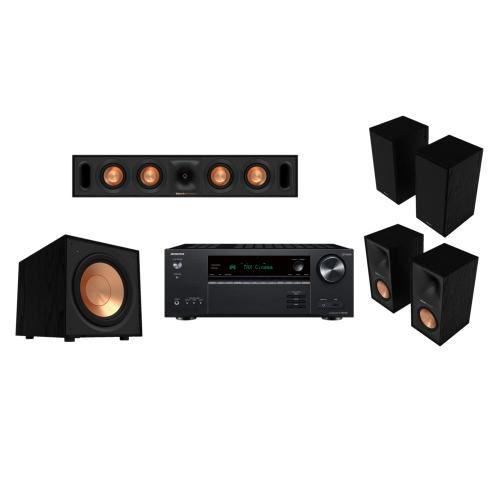

This home theater package includes:

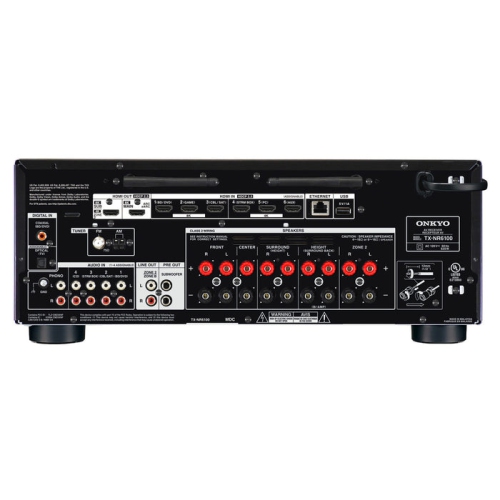

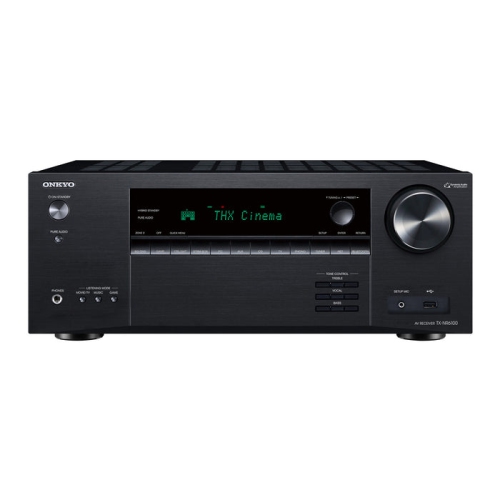

TX-NR6100: The Onkyo TX-NR6100 7.2-Channel THX Certified Network A/V Receiver serves as the central hub for audio and video processing. It supports advanced features such as 8K/60p video pass-through, Dolby Atmos®, and DTS® playback, and multi-room audio streaming via Chromecast built-in™, AirPlay 2, DTS Play-Fi®, and Works with Sonos. The receiver amplifies and directs the audio signal to the appropriate speakers in the setup, providing a high-quality and future-proof solution for your home theater.

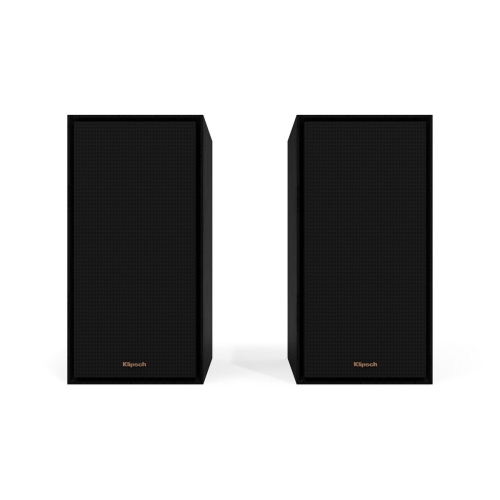

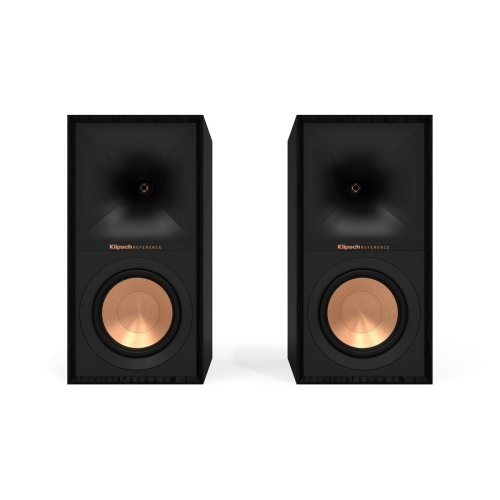

R50M (Front): The first set of R50M speakers serves as the main front left and right channels. These speakers are crucial in delivering the primary stereo sound, handling a significant portion of the movie soundtrack and music playback. They contribute to creating a broad and immersive soundstage.
R50M (Rear): The second set of R50M speakers is used for the rear or surround sound channels. These speakers are essential for creating a sense of space and depth in the audio, providing ambient sounds and effects that immerse the viewer in the middle of the action. They add a three-dimensional quality to the sound.

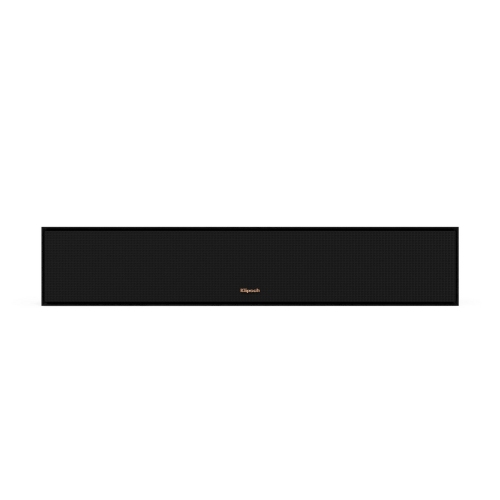

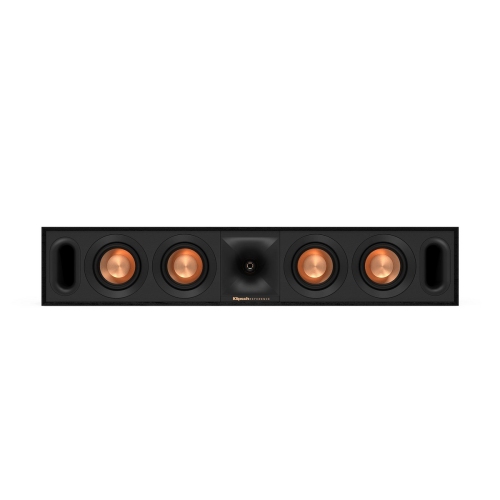

R30C: This is the center channel speaker, responsible for delivering clear dialogues and on-screen sounds. It’s typically placed centrally in relation to the TV or screen, ensuring that dialogue seems to be coming directly from the action on screen.
R101SW: The subwoofer is designed to handle the low-frequency effects and bass. It adds depth to the sound and is crucial for experiencing the full impact of action scenes and music with significant bass content.
100 ft of 14 Gauge OFC Speaker Wire: High-quality, oxygen-free copper speaker wire ensures minimal signal loss and resistance, preserving sound quality, especially over longer distances. This allows for flexible and optimal placement of the speakers around the room.
Future-Proof Design with 7.2 Receiver: Understanding the evolving needs of our customers, this package includes the Onkyo TX-NR6100 7.2 channel A/V receiver, even though it’s configured as a 5.1 system. This choice is intentional, offering you the flexibility to expand your system in the future. With the additional channels available in the receiver, you have the option to add more speakers and enhance your setup to a 7.2 system when you’re ready. This forward-thinking approach ensures that your investment is not just for today but also caters to your future audio aspirations. Whether you decide to add more surround sound speakers, height channels, or another subwoofer for a richer bass experience, this receiver is equipped to handle your evolving home theater needs. It’s all about providing a system that grows with you, ensuring a long-lasting and satisfying audio experience.
TX-NR6100 Specifications
===========================
AMPLIFIER
Power output (All channels)
210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power
240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response
10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance
4–16 ohms
TUNER
FM
87.5 MHz–107.9 MHz
AM
530 kHz–1,710 kHz
FM/AM preset memory
40 stations
GENERAL
Power supply
AC 120 V~, 60 Hz
Power consumption (operating)
635 W
Power consumption (idle)
65 W
Power consumption (standby)
0.1 W
Dimensions (W x H x D)
17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
Weight
9.8 kg
R-50M Specifications
======================
FREQUENCY RESPONSE: 58Hz - 21kHz +/- 3dB
SENSITIVITY: 92 dB (In-Room)
POWER HANDLING (CONT/PEAK): 75W/300W
NOMINAL IMPEDANCE: 8 ohms Compatible
CROSSOVER FREQUENCY: 1,560 Hz
HIGH FREQUENCY DRIVER: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
LOW FREQUENCY DRIVER: Single 5.25" spun-copper TCP woofer
ENCLOSURE MATERIAL: MDF
ENCLOSURE TYPE: Bass-Reflex via rear-firing ports
INPUTS: Single Gold Plated Binding Posts
HEIGHT INCHES (MM): 13.9" (354 mm)
WIDTH INCHES (MM): 7" (178 mm)
DEPTH INCHES (MM): 9" (229 mm)
PRODUCT WEIGHT LBS (KG): 11 lbs (5 kg)
FINISH: Black Textured Wood Grain Viny
R-30C Specifications
====================
FREQUENCY RESPONSE: 78Hz - 21kHz +/- 3dB
SENSITIVITY: 96 dB (In-Room)
POWER HANDLING (CONT/PEAK): 100W/400W
NOMINAL IMPEDANCE: 8 ohms Compatible
CROSSOVER FREQUENCY: 1,650 Hz
HIGH FREQUENCY DRIVER: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
LOW FREQUENCY DRIVER: Quad 3.5" spun-copper TCP woofers
ENCLOSURE: MATERIAL MDF
ENCLOSURE TYPE: Bass-Reflex via forward-firing Tractrix®ports
INPUTS: Single Gold Plated Binding Posts
HEIGHT INCHES (MM): 5.0" (126 mm)
WIDTH INCHES (MM): 26" (660 mm)
DEPTH INCHES (MM): 6.8" (173 mm)
PRODUCT WEIGHT LBS (KG): 13 lbs (5.9 kg)
FINISH: Black Textured Wood Grain Vinyl

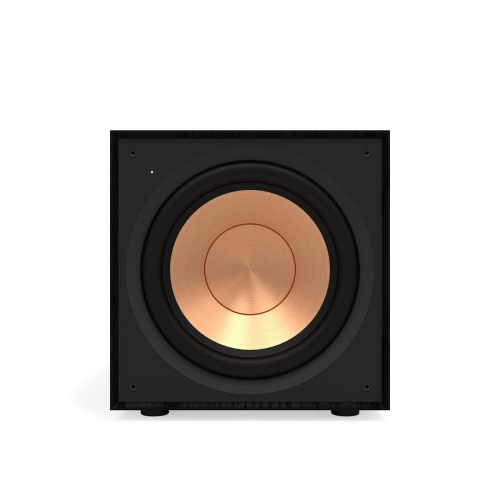

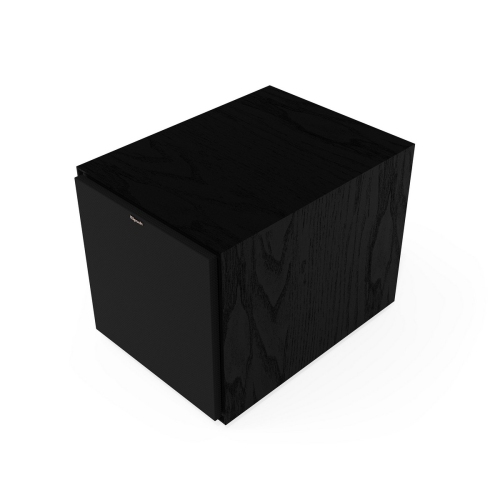

R-101SW Specifications
====================
FREQUENCY RANGE: 29.5Hz - 120Hz
MAXIMUM ACOUSTIC OUTPUT: 115 dB
AMPLIFIER: All Digital
AMPLIFIER POWER (CONT/PEAK): 150W/300W
AMPLIFIER FEATURES: Volume, Low-pass, 0/180 phase, Auto Power On
DRIVER COMPONENTS: 10" high excursion spun-copper TCP woofer
ENCLOSURE: MATERIAL MDF
ENCLOSURE TYPE: Bass-Reflex via rear-firing port
INPUTS: Line level/LFE RCA jacks
HEIGHT INCHES (MM): 14.6" (370 mm)
WIDTH INCHES (MM): 14.0" (356 mm)
DEPTH INCHES (MM): 19.7" (500 mm)
PRODUCT WEIGHT LBS (KG): 31 lbs (13.9 kg)
FINISHES: Black Textured Wood Grain Vinyl
