Overview

The EX connector is designed with a compliant co-polymer body to achieve a universality on 60% of braided cable to Quad cable. The EX® connector was designed with the challenging requirements of IP Telephony and High-Speed Data.

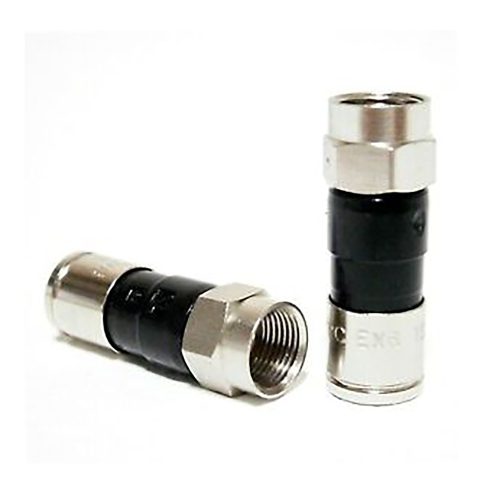

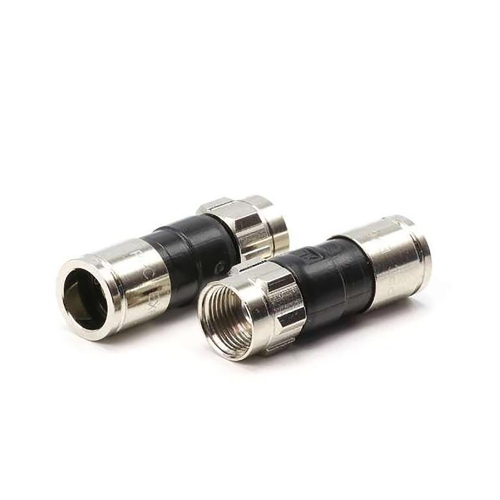

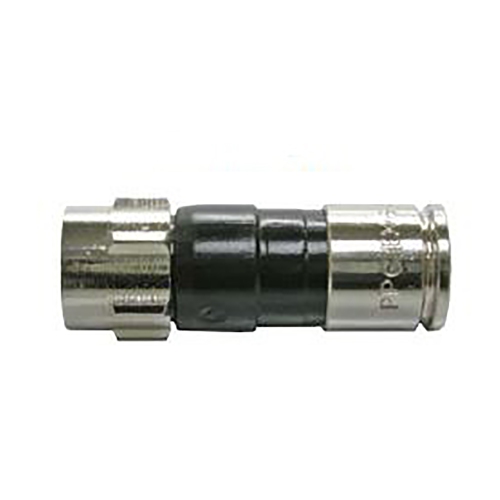

PPC Ex6xl Plus Rg6 Connectors Qty:1000 (20 Bags with 50 Connectors)

Model: PPCConnectors1000v1
Web Code: 15936465
Sold and shipped by | 4.4 seller rating (9 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

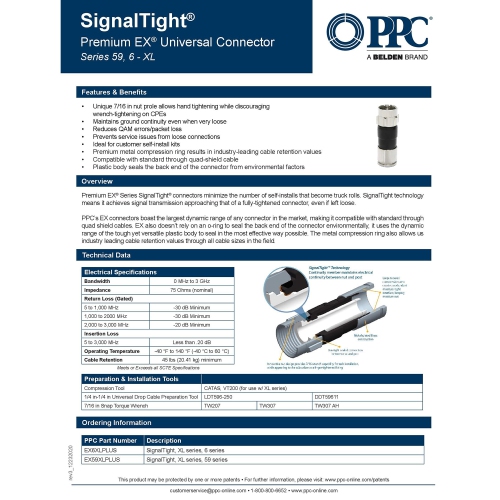

SignalTight drop connectors for 6 Series cable minimize the number of self installs that become truck rolls. SignalTight technology enables signal transmission approaching that of a fully tightened connector, even if left loose. Product Specifications Bandwidth: 0 MHz to 3 GHz Impedance: 75 Ohms Return Loss: Minimum -30 dB to 3 GHz Insertion Loss: Less than .10 dB to 3 GHz Shielding Effectiveness* (dynamic): Enhanced by 25dB Operating Temperature: -40°F to +140°F ( -40°C to +60°C) Cable Retention: 45 lbs (20.41 kg) minimum Meets or exceeds all SCTE Specifications *As compared to standard connector. Tests were performed with the nut in loose condition with dynamic motion applied to the jumpers. Preparation and Installation Tools ¼ - ¼" universal drop cable preparation tool: LDT596-250, DDT59611 7/16" snap torque wrench: TW207, TW307, TW307 AH



Product Condition
Brand New

Dimensions

Weight
7.71 kg
