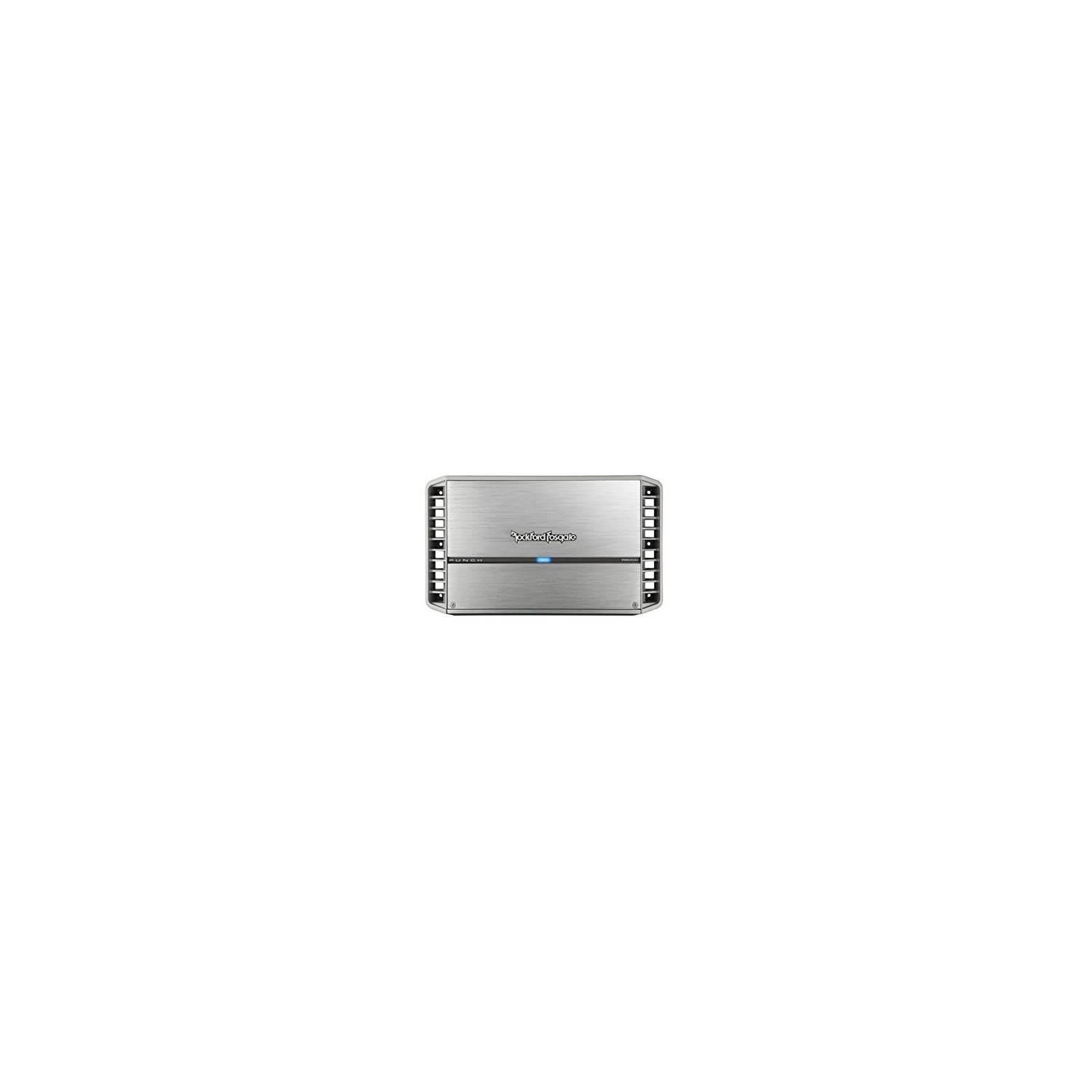

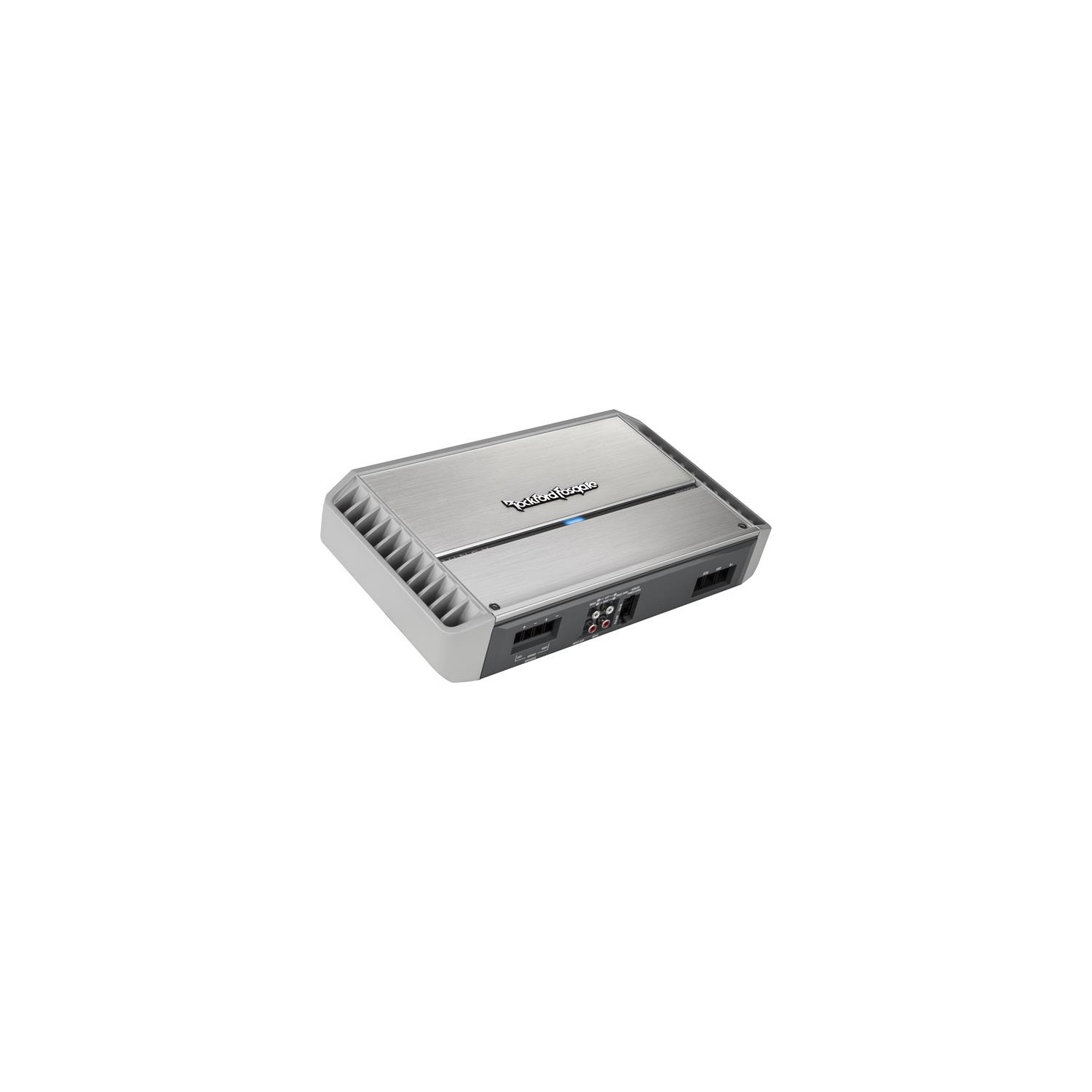

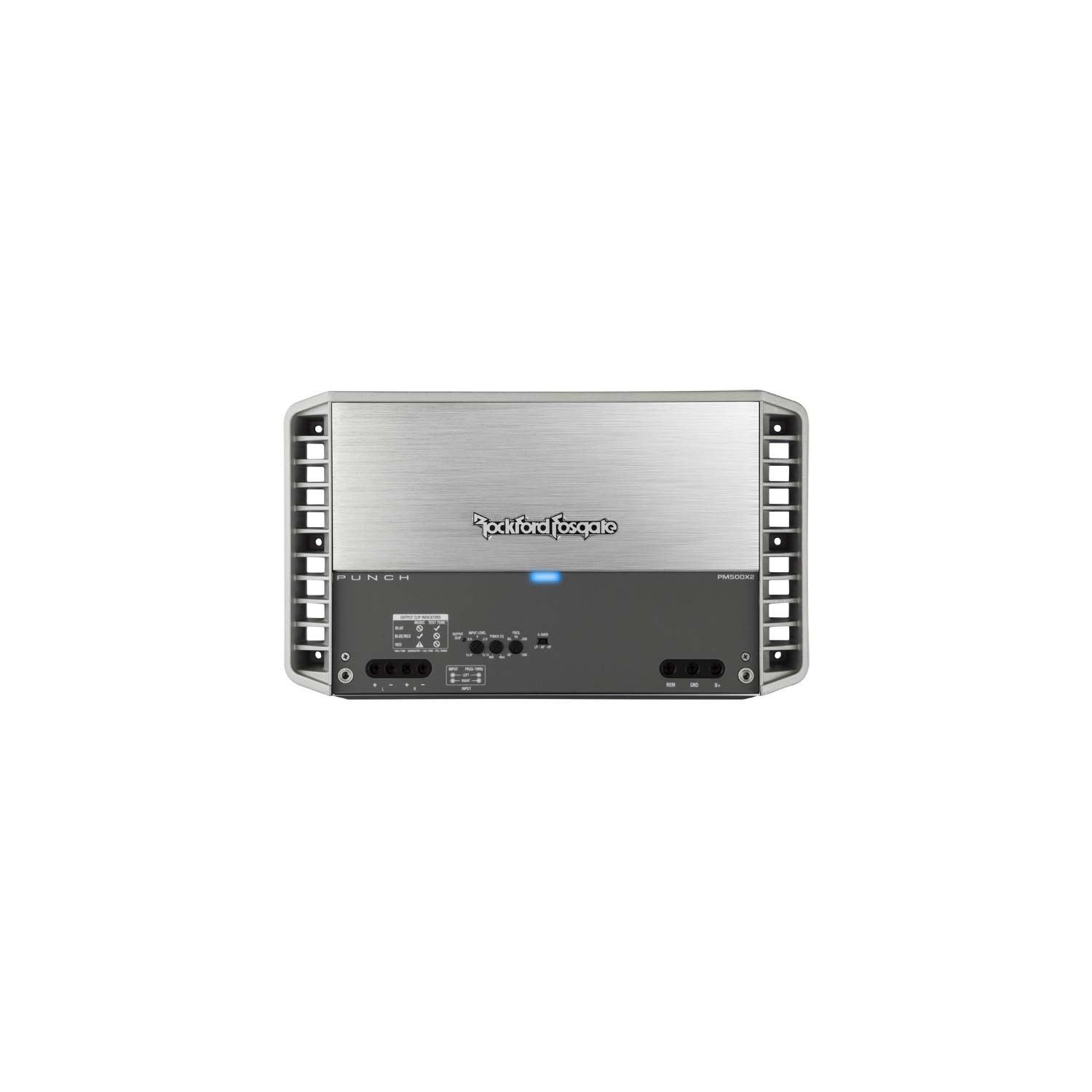

Rockford Fosgate PM500X2 Punch Marine 500 Watt 2-Channel Amplifier

The PM500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery. High level input capable with Auto Turn-On circuit RCA pass-thru outputs Features C.L.E.A.N. Set-up Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator) 12dB/octave Butterworth crossover On-board Punch EQ with +18dB boost @ 45Hz Muted turn on Stealth top mounted control panel Cast aluminum heatsink Short circuit protection Over current protection Marine grade 2-part epoxy coated PCB Marine grade stainless steel hardware. Input Sensitivity150 mV - 12 V Efficiency (average)73% @ 4-Ohm Dimensional Diagram Total Power (Sum of Rated Power)500 Watts Crossover ControlsHigh-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes Suggested Alternator75 A Operating Voltage9 - 16 VDC Recommended Fuse (not included)80 A Max. Current Draw (13.8V Sinewave)80 A Average Current Draw (13.8V Music)40 A Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0% 2-Ohm: <1.0% Dynamic Power (PVC/PowerCube®)223 Watts x 2 @ 4-Ohms 0° Res 365 Watts x 2 @ 2-Ohms 0° Res Shipping Weight12.3 Lbs. (5.57 Kg.) CEA-2006 CompliantCEA-2006 Guidelines CEA-2006 Power Rating 150W x 2 @ 4Ω ≤1.0% THD+N Number of Channels2 Rated Power (RMS Continuous Power)150 Watts x 2 @ 4-Ohm 250 Watts x 2 @ 2-Ohm 500 Watts x 1 @ 4-Ohm Bridged BridgeableYes Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12kHz Function depends upon LP/AP/HP switch position Signal InputHi/Low level: 1 RCA pair Signal OutputLow level: 1 RCA pair Power Input ConnectorCaptive C-Clamp Power Wire Gauge4 AWG Speaker Output ConnectorCaptive C-Clamp Speaker Wire Gauge8 AWG to 18 AWG Heat Sink TypeCast aluminum CoolingConvection Remote ControlsOptional Punch Level Control (PLC2) Ready Visual IndicatorsPower/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD Circuit Topology ClassClass A/B Frequency Response20Hz to 20kHz +/- 1.0dB Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
