About: Rockford Fosgate RFK-HD14M5 2014+ Harley-Davidson Road Glide, Street Glide, Ultra & CVO Amp Install Kit (Gen-3)

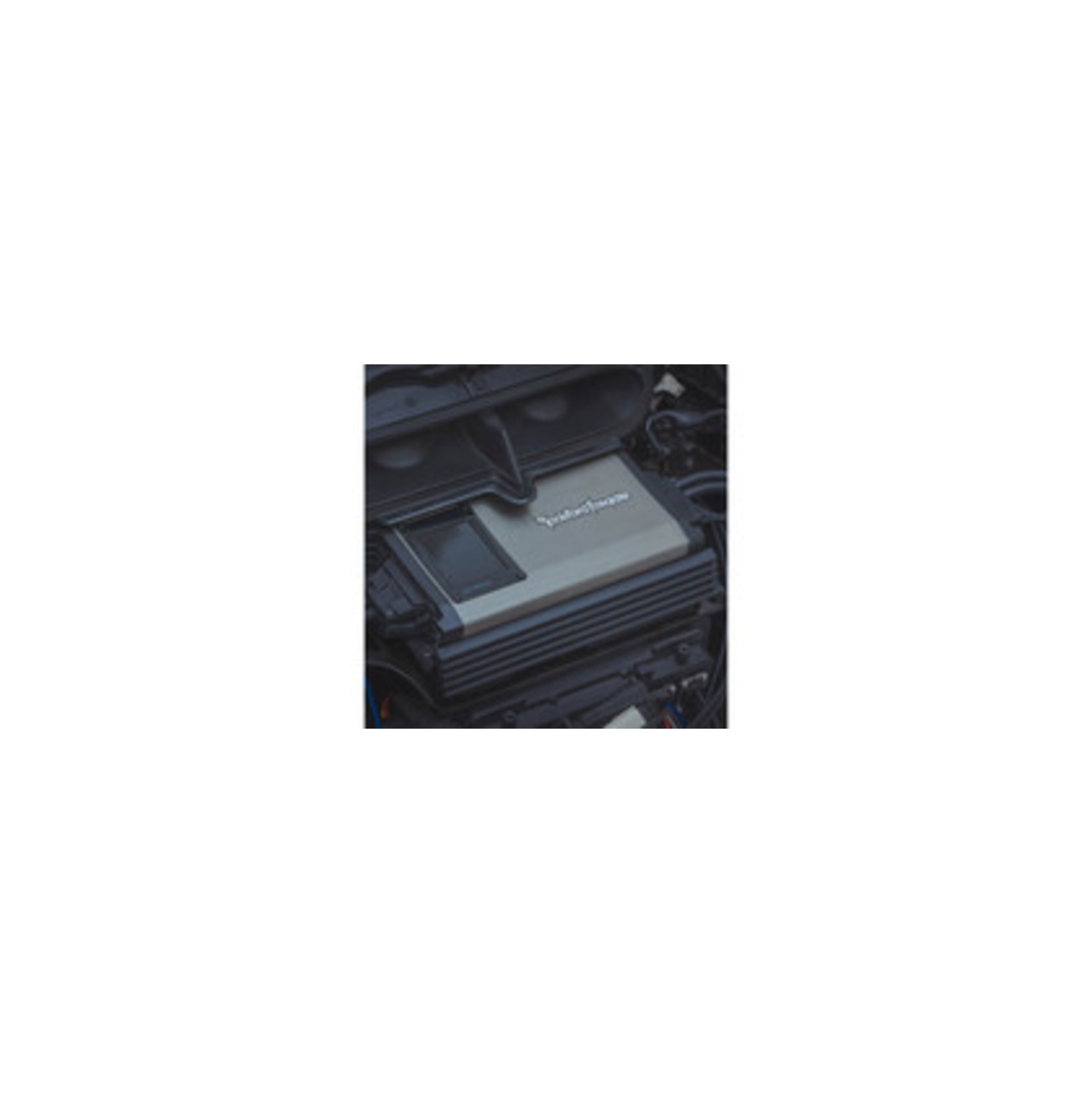

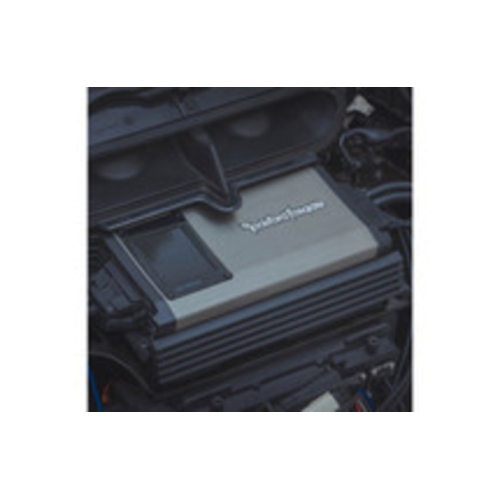

This complete kit includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier on select 2014 and newer Harley-Davidson® motorcycles. T-Harness allows for complete electrical integration without cutting or modifying factory wiring. Includes Boom!™ Audio bypass plugs for factory Harman Kardon® amplified systems and a Digital Signal Processor loop-thru for adding a DSR1 signal processor. The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Plug-and-Play Design
Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™
Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Features:
Plug and Play design for easy installation
100% Pure Crystal-Oxygen Free Copper (PC-OFC)
FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
Designed for use with TM400X4ad amplifier (sold separately)
90-degree harness included with amp install kit for Road Glide® installations
Designed for use with M5-800X4 amplifier (sold separately)
Designed for use with 2014-Current Harley-Davidson® Motorcycles
Includes Boom!™ Audio bypass plugs for factory Harmon/Kardon® amplified systems
Includes mounting brackets for Bat Wing and Shark Nose fairings
T-harness supports front/rear fader (requires flash: "Rockford Fosgate 2014+ All Bikes")
Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
Specifications:
Battery PWR/GND Gauge: 8 AWG
Fuse Size: 60 Amp
Fuse Type: MAXI
Amplifier PWR/GND Gauge: 8 AWG
Speaker Wire Gauge: 16 AWG
Dual Amp Installation Kit: No
Vehicle Application:
YEARMAKEMODELCHASSISFAIRING
2014-currentHarley-Davidson®Street Glide® 1FLHXBat Wing
2014-currentHarley-Davidson®Street Glide® Special1FLHXSBat Wing
2014–currentHarley-Davidson®Electra Glide® Ultra Classic®1FLHTCUBat Wing
2014–currentHarley-Davidson®Electra Glide® Ultra Limited1FLHTKBat Wing
2017–currentHarley-Davidson®Electra Glide® Ultra Limited Low 1FLHTKLBat Wing
2015–currentHarley-Davidson®Tri Glide® Ultra Classic®1FLHTCUTGBat Wing
2015–2020Harley-Davidson®CVO Street Glide® (4-speaker)1FLHXSEBat Wing
2018–2020Harley-Davidson®CVO Street Glide® (6-speaker)1FLHXSEBat Wing
2014–currentHarley-Davidson®CVO™ Limited1FLHTKSEBat Wing
2016–currentHarley-Davidson®CVO™ Ultra Limited1FLHTKSEBat Wing
2014–currentHarley-Davidson®CVO™ Ultra Limited Electra Glide1FLHTKSEBat Wing
2015-currentHarley-Davidson®Road Glide® 1FLTRXShark Nose
2015-currentHarley-Davidson®Road Glide® Special 1FLTRXSShark Nose
2015–currentHarley-Davidson®Road Glide® Ultra1FLTRUShark Nose
2018–2020Harley-Davidson®CVO Road Glide® (4-speaker)1FLTRXSEShark Nose
2015–currentHarley-Davidson®CVO™ Road Glide® Ultra1FLTRUSEShark Nose

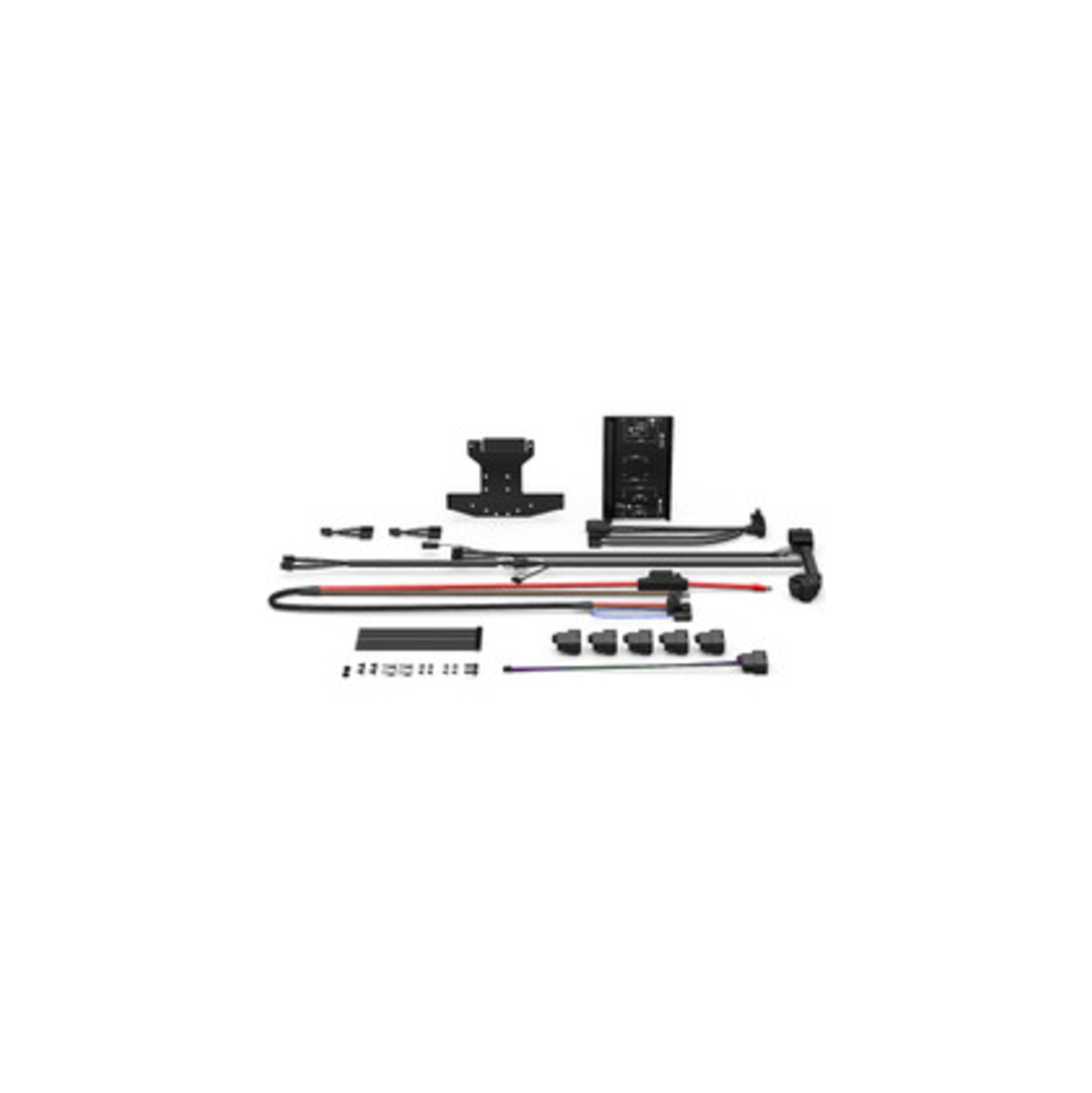

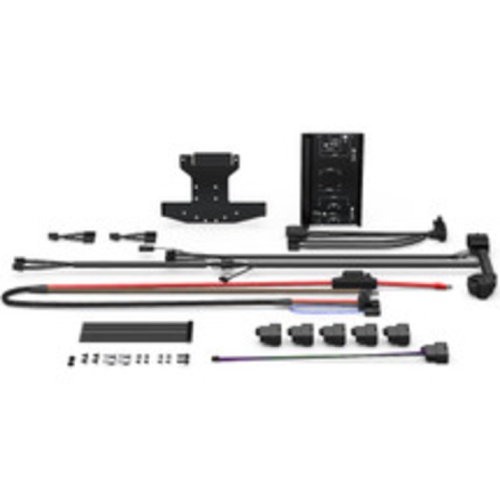

What's in the Box:
1 Amp mounting bracket
1 Heatsink
34" T-harness
65" Power/ground harness w/ inline 60A Maxi fuse
20" Amplifier output harness
12" Amp output harness
16" Fairing harness
2 Amp output Y-adapters
5 Amp bypass plugs
Eight 8" wire-ties
4 Threaded post adapters
Two 16mm bolts
Four 18mm counter-sunk screws
Four 10mm counter-sunk screws
Four 8mm hex-socket screws
2 Flange-nuts
Installation guide
**Important Note: Kit requires factory Harley-Davidson® radio to be flashed (1). This amplifier installation kit is designed to interface only with the Rockford Fosgate M5-800X4 and Rockford Fosgate TM400X4ad aftermarket amplifier and Harley-Davidson® motorcycle. If your existing amplifier and motorcycle are not listed, it is not compatible.
