About: Rockford Fosgate RNGR18-STG1 Stage-1 All-In-One Audio System for Select 2018+ Ranger Models (Gen-2)

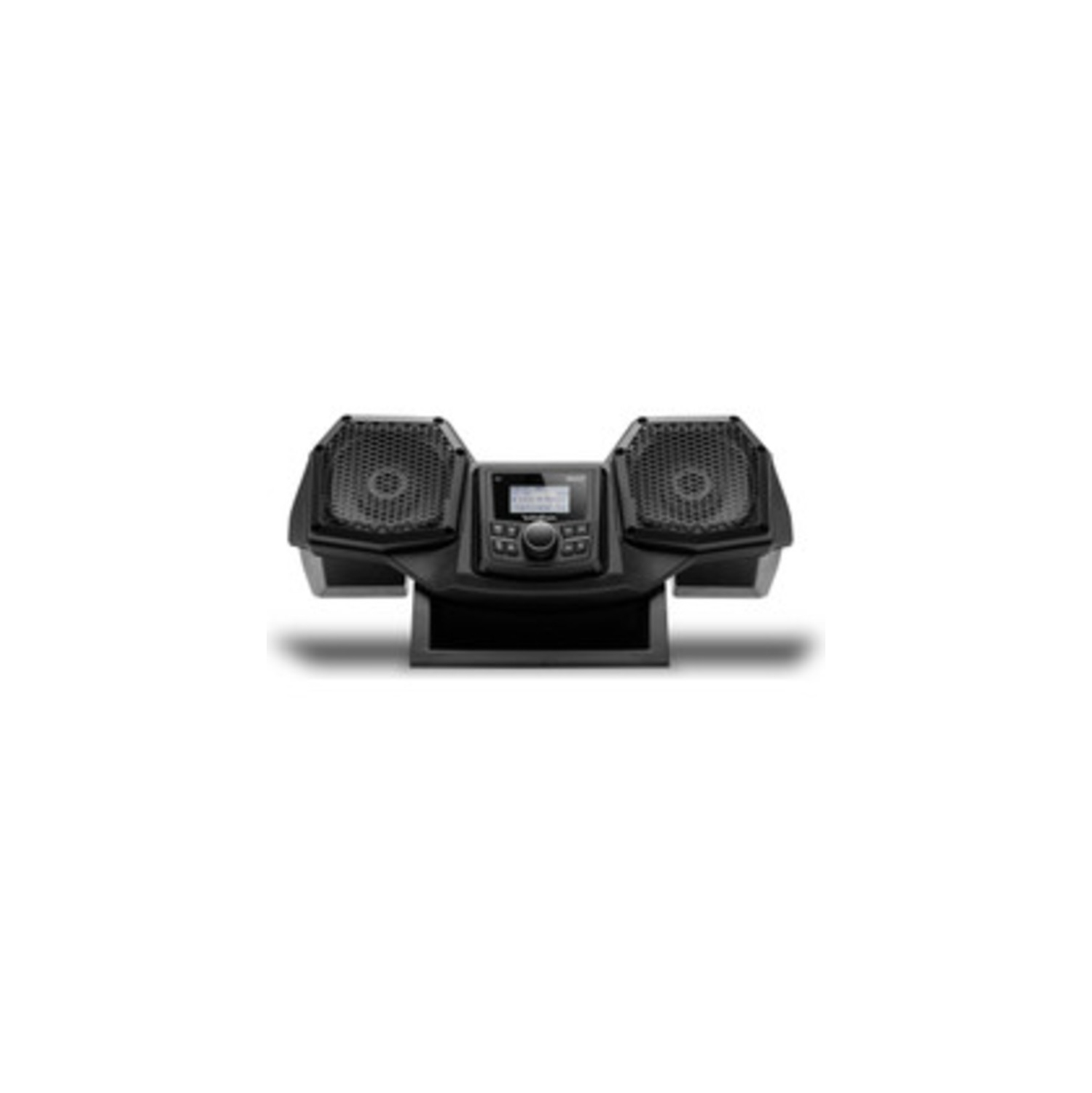

The all-new Ranger Stage-1 audio system features a single enclosure that houses two 5-1/4" Element Ready™ speakers and our PMX-1 source unit. The 5-1/4" speakers feature a full-range coaxial design and are rated to handle 50 watts, which means solid mid bass response and crisp high-end output. The PMX-1 source unit powers the system that features a 2.3" wet bonded dot matrix display, so it’s built rugged and it’s also easy to read in any light, day, or night. It also features Bluetooth connectivity, so it's easy to quickly connect your phone and get your playlist dialed. The bottom line is if you are looking for an All-in-One audio solution that’s rugged enough to stand up to the off-road environment, that’s easy to install with simple Bluetooth connectivity, then look no further.
All-in-One Audio Solution
Housed in a single enclosure, the speakers and source unit come pre-installed which means no additional setup or tweaking is needed.
Element Ready™
Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
Plug-and-Play Design
No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Bluetooth Control
With Bluetooth connectivity it’s easy to control your music and take your playlist with you no matter where you go.
Product Highlights:
One-piece audio upgrade kit with marine digital media receiver and two speakers
Designed to work with select 2018-up Polaris Ranger 1000 and XP 1000 models
Features:
Plug and Play design for easy installation
Complete all-in-one design
No setup required
PMX-1: Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display
Features dual 5.25” Element Ready™ speakers
Compatible with PMX-BTUR Steering Wheel Remote
7-Band Graphic EQ + PEQ
Wet bonded 2.3" Full Dot Matrix LCD Display
AM/FM/WB Tuner
Voltage gauge with Low voltage Warning
Installs in place of factory center cup holder in under 5 minutes
A2DP and AVRCP Bluetooth® Wireless Streaming
Specifications:
Total Power: 100 Watts, 25W x 4 @ 4Ω RMS
Speaker Qty: 2
Speaker Type: TMS5
Amplifier Type: Internal
Mounting Hardware: Yes
Grille/Trim Ring Included: Yes
Rockford Fosgate PMX-1 Marine Digital Media Receiver (does not play CDs):
Built-in amplifier (25 watts RMS CTA-2006/50 peak x 4 channels)
Built-in Bluetooth for music streaming (will not make calls)
AM/FM/Weather tuner
2.3" dot matrix display
IPX6 water rating
Element-Ready 5-1/4" Speakers:
salt-, fog-, and UV-resistant Santoprene rubber surrounds
power handling: 25 watts RMS (100 watts peak)
Vehicle Applications:
Bobcat (2-Door)
Bobcat UV34 (Diesel): 2019 - 2025
Bobcat UV34 (Gas): 2020 - 2025
Bobcat (4-Door)
Bobcat UV34XL (Diesel): 2019 - 2025
Bobcat UV34XL (Gas): 2020 - 2025
Polaris Ranger Full-Size (3-Seat)
Ranger 1000: 2020 - 2025
Ranger 1000 EPS: 2020 - 2025
Ranger 1000 Premium: 2020 - 2025
Ranger 1000 Premium + Winter Prep Package: 2021 - 2022
Ranger XP 1000 Big Game Edition: 2021 - 2022
Ranger XP 1000 Texas Edition: 2020 - 2021
Ranger XP 1000 Trail Boss: 2021 - 2022
Ranger XP 1000 Waterfowl Edition: 2021 - 2022
Ranger XP 1000 NorthStar [Edition] Premium: 2020 - 2025
Ranger XP 1000 Northstar [Edition] Premium Fixed Windshield: 2025
Ranger XP 1000 NorthStar [Edition] Ultimate: 2020 - 2025
Ranger XP 1000 NorthStar Edition Trail Boss: 2021 - 2025
Ranger XP 1000 EPS: 2018 - 2019
Ranger XP 1000 [EPS] Premium: 2019 - 2025
Ranger XP 1000 [EPS] High Lifter Edition: 2018 - 2022
Ranger XP 1000 EPS NorthStar [HVAC] Edition: 2018 - 2019
Ranger XP 1000 EPS Back Country Limited Edition: 2019
Polaris Ranger Crew (6-Seat)
Ranger Crew 1000: 2020 - 2022 & 2024 - 2025
Ranger Crew 1000 EPS: 2020
Ranger Crew 1000 Premium: 2020 - 2025
Ranger Crew 1000 Premium + Winter Prep Package: 2022
Ranger Crew XP 1000 Big Game Edition: 2021 - 2022
Ranger Crew XP 1000 Premium: 2020 - 2025
Ranger Crew XP 1000 Texas Edition: 2020 - 2025
Ranger Crew XP 1000 Trail Boss: 2021 - 2022
Ranger Crew XP 1000 Waterfowl Edition: 2021 - 2022 & 2025
Ranger Crew XP 1000 Northstar Big Game Edition: 2022
Ranger Crew XP 1000 NorthStar [Edition] Premium: 2020 - 2025
Ranger Crew XP 1000 Northstar [Edition] Premium Fixed Windshield: 2025
Ranger Crew XP 1000 NorthStar [Edition] Ultimate: 2020 - 2025
Ranger Crew XP 1000 NorthStar Edition Trail Boss: 2021 - 2025
Ranger Crew XP 1000 Northstar Texas Edition: 2025
Ranger Crew XP 1000 EPS: 2018 - 2019
Ranger Crew XP 1000 [EPS] High Lifter Edition: 2018 - 2022
Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition: 2018 - 2019
Ranger Crew XP 1000 EPS Back Country Edition: 2019
What's in the Box:
Ranger dash enclosure loaded with PMX-1 headunit and two 5-1/4" "Element Ready" speakers (attached 26" power & ground connector / 15" speaker harnesses & remote turn-on wire / 5' wire-antenna)
Rockford Fosgate Tech Support information
Contact information
