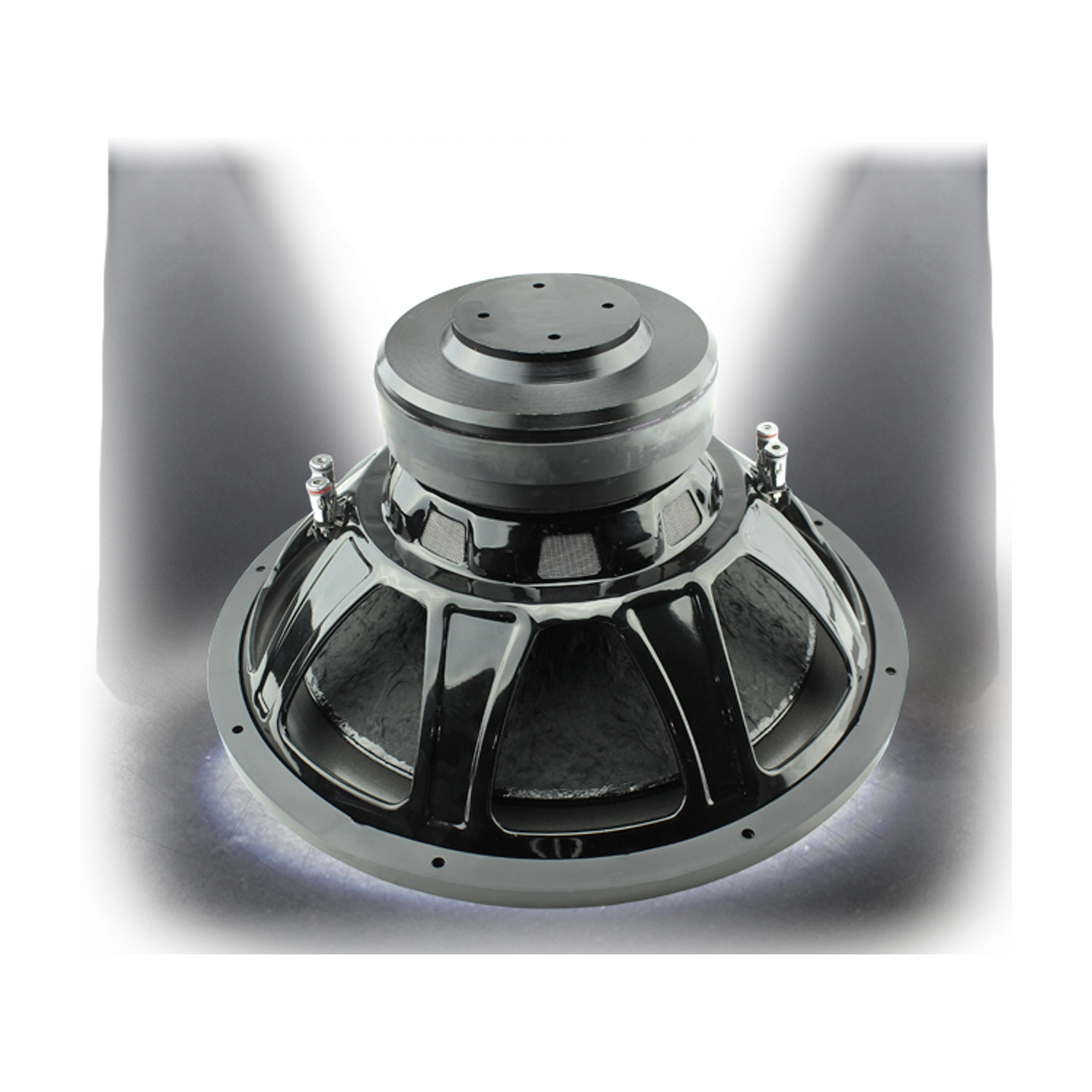

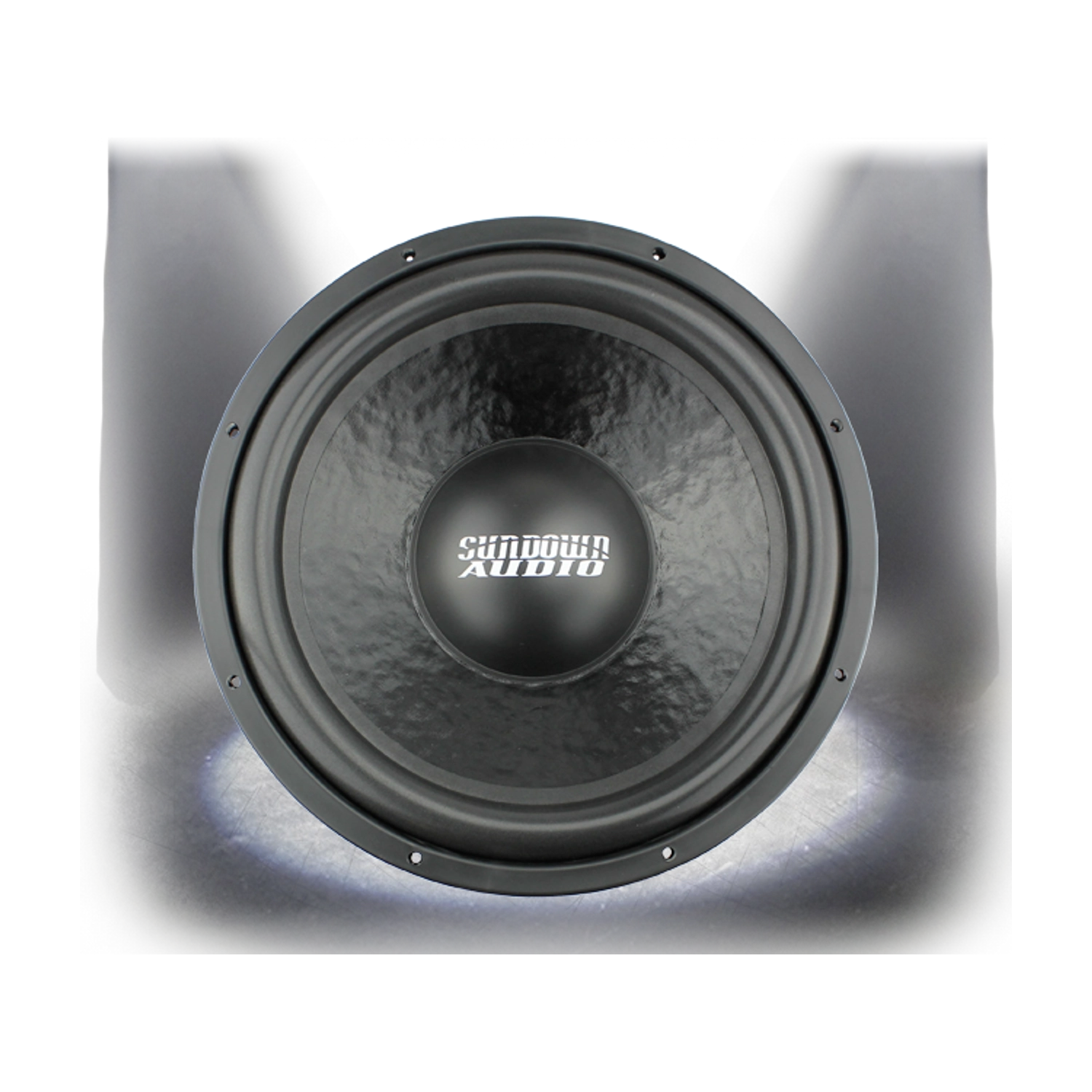

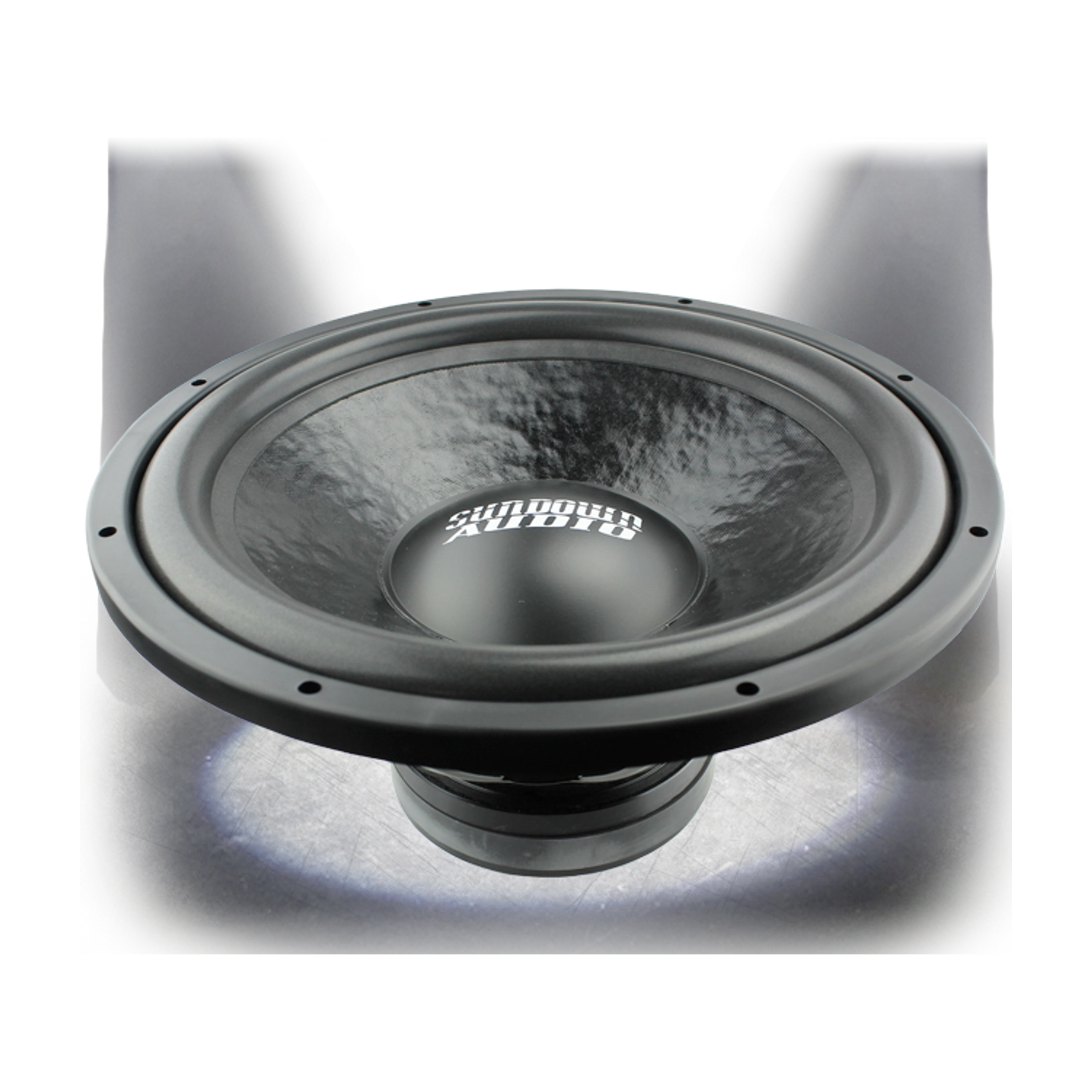

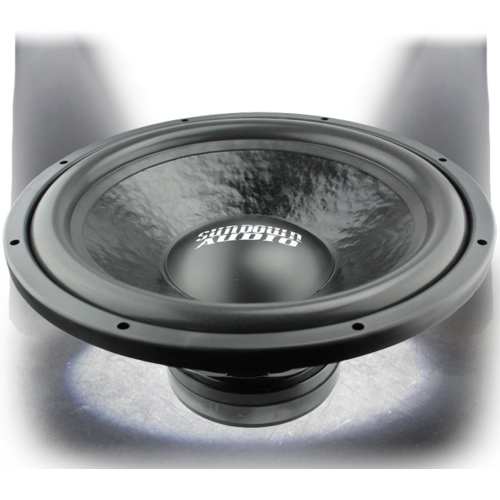

About: Sundown Audio E-Series v.4 15" Subwoofer
The fourth version of our acclaimed E series has been refreshed for 2020. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – all of these bars have been raised once again for our fourth generation E series. The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.
A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak before physical coil bottom). The E v.4 series has been upgraded to a full 2.5” diameter coil (this started with the v.3) compared to the 2” coil of previous generations (v.1 and v.2). The tinsel leads have been upgraded to a new “Mini-XL” lead containing 63-strands of conductor (a full XL is 84-strands and previous leads contained 42-strands) to help prevent potential failure due to amplifier clipping. The spider itself is a high-strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame.
Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date. They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.
Features:
Xmax = 14mm one-way by 70% BL
RMS Power = 500-watts
Vented magnetic gap
Vented pole piece with optimized geometry
Black Aluminum 2.5” voice coil former for superior heat dissipation
High Temperature 4-Layer copper voice coil wire
Spring Loaded Terminals
Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
Bolted-on Spider Pack
Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
High strength stamped steel frame
Optimized for ported enclosures
Available in Dual 2 Ohm (D2) or Dual 4 Ohm (D4)
Specifications:
T/S SPECSE V.4 15" D2E V.4 15" D4
RE (Ohms)4.0306.130
FS (Hz)30.53530.539
VAS (L)101.063103.031
Qes0.7590.818
Qms4.1013.750
Qts0.6410.671
BL (NA)15.88019.247
Mms (Grams)262.699257.621
Cms (mm/N)103.416105.429
Sens (dB @ 1w/1m)87.787.4
Enclosure Specifications:
Sealed Enclosure: N/A
Ported Enclosure: 3.0 cu ft
Recommended Tuning: 35hz
Recommended Port Area: 44 sq in
Displacement: 0.14 cu ft
Depth:7.25"
Outside Diameter: 15.125"
Cutout: 13.875"
