Overview

Designed for their DS3622xs+ and DS2422+ NAS enclosures, the DX1222 12-Bay Expansion Unit from Synology lets you add 12 additional drives to your deployment while keeping your storage and services online and uninterrupted. Its 12 drive bays support SATA 3.5" hard drives, as well as 2.5" hard drives and solid-state drives.p data-mce-fragment=...

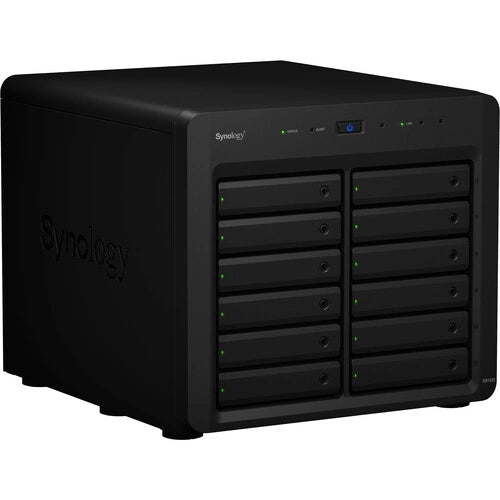

Synology DX1222 12-Bay Expansion Unit

Model: SYDX1222
Web Code: 16248577
Sold and shipped by | 3.8 seller rating (25 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Designed for their DS3622xs+ and DS2422+ NAS enclosures, the DX1222 12-Bay Expansion Unit from Synology lets you add 12 additional drives to your deployment while keeping your storage and services online and uninterrupted. Its 12 drive bays support SATA 3.5" hard drives, as well as 2.5" hard drives and solid-state drives.

To connect to a supported Synology NAS, the DX1222 uses a Mini-SAS HD port. It is powered by a 550W power supply that runs at 100-240 VAC at 50/60 Hz. Included with this unit is an AC power cord, a Mini-SAS HD expansion cable, two hard drive tray keys, and 52 screws for 2.5" drives.

Synology DX1222 External HDD/SSD Specs

General

Number of Bays

12 x 2.5"/3.5"

I/O

1 x Mini SAS (Unspecified)

Compatible Drive Interface

SATA (Unspecified Version)

Hot-Swap Support

Yes

Carrier-Less Drive Bays

No

Electrical

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Source

Internal Power Supply

Power Consumption

57.71 W (Typical)

16.25 W (Standby)

PSU Wattage

1 x 550 W

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

5 to 95%

Storage Temperature

-5 to 140°F / -20 to 60°C

Certifications

BSMI, CE, EAC, FCC, Kcc, RCM, UL, VCCI, as per Manufacturer

Physical

Cooling

2 x 120 mm Fans

Noise Level

24.6 dBA

Weight

19.8 lb / 9.0 kg

Packaging Info

Package Weight

27.2 lb

Box Dimensions (LxWxH)

18.5 x 17.5 x 16.3"
