TP-Link RE300 AC1200 Mesh Wi-Fi Range Extender 2.4GHz band and 5GHz band Retail
Extend the range of your Wi-Fi with TP-Link Dual band AC1200 range extender, RE300
Enable one mesh technology with compatible TP-Link Archer A7 router. In order to enable one mesh update the A7 firmware to the latest version
One mesh creates a mesh Wi-Fi network that covers your home in fast, seamless Wi-Fi for whole home coverage without the mesh cost.
Easy setup via WPS and smart Signal Indicator to find the best location for optimal Wi-Fi coverage
Adaptive path selection navigates the repeater to the fastest connection path and paired with high speed mode, enjoy lag-free HD streaming and gaming
Model
Brand
TP-Link
Model
RE300
Details
Standards
IEEE 802.11ac, IEEE 802.11a/b/g/n
Frequency Band
2.4 GHz/5.0 GHz
Wireless Data Rates
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mpbs
Security
64 / 128-bit WEP
WPA-PSK / WPA2-PSK
WPA/WPA2
WPA2
Transmit Power
<17 dBm (2.4 GHz)
<17 dBm (5 GHz)
Receiving Sensitivity
5 GHz:
11a 6 Mbps:-91 dBm @ 10% PER
11a 54 Mbps: -74 dBm @ 10% PER
11ac HT20 mcs8: -68 dBm @ 10% PER
11ac HT40 mcs9: -63 dBm @ 10% PER
11ac HT80 mcs9: -59 dBm @ 10% PER
2.4 GHz
11g 54M: -79 dBm @ 10% PER
11n HT20 mcs7: -77 dBm @ 10% PER
11n HT40 mcs7: -74 dBm @ 10% PER
Button
Reset, WPS
Power
7.3W(max power consumption)
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux
Dimensions
50.80 mm x 124.46 mm x 68.58 mm
Feature
Features
Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage
Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI
Works with any Wi-Fi router or wireless access point
Environmental
Operating Temperature
0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Operating Humidity
10% ~ 90% non-condensing
Storage Temperature
-40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
Storage Humidity
5% ~ 90% non-condensing
Package Contents
Package Contents

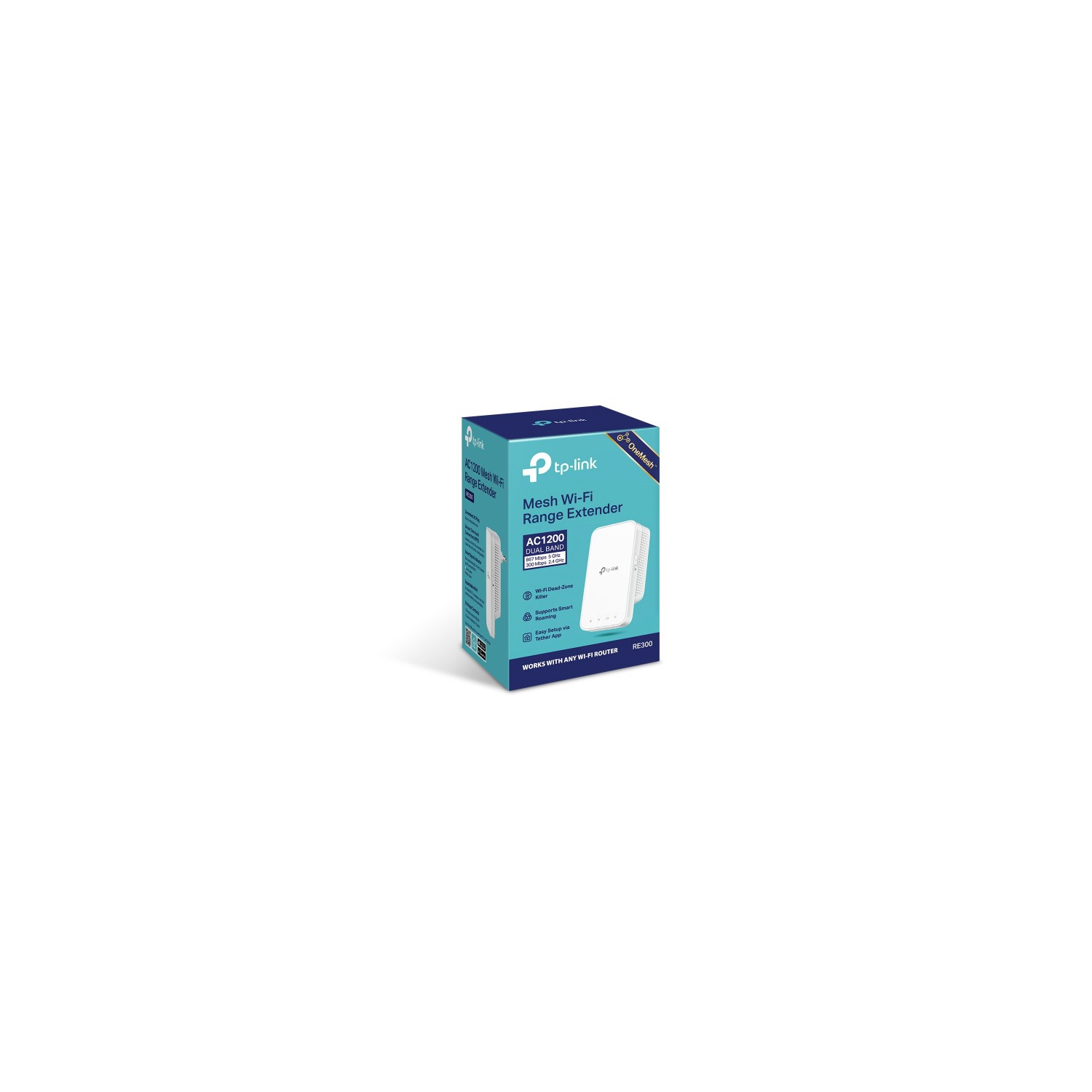

AC1200 OneMesh Wi-Fi Range Extender RE300
Quick Installation Guide
