VEVOR 50 sqft Floor Heating Mat System, 120V Electric Radiant Heated Floor System, with Decoupling Membrane & Smart Control Thermostat & Alarm, Easy Installation for Tile, Vinyl

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Invisible Heat, Silent Comfort

Instant, even warmth for all-day comfort, engineered with fast-heat technology and flexible cables that deliver uniform warmth in minutes.

· Low-Energy Heating

120V/15A smart thermostat (GFCI-protected) – 7-day scheduling, dual-sensor (air/floor temp), screen-lock and holiday mode for precise, low-energy heating.

· Easy Setup

Kit includes installation monitor – no extra purchase needed. Ensures cable functionality, reduces concrete rework for DIY & pro installs.

· Energy-Efficient Warmth

Heavy-duty cable – low energy use, international security standards. Reliable warmth for cozy homes.

· Universal Fit

Universal fit for bathrooms, kitchens, living areas – flexible cable adapts to any room shape.

· Invisible & Silent, Less Space Occupation

This innovative design ensures the heating system blends seamlessly into your space, providing comfort without compromising aesthetics or taking up valuable space

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Item Model Number: SHHC-600

Power Supply: AC120V 60Hz

Power Output: 600W (+5% -10%)

Coverage Area: 50 sq.ft.

Main Material: Alloy Wire, FEP Insulation, PVC Outer Sheath

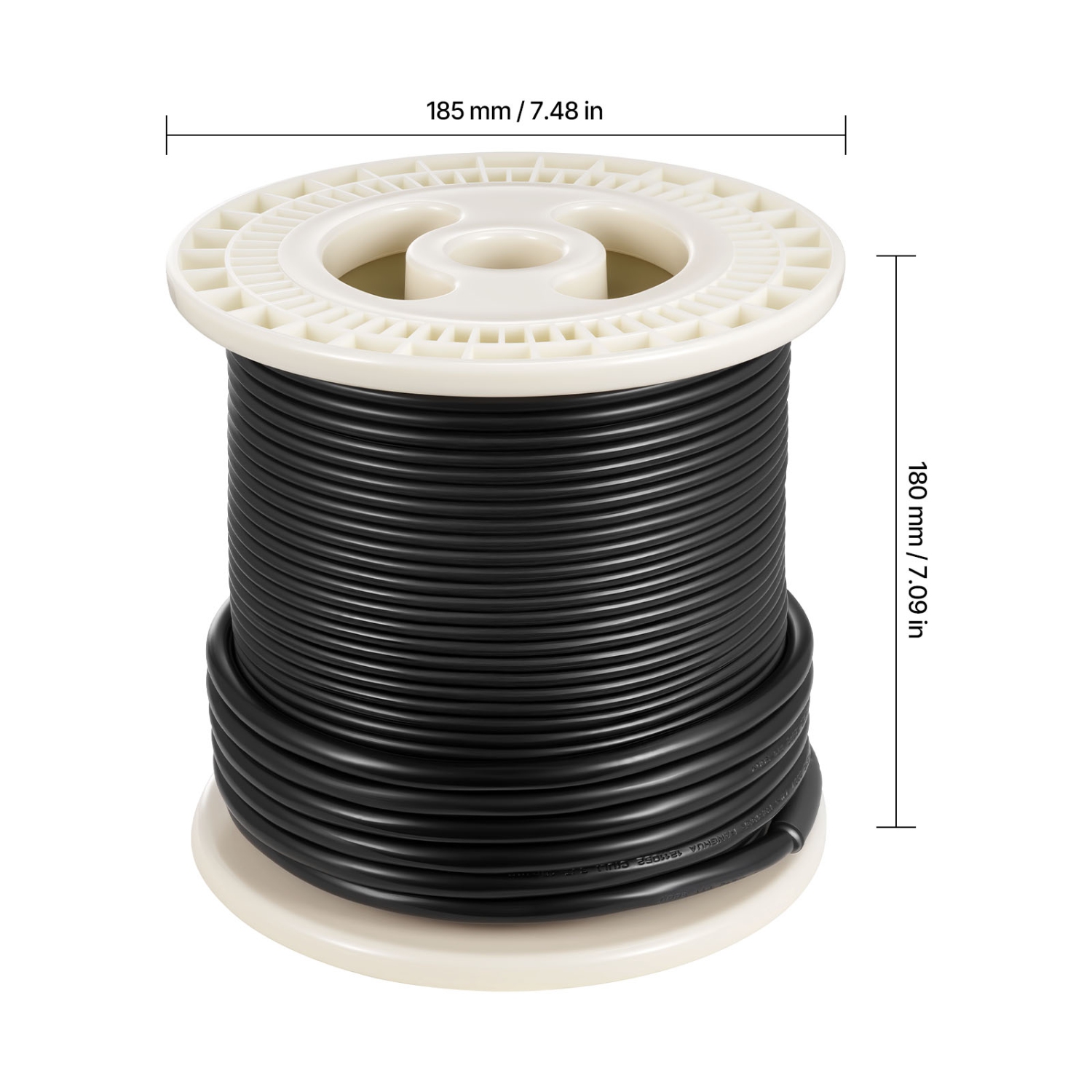

Cable Reel Dimensions: φ185x180 mm / φ7.28x7.09 in

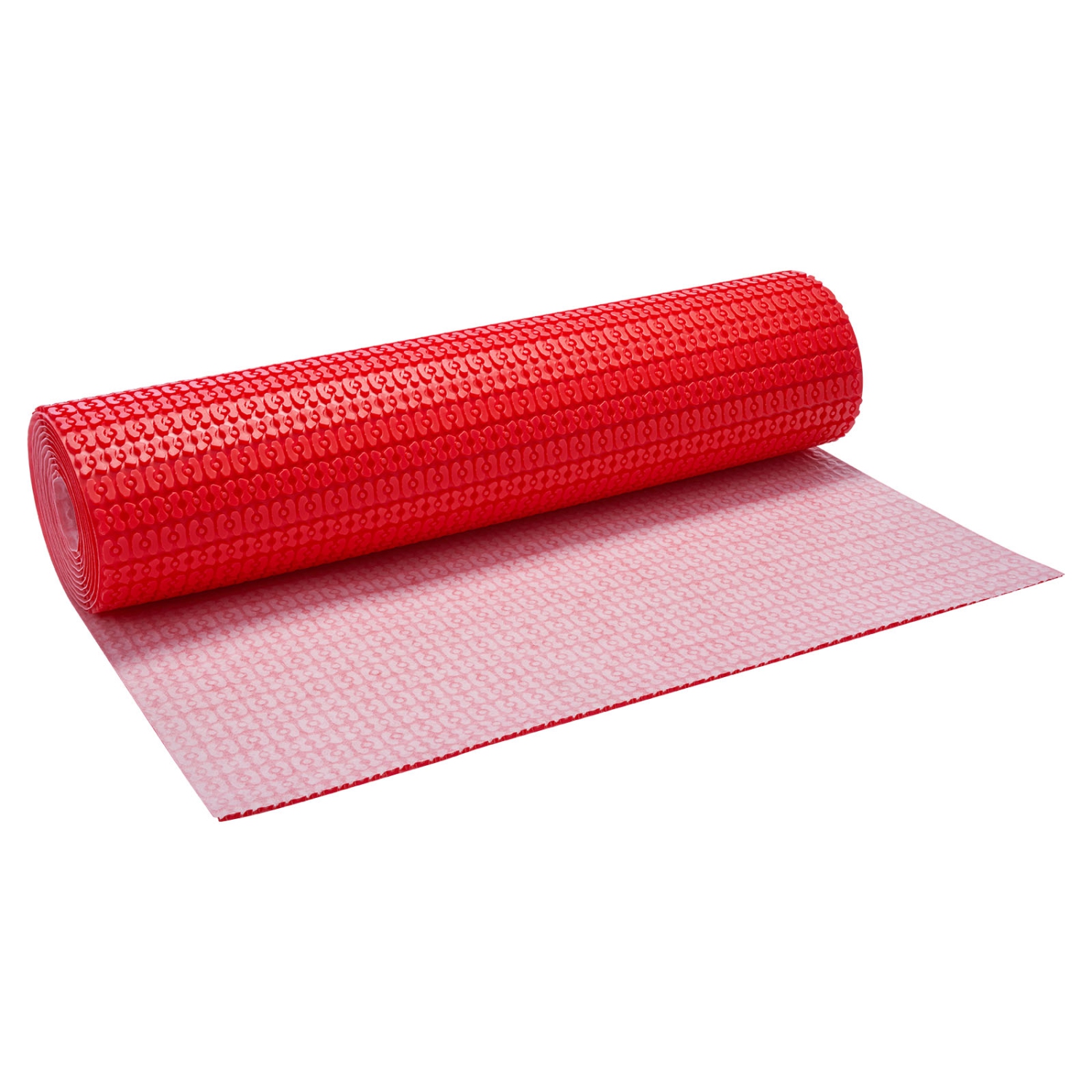

Membrane Dimensions: φ230x1010 mm / 9.06x39.76 in

Net Weight: 7.5 kg / 16.54 lb ± 3%

Thermostat Voltage: AC110V/AC240V

Membrane Thickness: 0.8mm

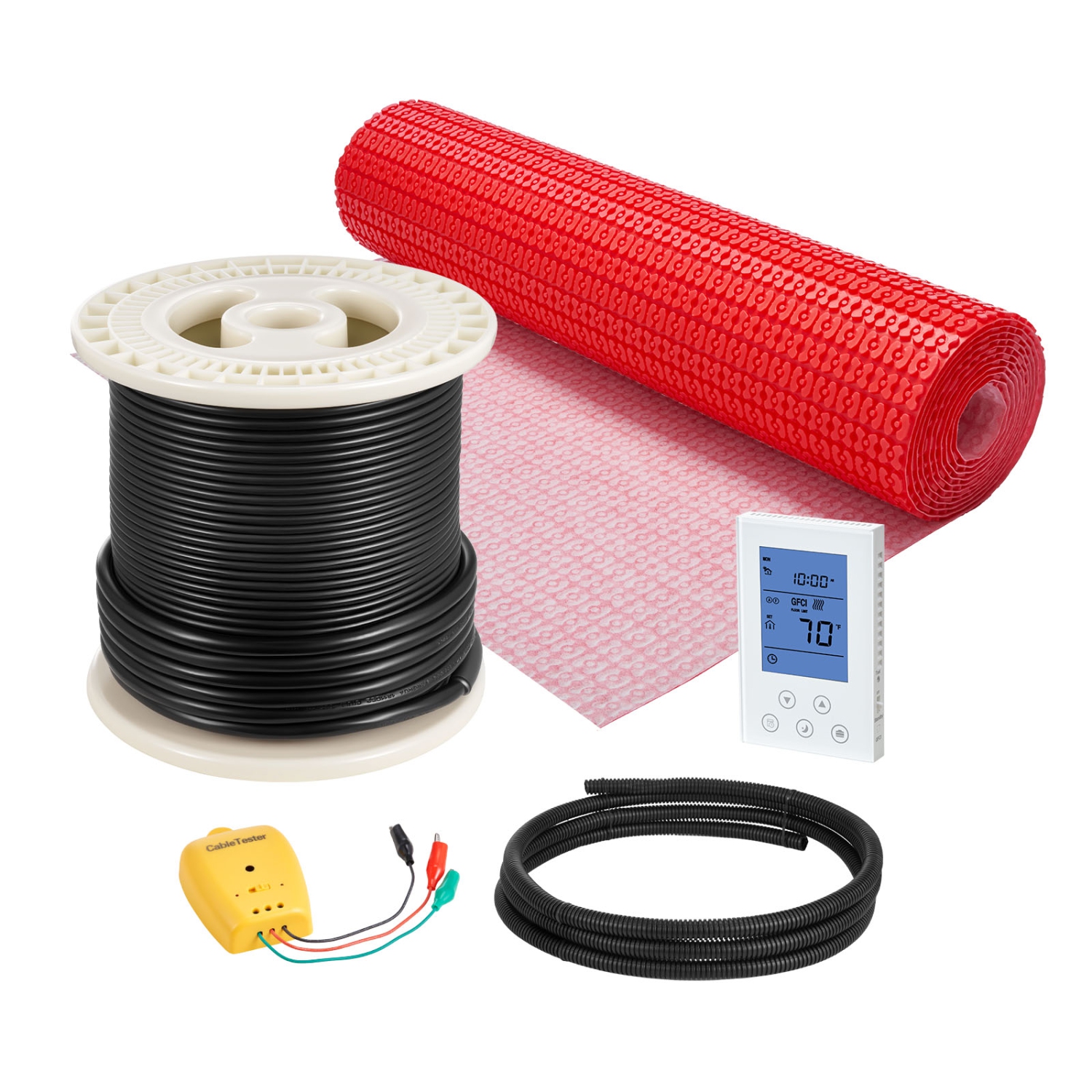

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

Floor Heater x 1

Decoupling Pad x 1

Cable x 1

Corrugated Pipe (3 meters) x 1

Alarm x 1

Thermostat x 1

User Manual x 1

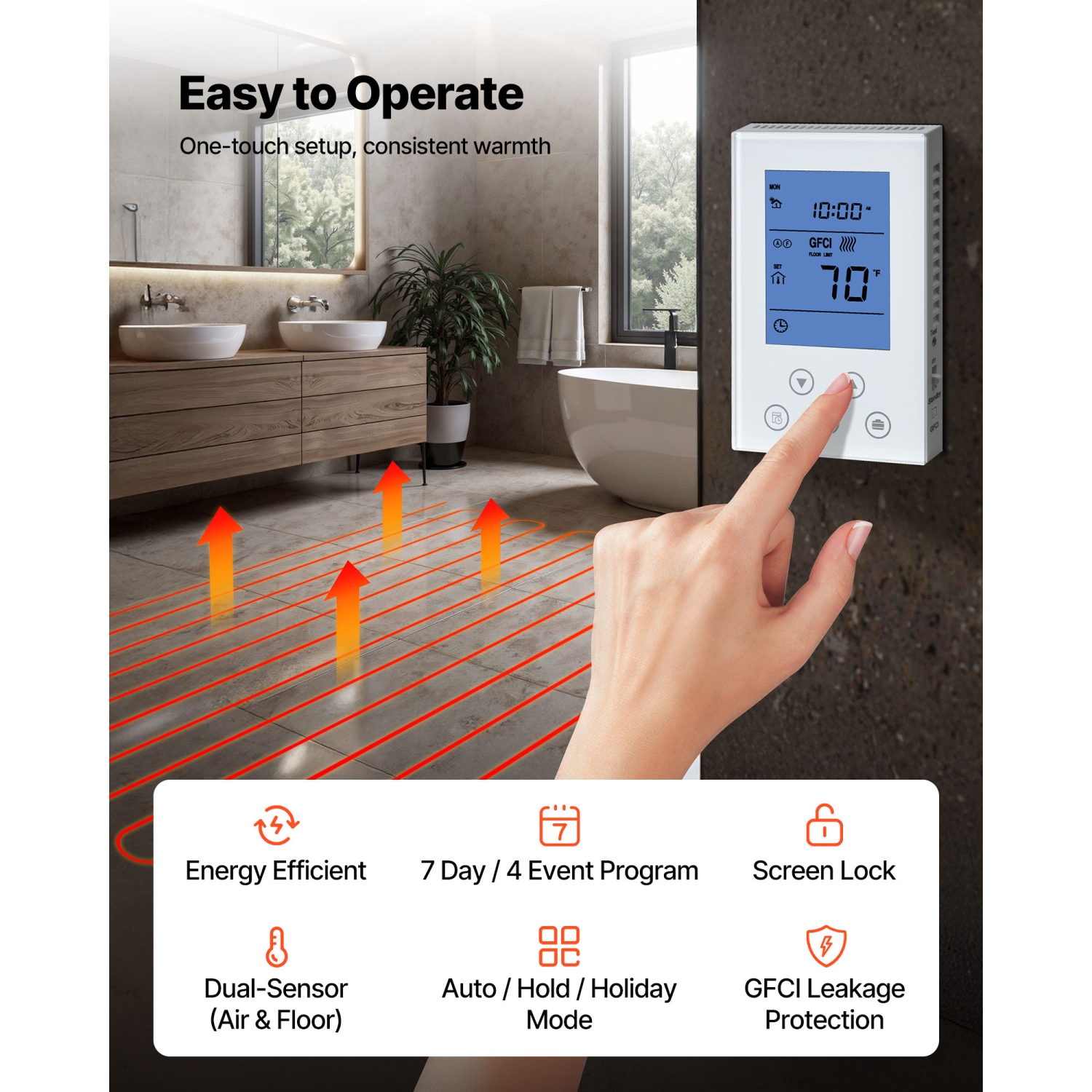

· Smart Thermostat with Full Control: This 15A programmable thermostat with GFCI protection offers a 41°F–98.6°F (5°C–37°C) range, 7-day scheduling, 4 events/day, screen lock, dual-sensor monitoring (air & floor), for efficient, precise heating

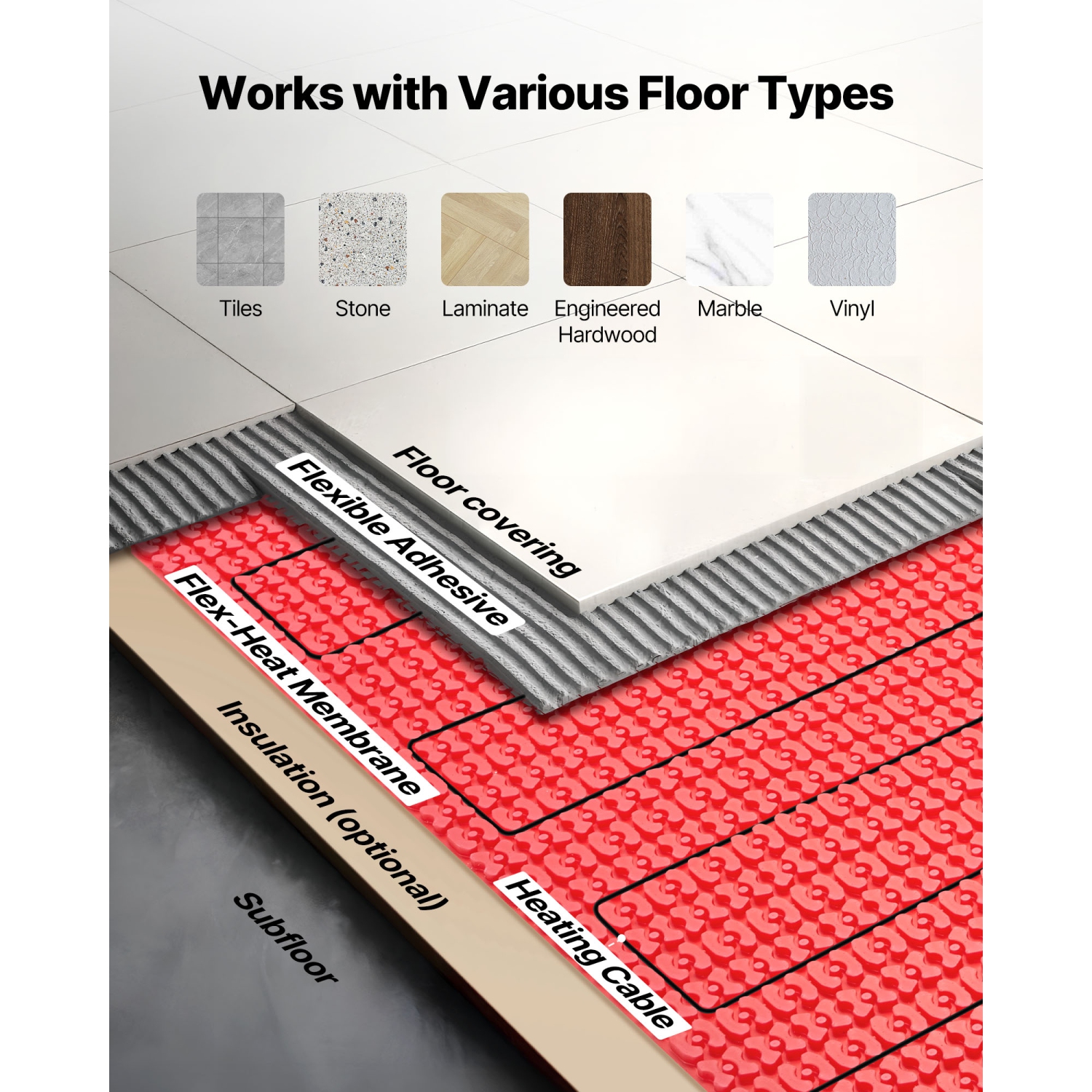

· Flexible & Secure Mat Design: The free-form underfloor heating cables offers ultimate design flexibility, making them compatible with tile, natural stone, laminate, and wooden floors

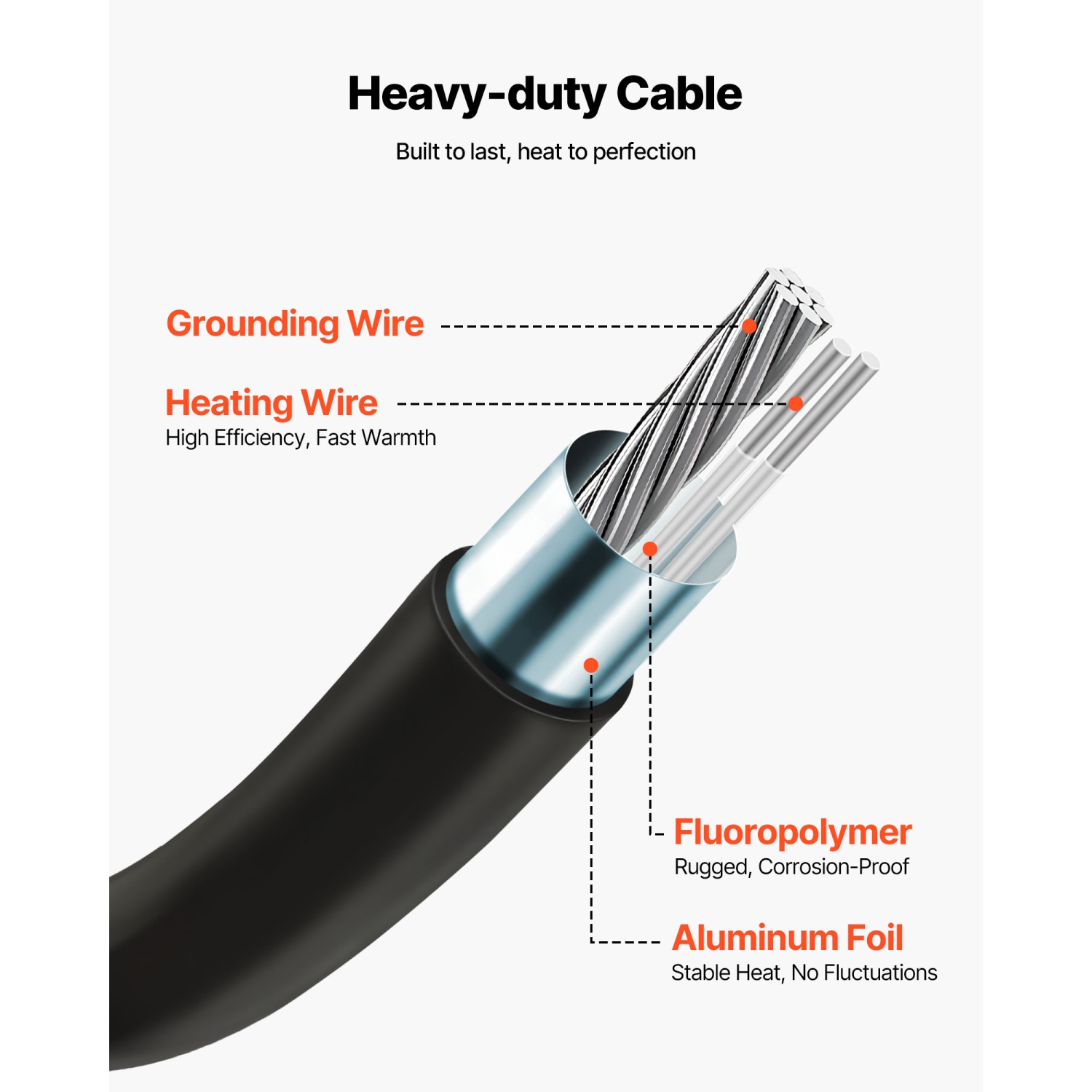

· Professional Security Certification: Dual-layer protection with aluminum shield avoids signal interference and ensures heat distribution, plus a grounding wire for leak-proof operation. Low-wattage design (12W/sq.ft.) for energy-efficient homes

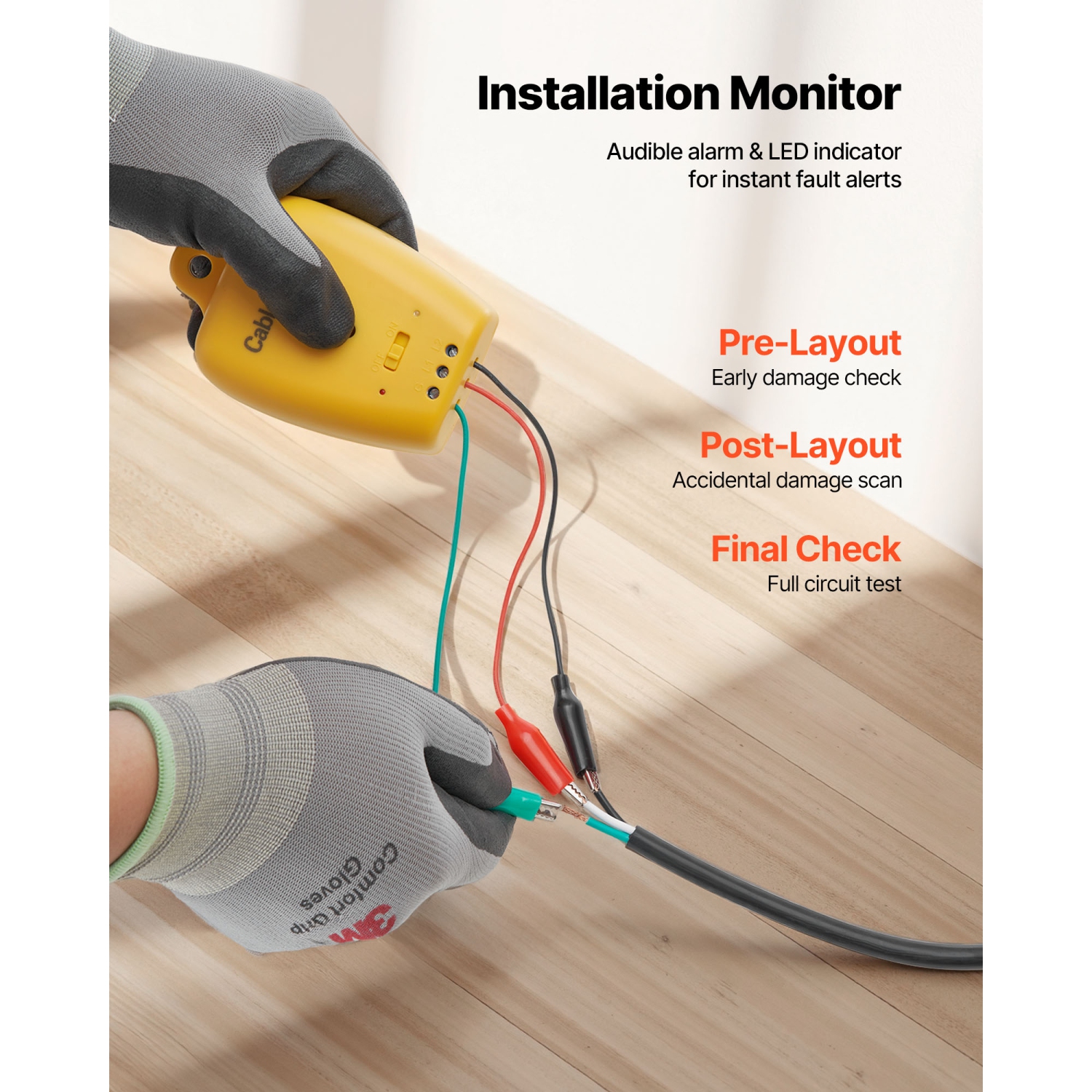

· Monitoring System: The installation monitor ensures correct underfloor heating cable function, avoiding extra purchases and re-pouring concrete. This process enhances accuracy and system reliability for both DIY users and professionals

· Ultra-Thin All-In-One Kit: Installs seamlessly under tile or laminate, offering silent operation and anti-crack compatibility. The kit includes the heating mat, thermostat, floor sensor, and guides—no extra parts needed. Ideal for wet/dry rooms, providing seamless warmth
