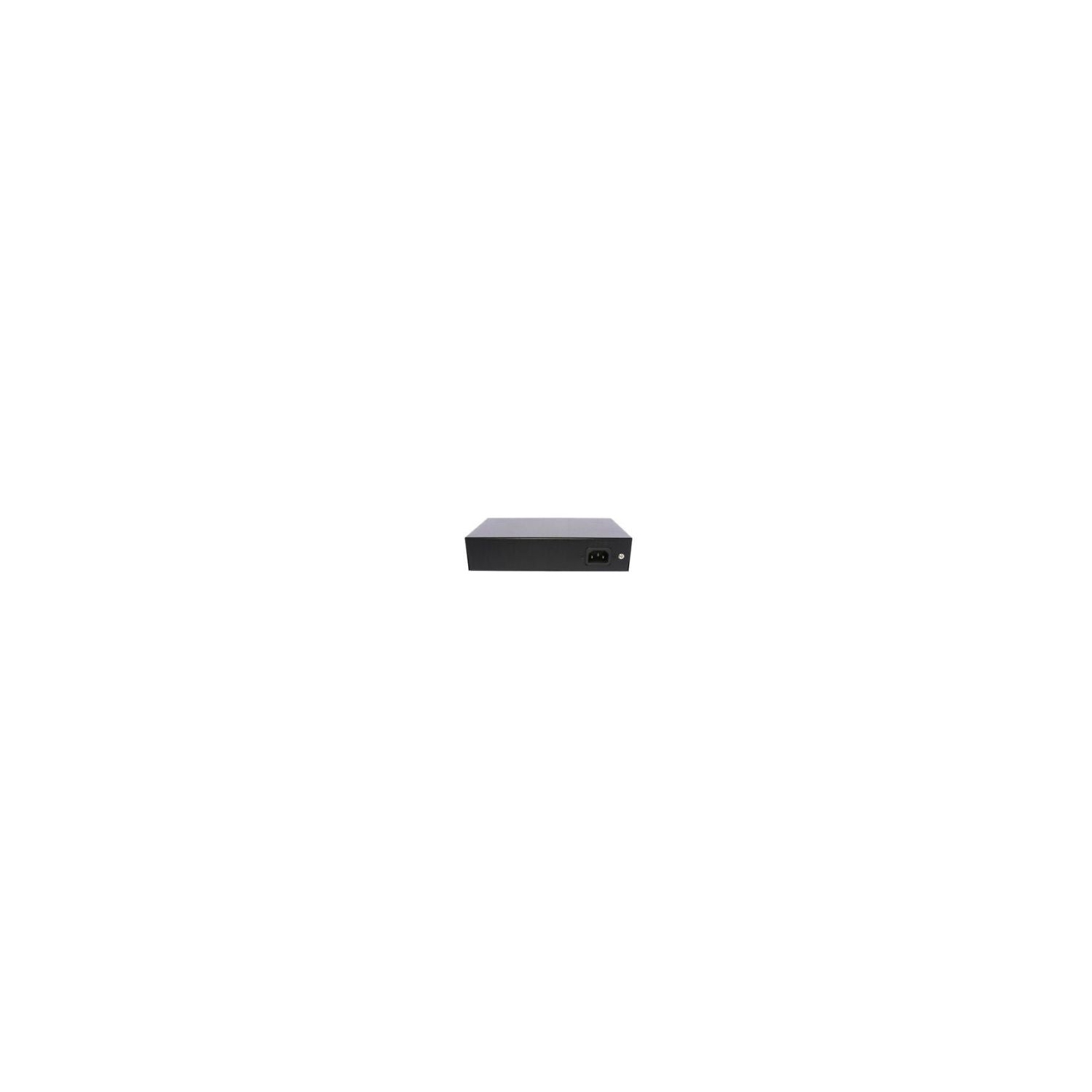

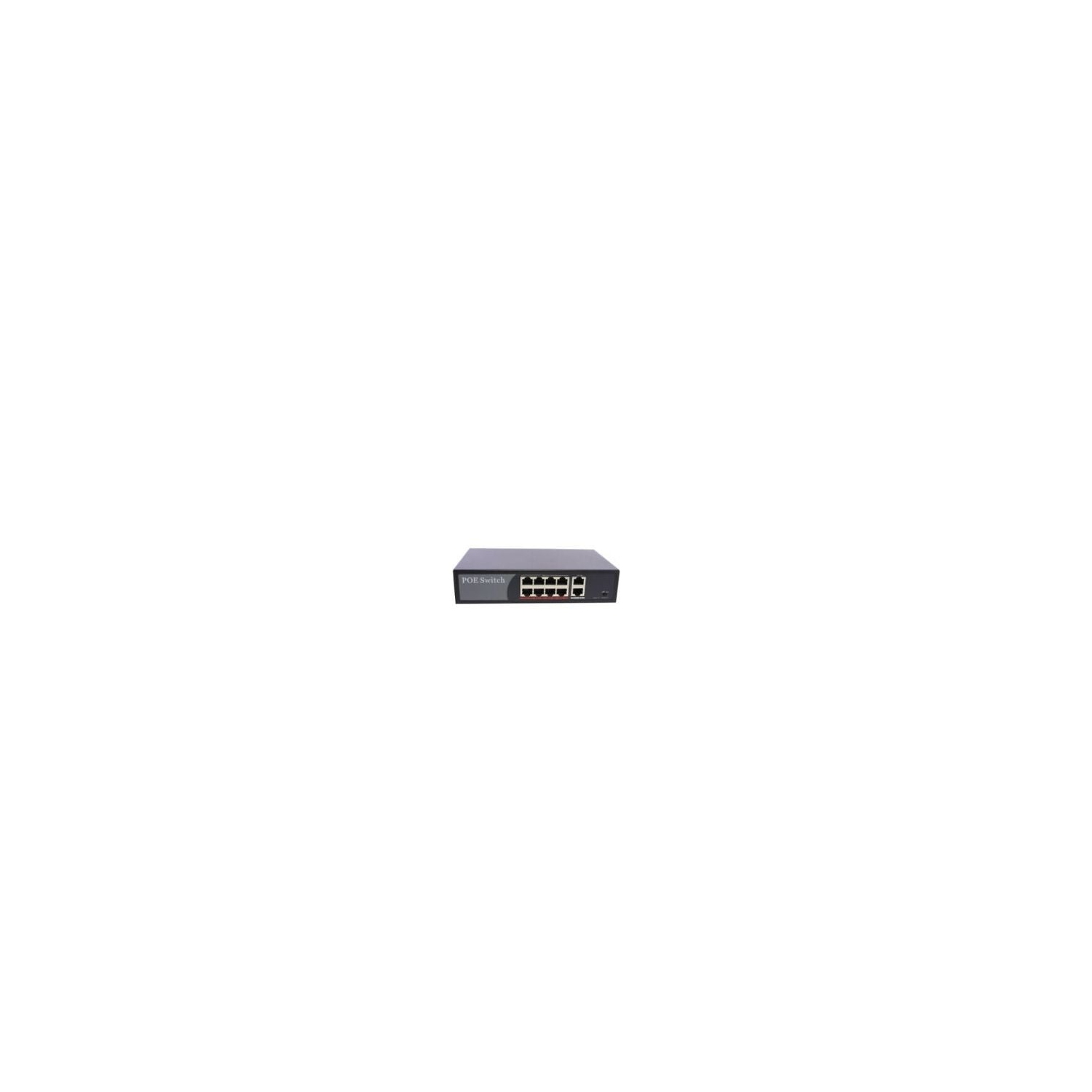

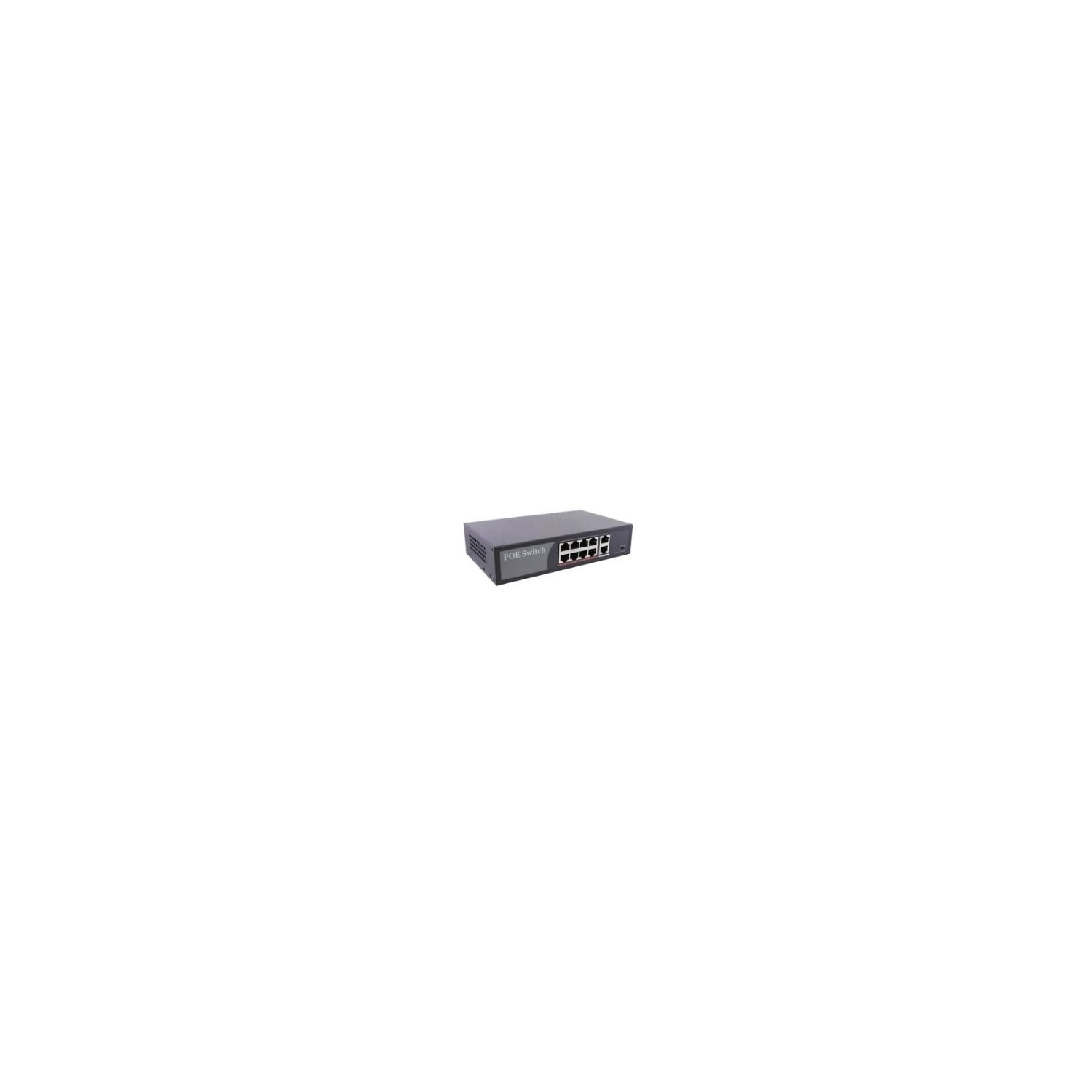

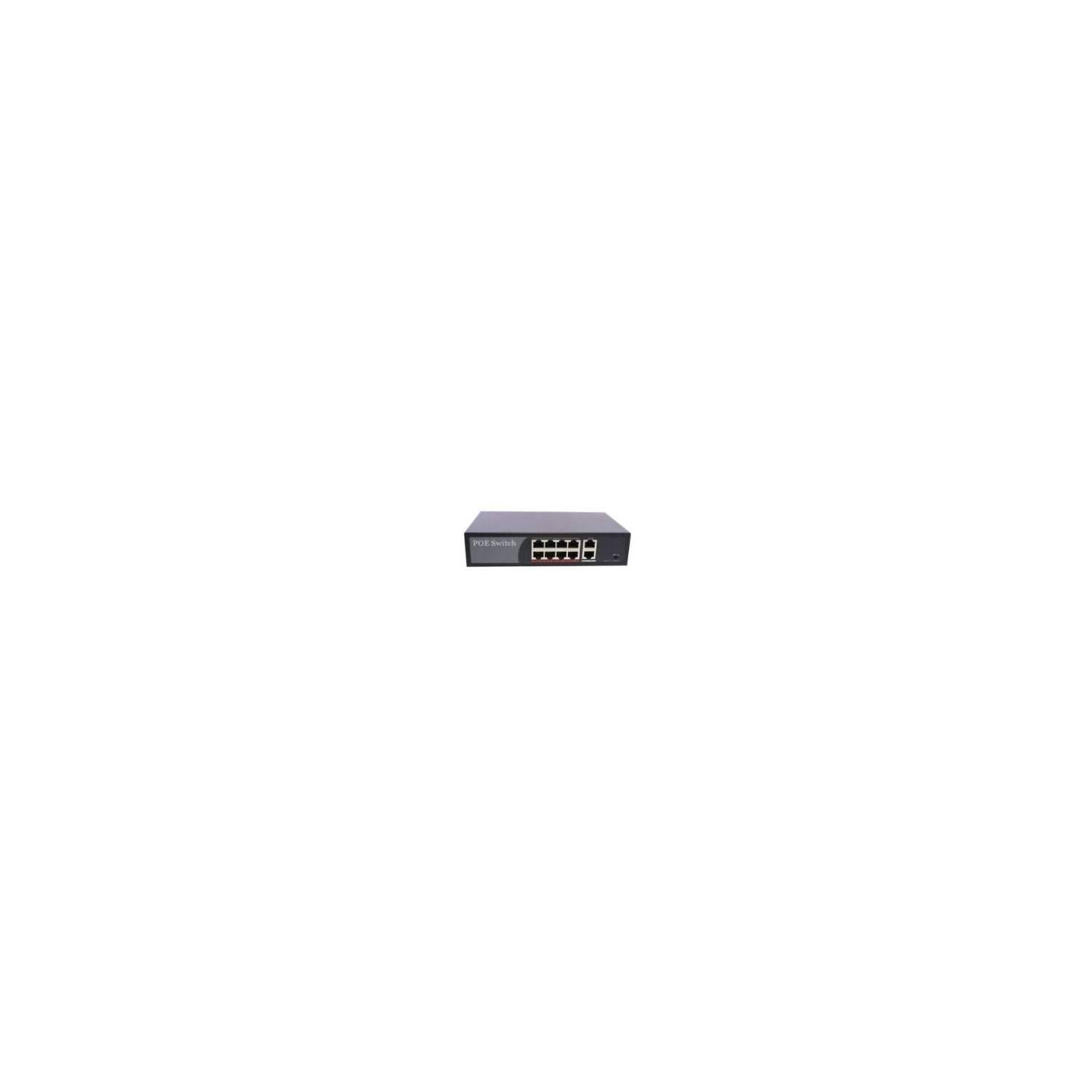

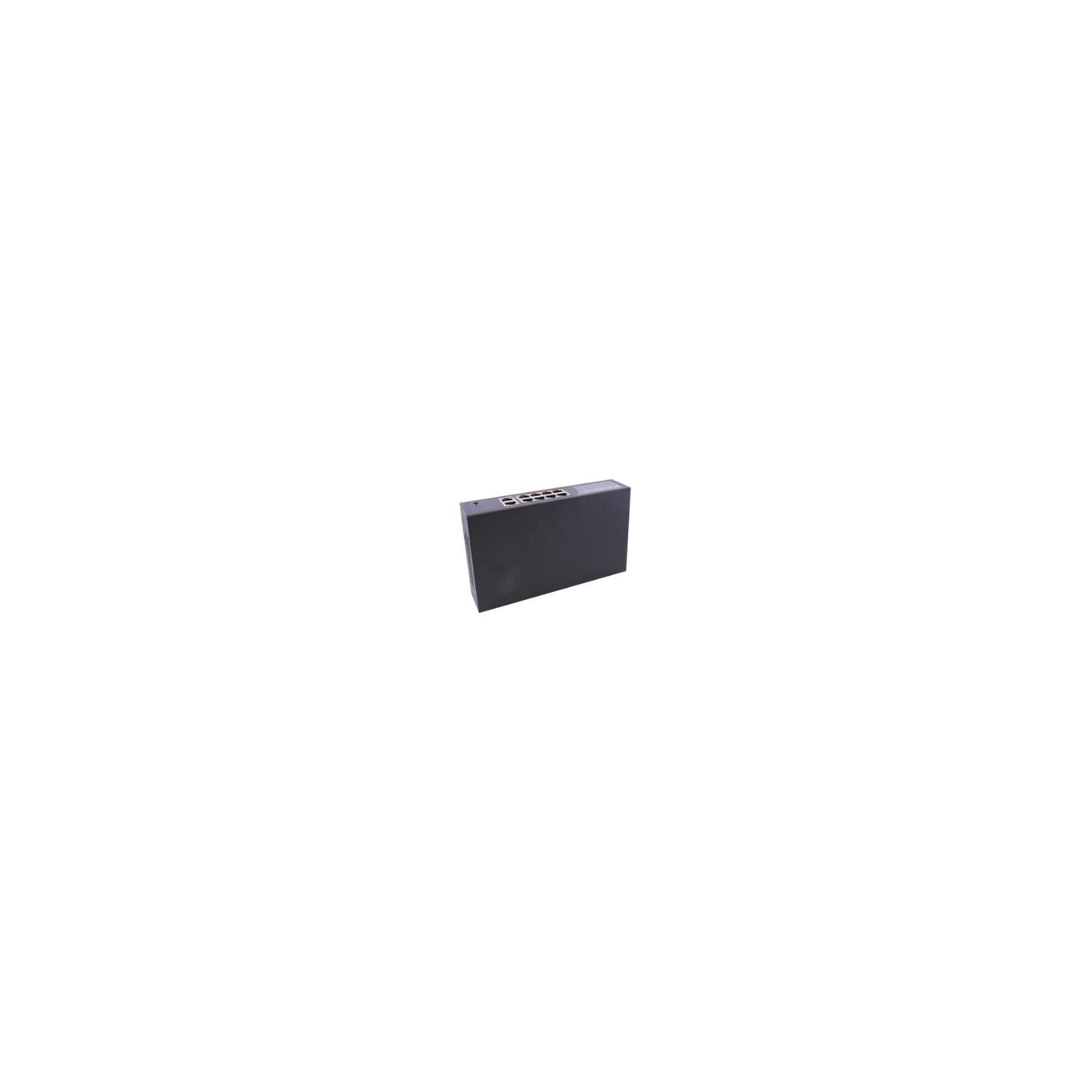

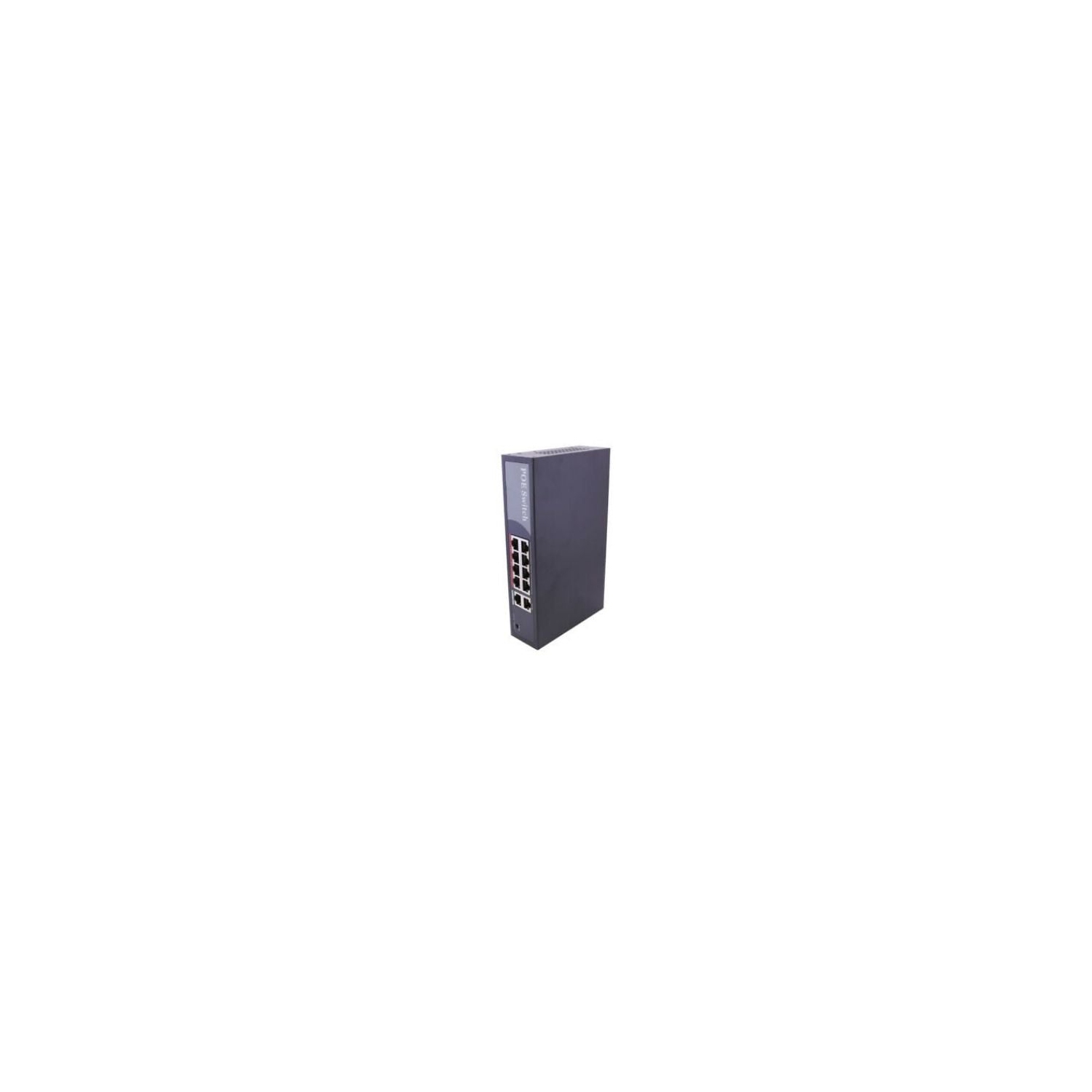

10 Port Gigabit Switch with 8 Port POE and 2 Port Gigabit Uplink

Description:

Includes 8 POE ports(10/100/1000Mbps) and 2 Gigabit UpLink ports(10/100/1000Mbps). The 2 uplink ports can be connected to different devices, such as routers, NVRs, etc.

Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at, each port max power supply reached 30W.

Support Power Detection function, automatically detect devices, can be compatible with non-POE devices to provide data connectivity. Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, can be used without configuration.

When turn on the extend mode, the POE port can be extended to 250 meter distances and 10Mbps speed, and ports are isolated from each other, improve the network safety.

Small and compact size design. Durable Metal housing. LED indicator lights. Widely used in IP cameras, Wireless Access Point, Computer Networks devices, etc.

Features:

Ethernet port configuration: 8 PoE ports with 120W total power budget.

Flexibility from uplink ports: management software with easy-to-use GUI interface offers refined control for secure setup, access, and SNMP (nms 300) management

Silent operation: the fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

Energy efficient: designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802. 3az energy efficient Ethernet mode

Built to last: every network switch is rigorously tested for reliability, quality, and performance

Specifications:

PoE Port: 8x10/100/1000Mbps

UpLink Port: 2x100/1000Mbps

POE Power Output: 120W

Switch Capacity: 10Gbps

Port 1-8 compatible with IEEE802.3af/at standard power supply.

Meets the standards of the IEEE 802.3af / IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab

Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.

Network Port has lighting-proof function.

Package Included:

1 x 10 Port POE Switch

1 x Power Adapter
