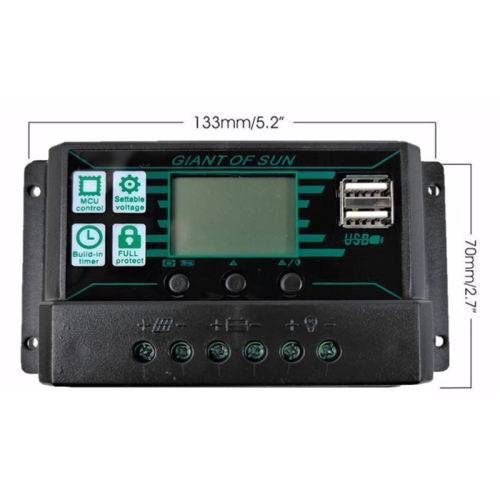

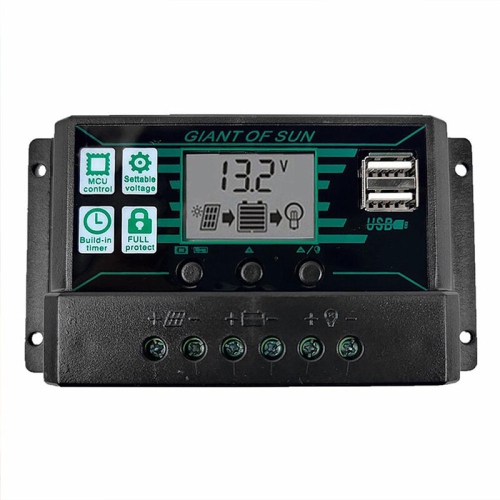

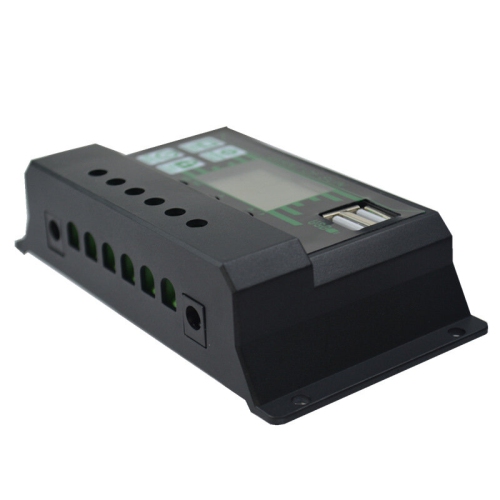

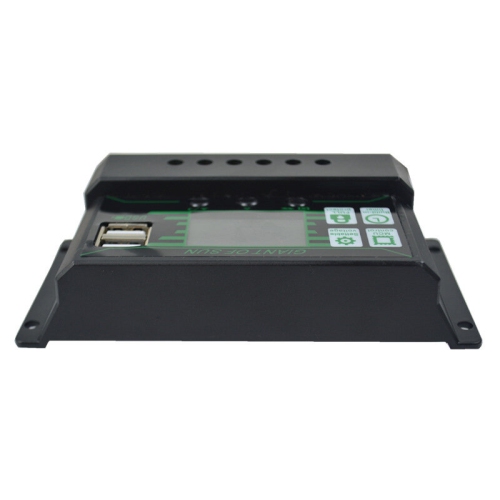

12V/24V 10A-100A LCD Solar Controller Dual USB DC Port Current Solar Charge Cotroller

Main Features: ◠Real-time display of temperature, charging current and discharge current. ◠Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking. ◠Charge 12V /24V lithium battery, super wide charge and discharge adjustable. ◠The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available). ◠Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. ◠Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat. ◠R5.0 solar charging DC plug, R5.0 DC lamp output DC plug, easy to connect. Specification Name: LCD Solar Controller Main color: black Main material: ABS Voltage: DC 12V / 24V Rated current: 10A/20A/30A40A/100A (optional) Maximum photovoltaic voltage: 50V Display: LCD screen Self-consumption: <10MA Overcharge protection: 14.4V / 28.8V Overcharge Float charge: 13.7V / 27.4V Charge recovery voltage: 12.6V / 25.2V Over discharge protection: 10.7V / 21.4V Over discharge recovery: 12.6V / 25.2V Dual USB output: 5V / 2A (charge mobile phone, etc.) Working temperature: -35 ℃ -60 ℃ 12V fits 18V solar panel, 24V fits 36V solar panel Product size: about 133.5X70X35mm /5.26''X2.76''X1.38' Product weight: about 155 g / 5.5 oz 1. Always keep the battery on fill voltage condition. 2. Prevent the battery from over-charging. 3. Prevent the battery from over-discharging. 4. Prevent the battery from reverse charging to solar panels during nights. 5. Reverse Polarity Protection for Battery 6. Reverse Polarity Protection for Solar Panels 7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. 8. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot adjust.) <p class='MsoNormal' style='margin: 0pt; text-indent: 0pt; line-height: 150%; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; bac</p>
