60W Commercial Music Amplifier | Bluetooth, MP3 & FM Tuner

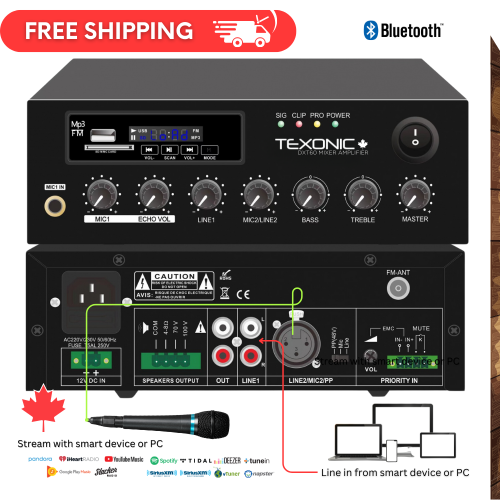

The DXT Series combines pre-amplification and power amplification, with a compact desktop design that supports 70V/100V speaker systems, as well as 4 Ohm and 8 Ohm outputs. The front panel offers easy control with USB/SD inputs for MP3 playback, an LED display for source selection, and individual volume controls for each input. With Background Music (BGM), Music On Hold (MOH) for emergency announcements, and priority microphone settings, this amplifier offers both flexibility and performance.

FEATURES:

+ Compact design with 70V/100V transformer technology

+ MP3 playback, FM radio, Bluetooth connectivity

+ 60W power output

+ Supports 70/100V, 4 Ohm, 8 Ohm speaker outputs

+ Front panel USB/SD inputs with IR remote control

+ LED indicators for power, clipping, protection, and signal presence

+ Removable screw-down Phoenix connectors

+ Individual volume, bass, and treble controls

+ Line out for external subwoofer or amplifier connection

+ Protection against short-circuit, overload, and overheating

SPECIFICATIONS:

+ Rated Power Output 60W

+ Speaker Outputs 100V or 70V & 4-8 Ohm

+ Connector: - Mic1 of 6.3mm Jack on front panel. - Mic/line2 switchable input balanced XLR with +48V phantom power. - Line1 input of RCA input. - RCA line output. - With mute and EMC input from fire alarm system

+ Input MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA

+ Line Out 0.775(0dBV)

+ Frequency Response 60Hz-15kHz(±3dB)

+ S/N Ratio Line ≥ 85dB, Mic≥ 72dB

+ THD Less than 0.5%

+ Protection Short-circuit, clip, overload and high temp protection

+ Power Consumption 80W

+ Power Supply 110/240V AC & 24VDC; 50-60Hz

+ Dimension 22 x 20 x 7.2 cm (8.66 x 7.87 x 2.83 in)

+ Weight 2.6kgs (5.7lbs)

GENERAL:

+ With desktop design, elegant appearance, and lightweight.

INCLUDED:

+ Instruction Manual

+ 1 x DXT 60W amplifier

+ Indoor FM Antenna

+ Remote Control

+ AC Power Cord

***The microphone is displayed for demonstration purposes and is not included with this amplifier; it is sold separately.

**Commercial amplifiers: Must be in original condition to proceed with the return. If the manufacturing seal is open, we will not accept the return unless there's a manufacturing defect.
