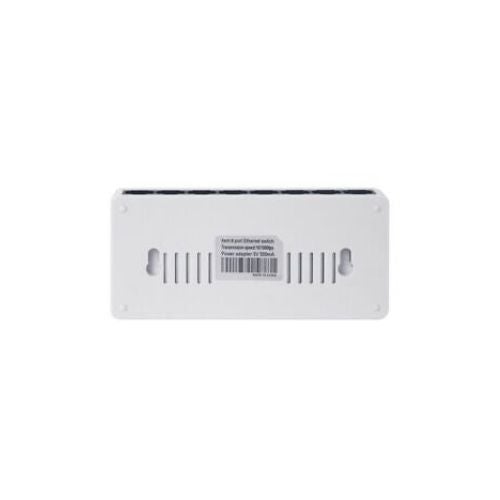

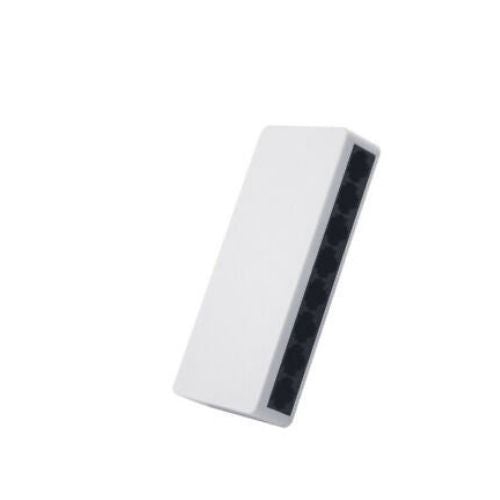

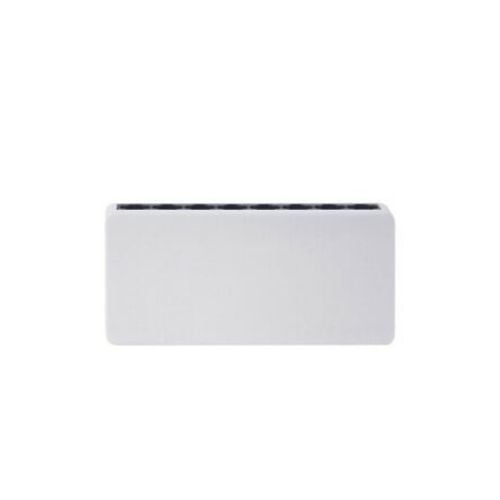

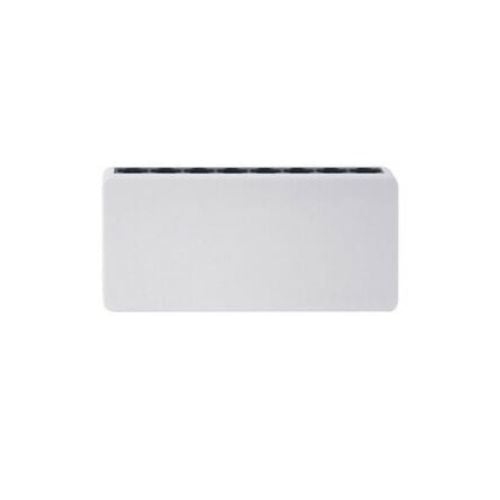

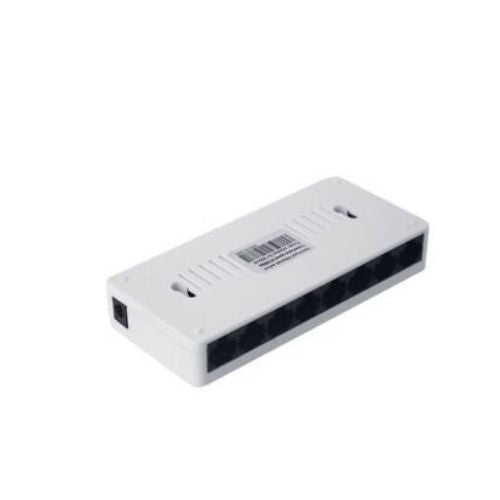

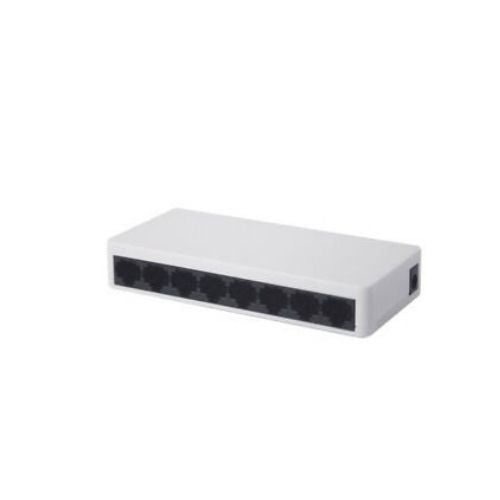

8 Port 10/100Mbps Fast Ethernet Switch/MINI/Desktop Ethernet Splitter Hub

Model: ced_42266447610101
Web Code: 15943249
Sold and shipped by | 4.6 seller rating (126 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Description:

8 port Embedded 10/100 PHY Switch Controller

Support 8 100BaseTX or 6 100Base TX + 2 FX

Support Auto MDI-MDIX function

Power Management Tool (PWMT®): APS, auto-power saving while Link-off, IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps, WOL+®, light traffic power saving, PWD, force-off power saving

Features:

Support Auto Factory Test (AFT®), Single Power 3.3V supply

Built in Vcore Regulator, Two Priority queues per port, Support 802.1p & DiffServ based QoS

QoS: Port base,802.1p, IP DiffServ IPV4/IPV6, TCP/UDP port number, Pins configure ports priority (VIP port)

Support max forwarding packet length 1552/1536 bytes option

Support port mirror function, Support 1k MAC address

Support broadcast storm protection

Support port trunking (LACP)

Support 16 VLAN (IEEE Std 802.1q): Port-based/Tagged-based VLAN, Support insert, remove tag

Built-in 50 ohm resistors for simplifying BOM: 85nm Process, Package and operation temperature, IP178G: 68 Pin QFN, 0~70℃

Specifications:

Port number: 8 port 10/100M RJ45

Standard: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az

Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate: 10/100M

Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: 10/100Mbps(Link/Act) and Power

Dimension: 123 x 56 x 21mm

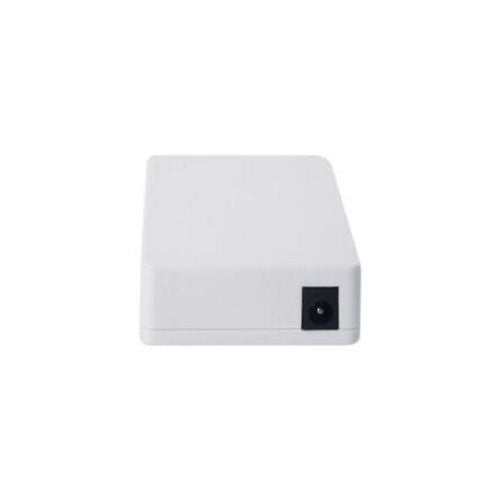

Power Input: DC5V/500mA

Power Consumption: Max1.5W

Environment:

Operating Temperature: 0 ℃-40 ℃

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40℃-70℃

Relative Humidity: 5%-90%(non-condensing)

Package Included:

1 x 8 Port Network Switch

Product Condition
Brand New
Network Cable Type
Ethernet Cable
